CAME BXV Series User Manual

p. 19 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

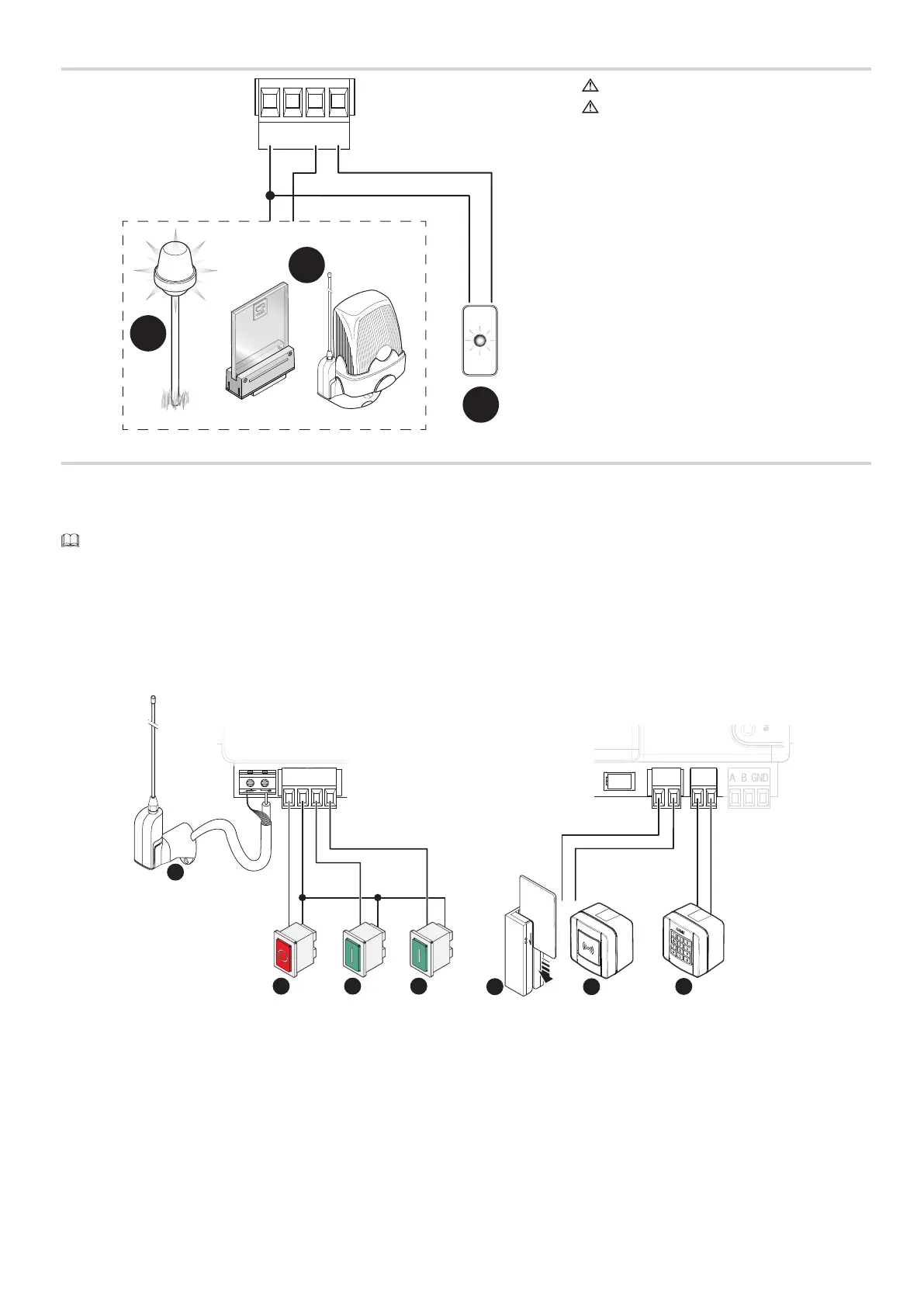

Signalling devices
1
2
3
10 11 E 5
Maximum contact capacity 10 - 5 24 V AC/DC - 3W
Maximum contact capacity 10 - E 24 V AC/DC - 25
W
1 - Additional light
Increases the lighting in the manoeuvring area.
2 - Additional flashing light
It flashes during the operator opening and closing phases.
3 - Operator status warning light
It warns of the operator status.
Command and control devices
1 - Antenna with RG58 cable
2 - STOP button (NC contact)
It stops the gate and excludes the automatic closing. Use a control device to resume movement.
If the contact is not used, it must be deactivated during the programming.
3 - Control device
OPEN ONLY or PARTIAL OPENING function
It allows complete or partial opening of the gate.
4 - Control device
OPEN-CLOSE (step-step) or OPEN-STOP-CLOSE-STOP (sequential) function
5 - Card reader
6 - Transponder selector switch
7 - Keypad selector
A B GND
A B
S1 GND
10 11 E 524 0
M N
+ E -
FC FA F
10 TS 2 CX CY
1 2 3P 7
2 3 4
7
65
1

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
