CAME BXV Series User Manual

p. 11 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

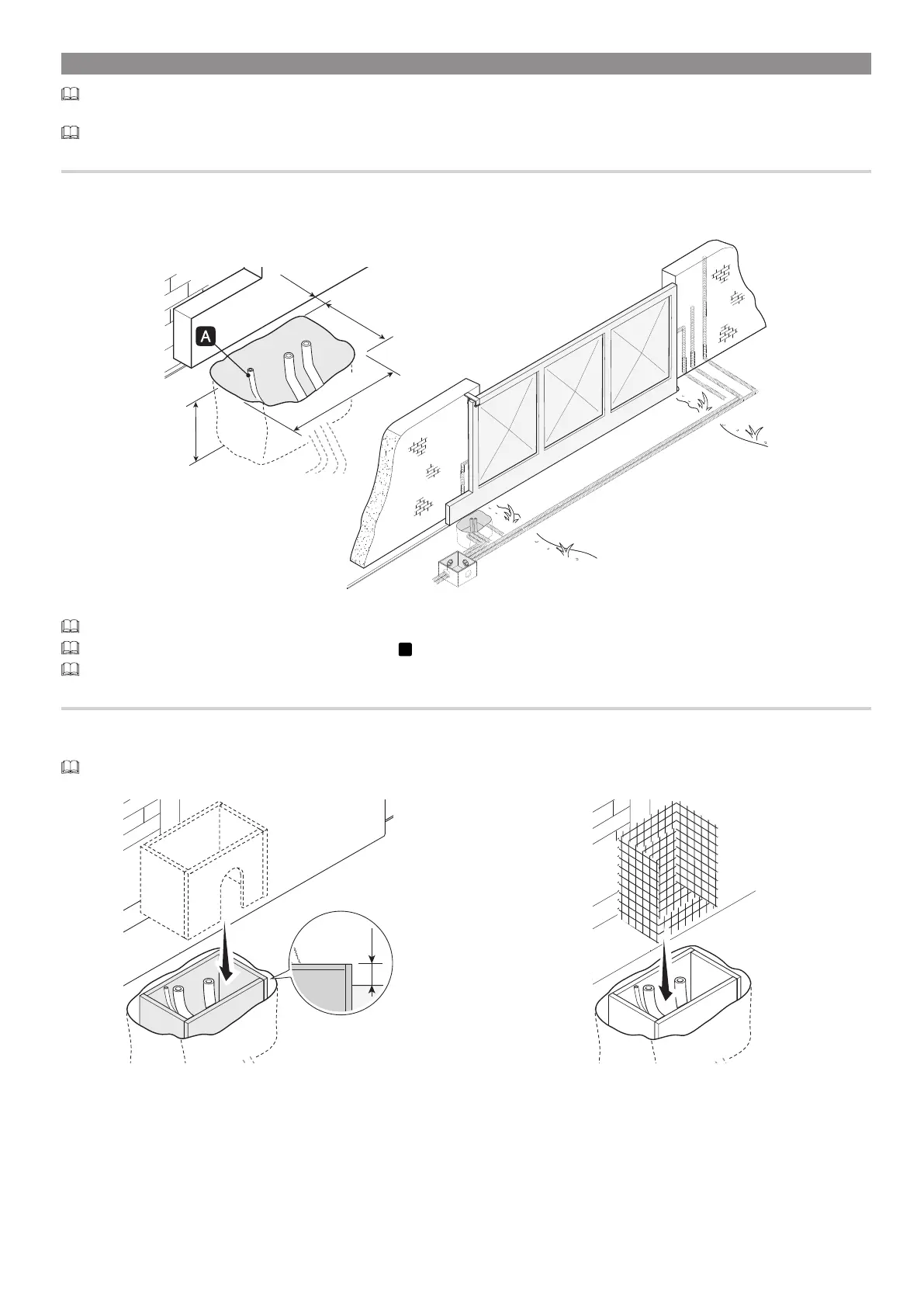

INSTALLATION
The following illustrations are mere examples. Consider that the space available where to fit the barrier and accessories will vary depending on the area
where it is installed. It is up to the installer to find the most suitable solution.
The drawing show an operator fitted on the left.
Preliminary operations
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for the wiring coming out of the junction pit.
240
400
800
40
For connecting the gearmotor we suggest using a Ø 40 mm corrugated tube, whereas for the accessories we suggest Ø 25 mm tubes.
Set up a Ø 20 mm tube for running through the release cord.
a
The number of tubes depends on the type of system and the accessories you are going to be fit.
Laying the anchoring plate
Set up a foundation frame that is larger than the anchoring plate.
Fit the foundation frame into the dug hole.
The foundation frame must jut out by 50 mm above ground level.
Fit an iron cage into the foundation frame to reinforce the concrete.
50

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
