CAME BXV Series User Manual

p. 18 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

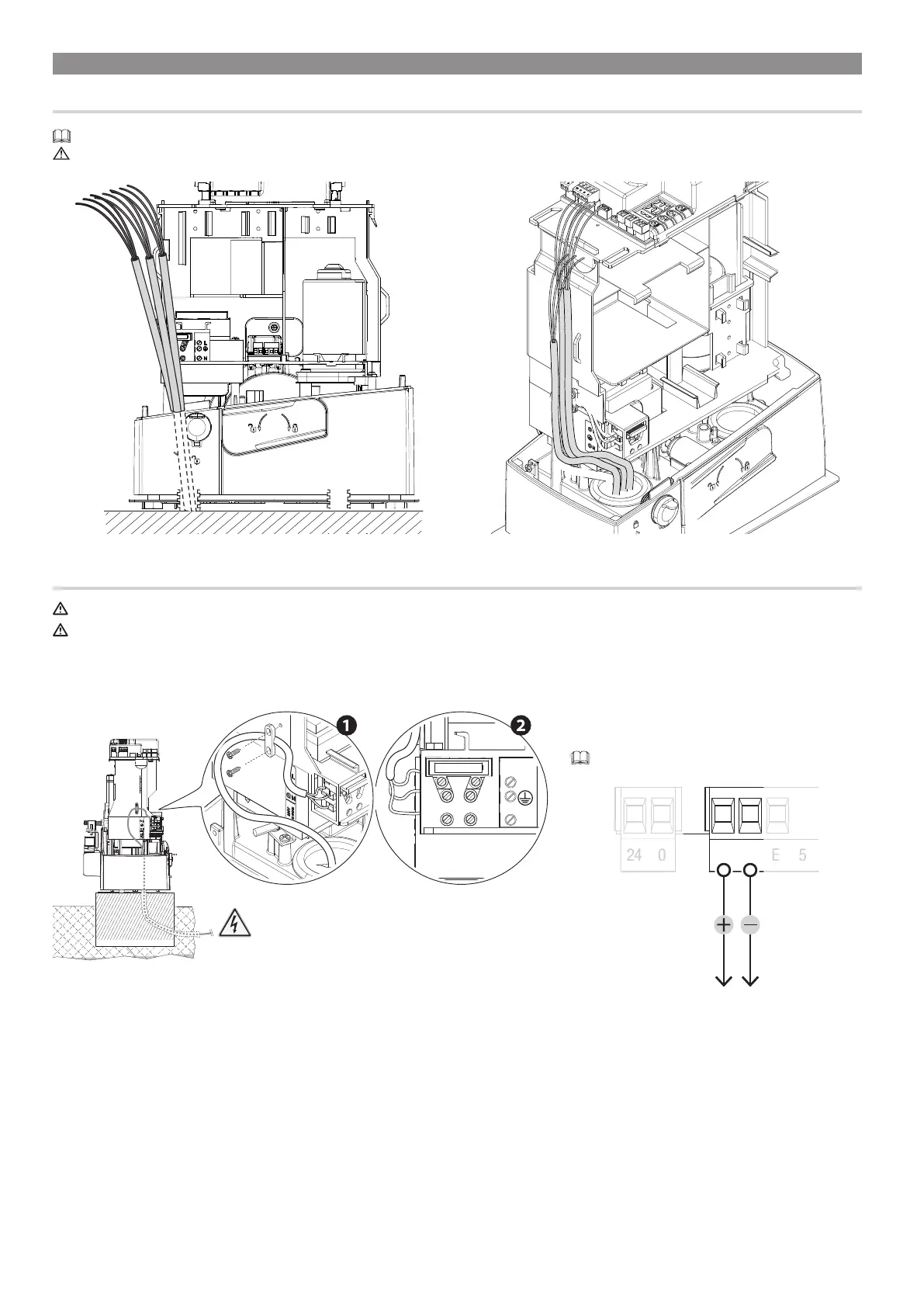

ELECTRICAL WIRING
Electric cables passage
Connect all wires and cables in compliance with the law.
The electrical cables must not touch any parts that may overheat during use (such as the motor and transformer).
Input voltage
Make sure the mains power supply is disconnected during all installation procedures.
Before working on the control panel, cut off the mains power supply and remove any batteries.
Connection to the power grid (120/230 V AC - 50/60 Hz)
110 / 230 V AC - 50/60 Hz
L
N
Accessories power supply output
Output delivers normally 24 V AC.
The output delivers 24 V DC when the batteries start
operating.
The sum of the connected accessories input must
not exceed the 40W.
10 11 E 524 0

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
