CAME BXV Series User Manual

p. 6 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

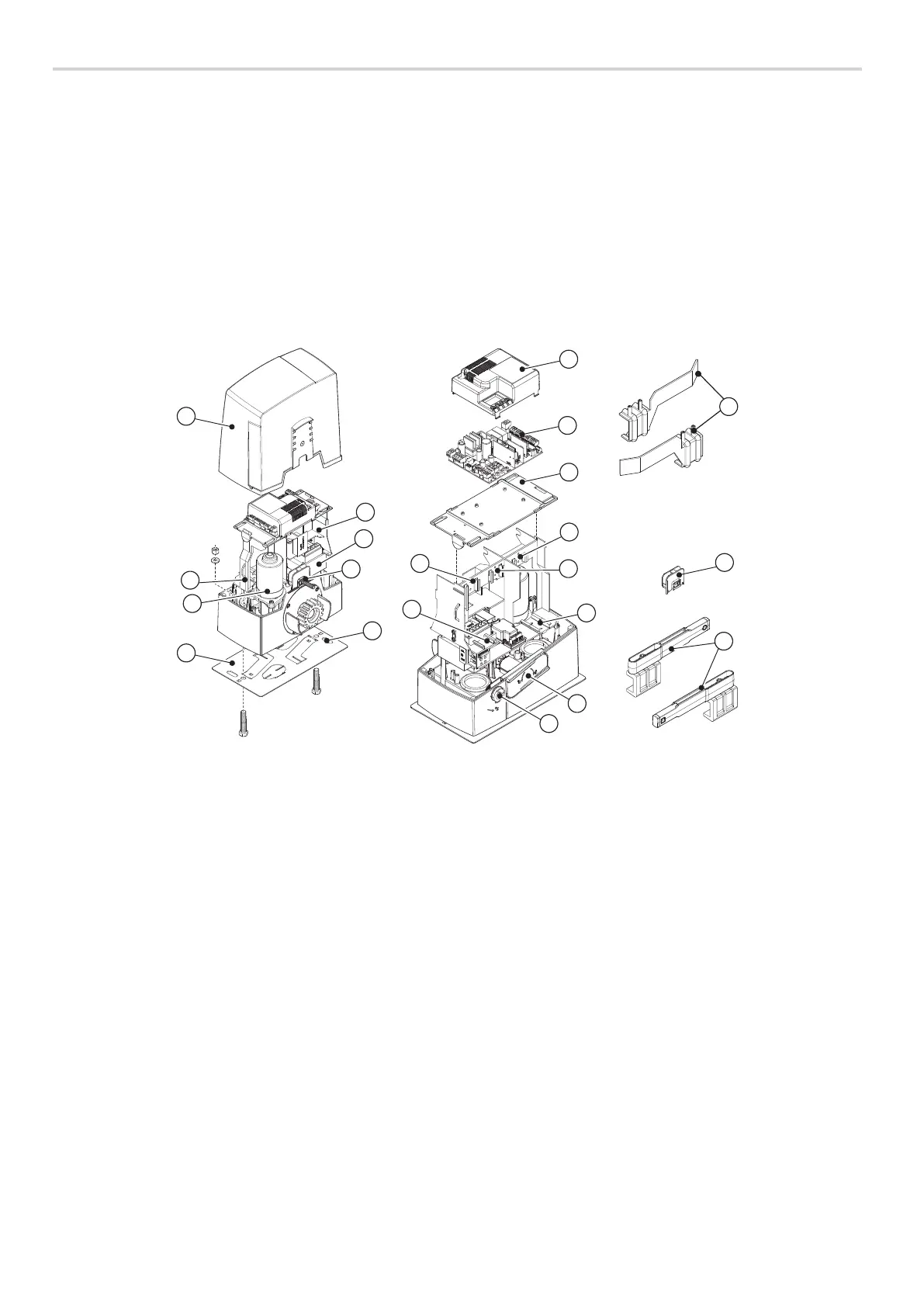

Description of parts
Operator
1 -Cover
2 -Board-fitting support
3 -Gearmotor
4 - Anchoring plate
5 - Housing for two emergency batteries
6 - Transformer
7 - Mechanical limit switch
8 - Hole for the passage of the release cord
9 - Housing for the RGP1 module
10 - Housing for thermostat with cartridge
11 - Board protecting cover
12 - Control board
13 - Control board rack
14 - Housing for the RLB card
15 - Housing for the UR042 module
16 - Housing for SMA or RGSM001 sensor
17 - Release lever
18 - Lock
19 - Mechanical limit switch fins
20 - Magnetic limit switch *
21 - Magnetic limit switch fins *
* Only for BXV06AGM BXV10AGM
1
11
3
4
10
2
12
13
14
15
16
17
18
9
5
6
7
8
21
20
19

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
