CAME BXV Series User Manual

p. 20 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

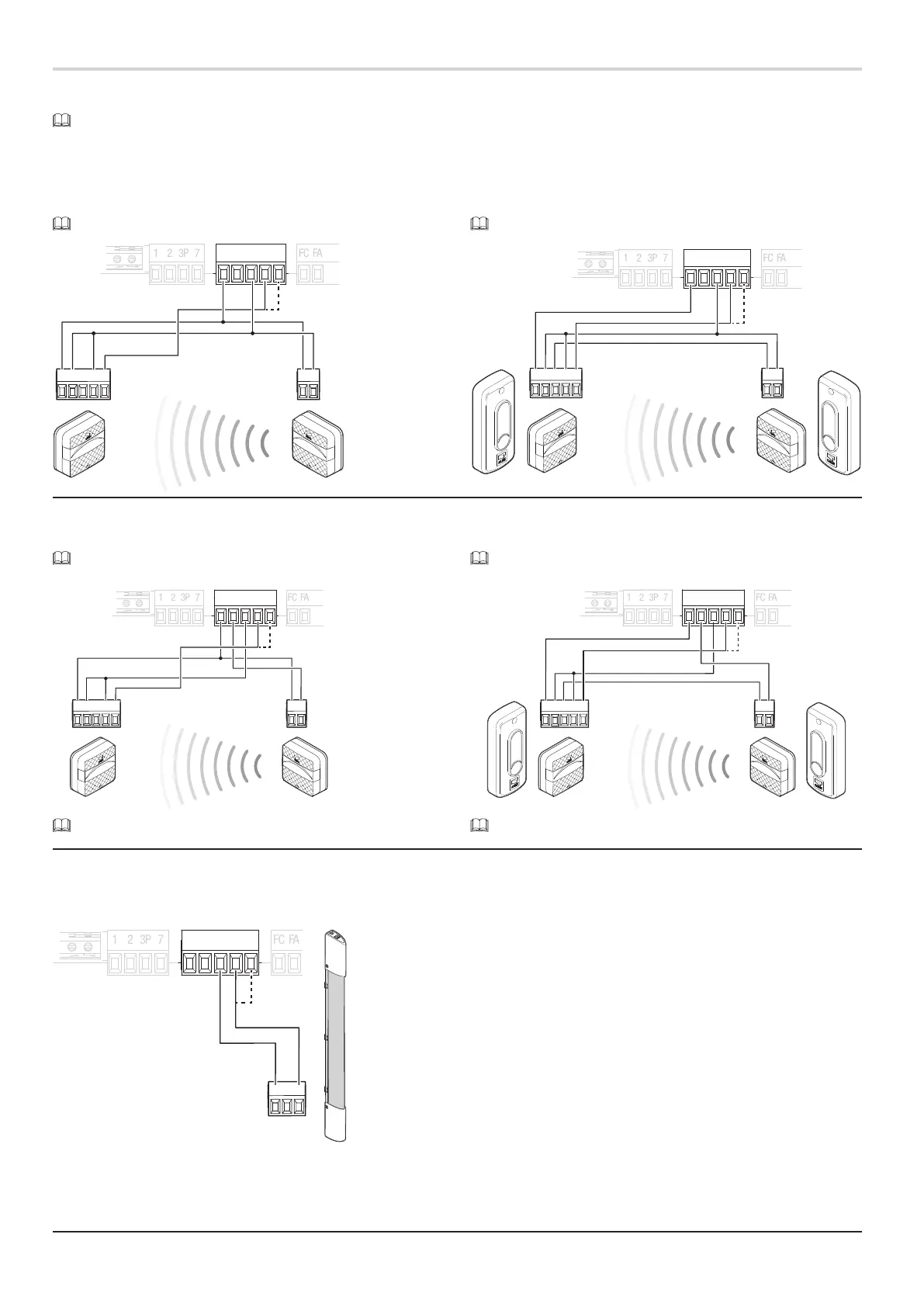

Safety devices
During programming, configure the type of action that must be performed by the device connected to the input.
Connect the safety devices to the CX and/or CY inputs.
If contacts CX and CY are not used they must be deactivated during programming.
Photocells
Standard connection
DELTA photocells
Only one pair of photocells can be connected.
FAFC10 TS 2 CX CY1 3P2 7
+
10
-
11 NO C NC
+
10
-
11
RX TX
Standard connection
DIR / DELTA-S photocells
Multiple photocell pairs can be connected.
FAFC10 TS 2 CX CY1 3P2 7
+
10
-
2 TX C NC TX 2
RX TX
Connection with safety test
DELTA photocells
Only one pair of photocells can be connected.
FAFC10 TS 2 CX CY1 3P2 7
+
10
-
11 NO C NC
+
10
-
11
DELTA Collegamento test sicurezza
RX TX
See function F5, safety devices test.
Connection with safety test
DIR / DELTA-S photocells
Multiple photocell pairs can be connected.
FAFC10 TS 2 CX CY1 3P2 7
+
10
-
2 TX C NC TX 2
DIR / DELTA-S Collegamento test sicurezza
RX TX
See function F5, safety devices test.
Sensitive safety-edge
Standard connection
FAFC10 TS 2 CX CY1 3P2 7
C NO NC
DFWN

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
