PROGRAMMING

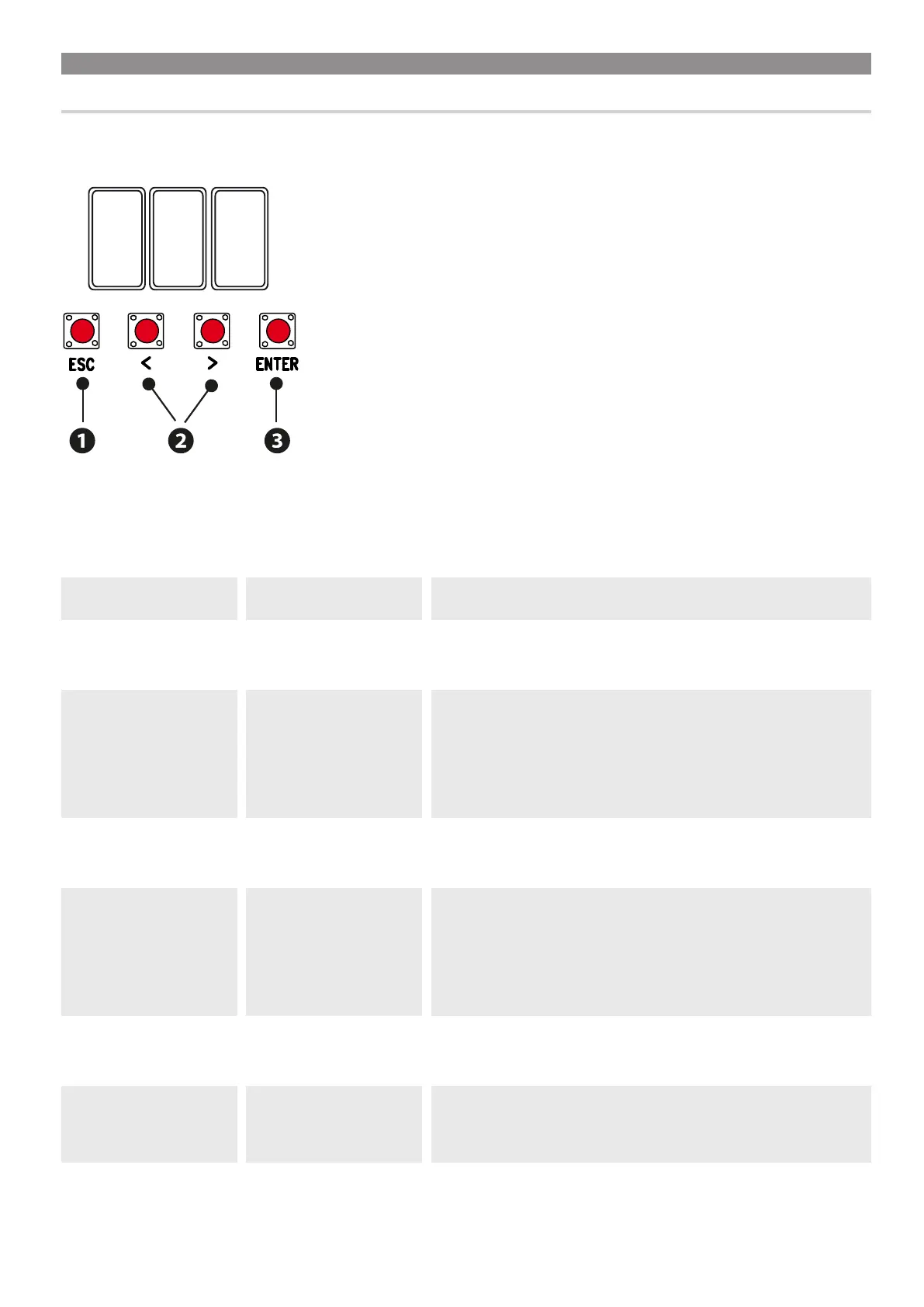

Function of the programming buttons
8 8 8
1 - ESC button
It is used to:
Exiting the menu
Delete the changes
Return to the previous screen
Stop the operator, when the operator is in operation mode
2 - < > buttons
For:
Navigate through the menu items
Increasing or decreasing values
Close or open the operator, when the operator is in operation mode
3 - ENTER button
It is used to:
Accessing menus
Confirm the choice
Total stop
It stops the gate and excludes the automatic closing. Use a control device to resume movement.
F1 Total stop OFF (Default)
ON
CX input
Associate a function with the CX input.
F2 CX input OFF (Default)
C1 = Reopening while closing (Photocells)
C2 - Reclosing while opening
C3 = Partial stop
C4 = Obstruction wait (Photocells)
C7 = Reopening while closing (Sensitive safety-edges)
C8 = Reclosing while opening (Sensitive safety-edges)
CY input
Associate a function with the CY input.
F3 CY input OFF (Default)
C1 = Reopening while closing (Photocells)
C2 - Reclosing while opening
C3 = Partial stop Only with [Automatic closing] activated.
C4 = Obstruction wait (Photocells)
C7 = Reopening while closing (sensitive safety-edges)
C8 = Reclosing while opening (Sensitive safety-edges)
Safety devices test
It activates the check of the correct operation of the photocells connected to the inputs, after each opening and closing command.
F5 Safety devices test 0 =Deactivated (Default)
1 = CX
2 = CY
4 = CX+CY

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
