CAME BXV Series User Manual

p. 12 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

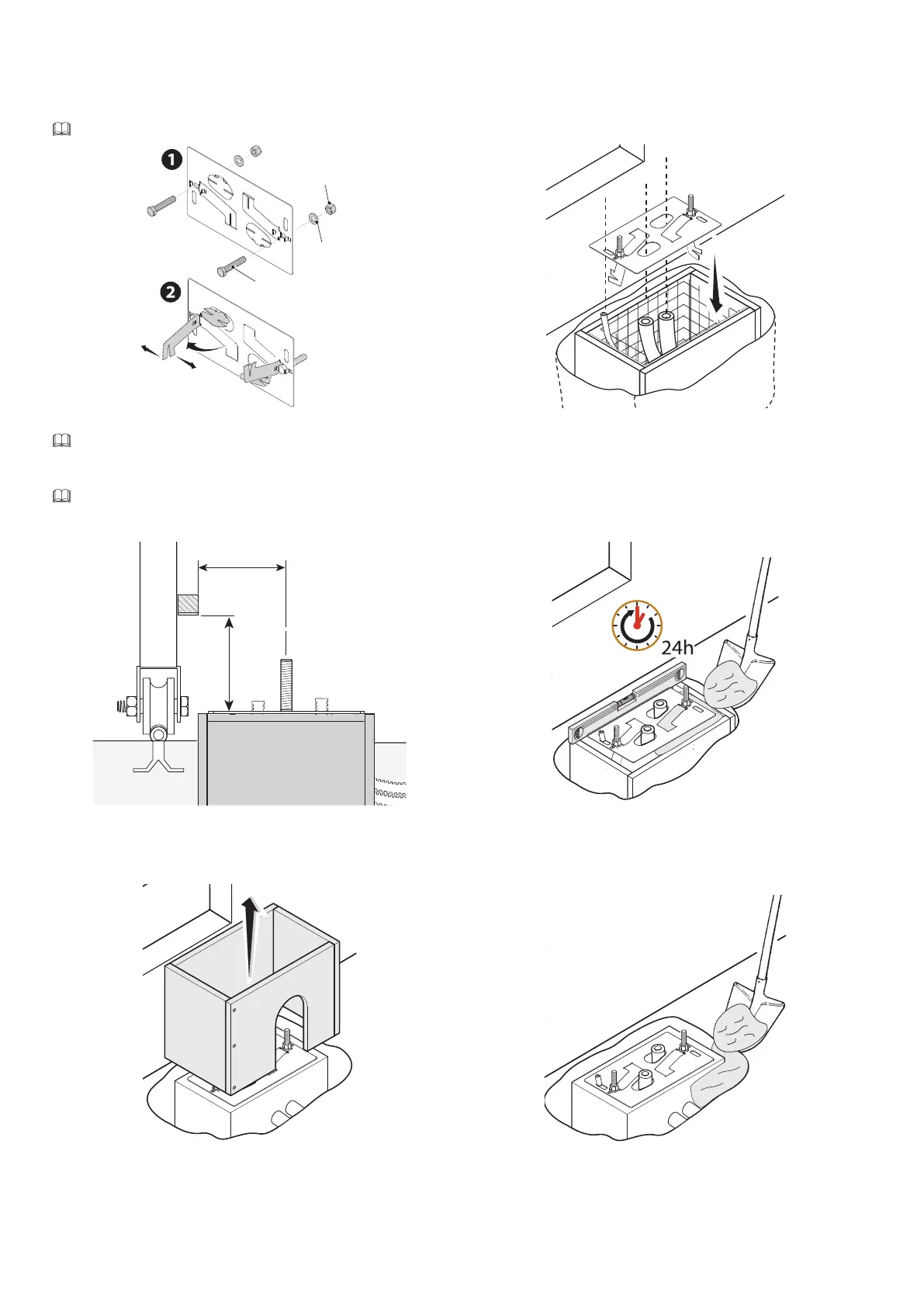

Insert the screws supplied in the anchoring plate.
Lock the screws with the nuts supplied.
Remove the pre-shaped clamps using a screwdriver.
Fit the anchoring plate into the iron cage.
The tubes must run through the existing holes.
2
UNI 5734
Ø 12
UNI 5588 M12
Fasten the rack.
See the FASTENING THE RACK paragraph.
Position the anchoring plate respecting the measures shown on the drawing.
Cast cement into the foundation frame;
The plate must be perfectly aligned and its bolt threads completely above surface.
Wait at least 24 hours for the cement to dry.
95
106
Remove the foundation frame.
Fill the hole with earth around the concrete block.

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
