CAME BXV Series User Manual

p. 13 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

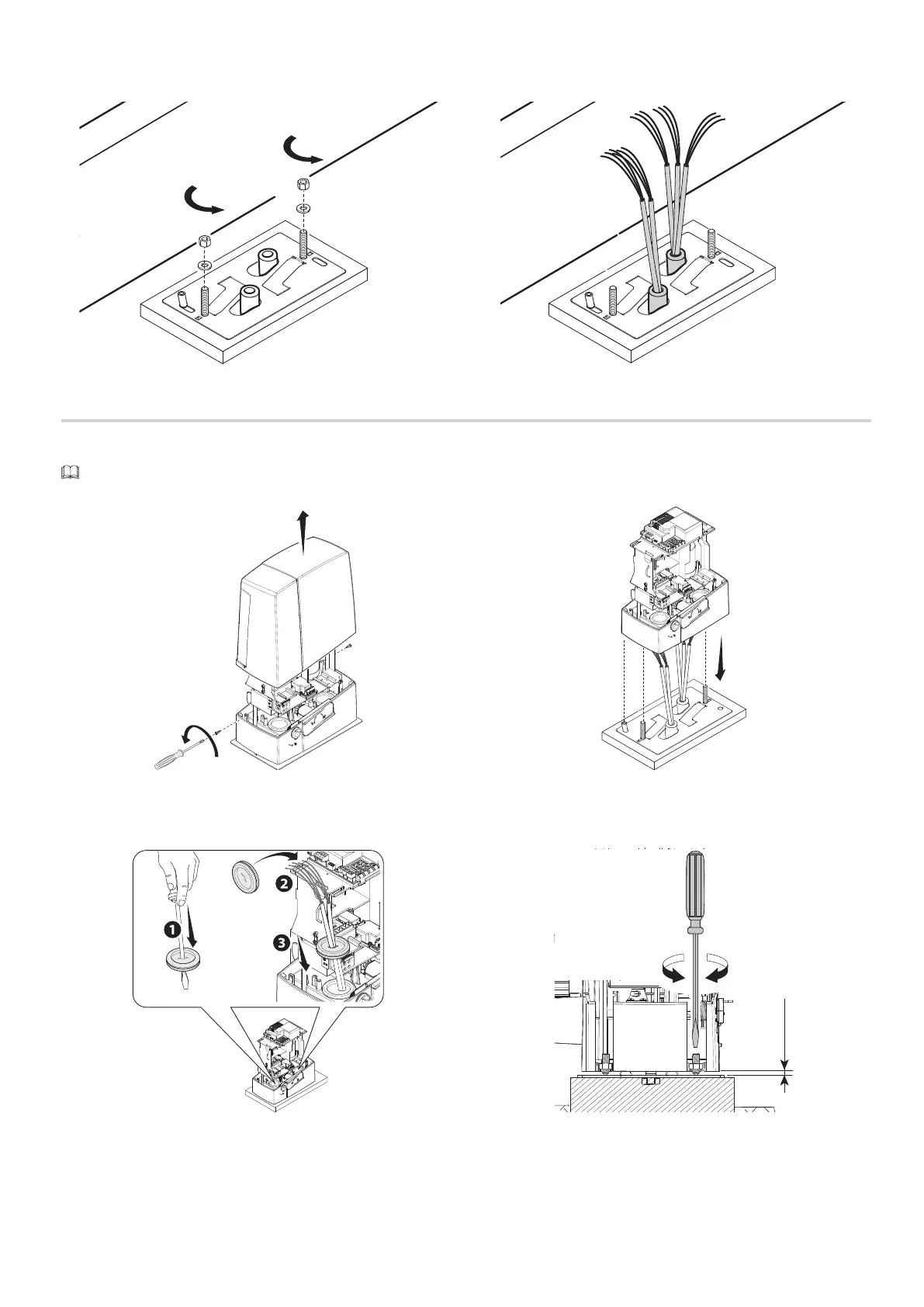

Remove the nuts from the bolts.
Fit the electric cables into the tubes so that they come out about 1500 mm.
Setting up the operator
Remove the operator's cover.
Place the operator on top of the anchoring plate.
The electric cables must pass under the operator case
Drill the cable gland.
Lift the gearmotor by 5 to 10 mm from the plate by adjusting the threaded steel feet to allow any subsequent adjustments between pinion and rack.
5 ÷ 10

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
