p. 14 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

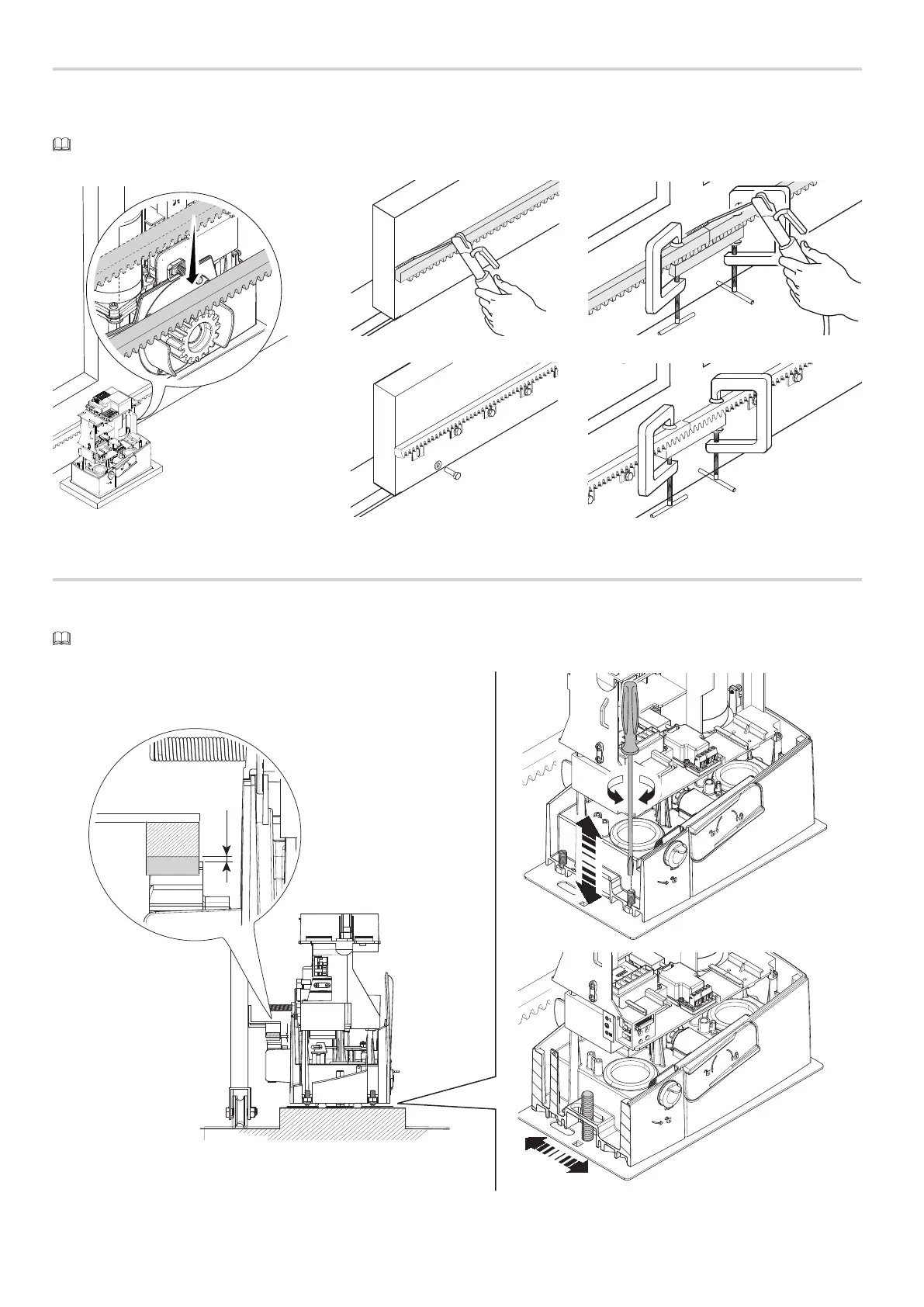

Fastening the rack
Release the operator.
Rest the rack above the gearmotor.
Weld or fasten the rack to the gate along its entire length.
To assemble the rack modules, use an extra piece and rest it under the joint, then fasten it using two clamps.
Adjusting the pinion-rack coupling
Manually open and close the gate.
Adjust the pinion-rack coupling distance using the threaded feet (vertical adjustment) and the holes (horizontal adjustment).
The weight of the gate must not bear down upon the operator.
1 ÷ 2
1 ÷ 2

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
