CAME BXV Series User Manual

p. 15 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

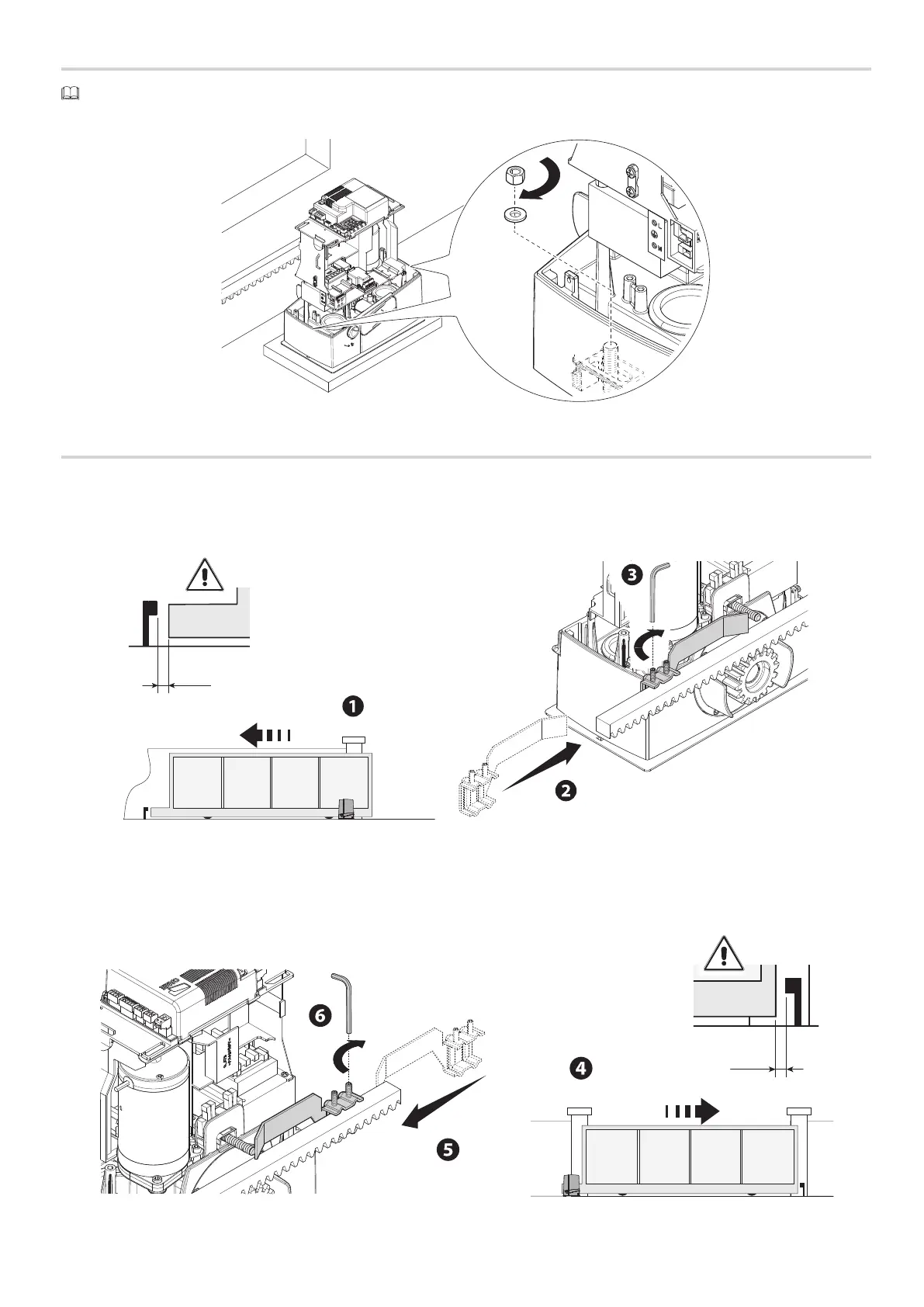

Fastening the operator
Proceed with the fastening only after adjusting the pinion-rack coupling.
Fasten the operator to the anchoring plate with washers and nuts.
Establishing the limit-switch points with mechanical limit-switches
Open the gate.
Insert the opening limit switch fin on the rack.
The spring must trigger the microswitch.
Fasten the opening limit switch fin using the headless screws (supplied).
~ 20 mm
Close the gate.
Insert the closing limit switch fin on the rack.
The spring must trigger the microswitch.
Fasten the closing limit fin using the headless screws (supplied).
~ 20

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
