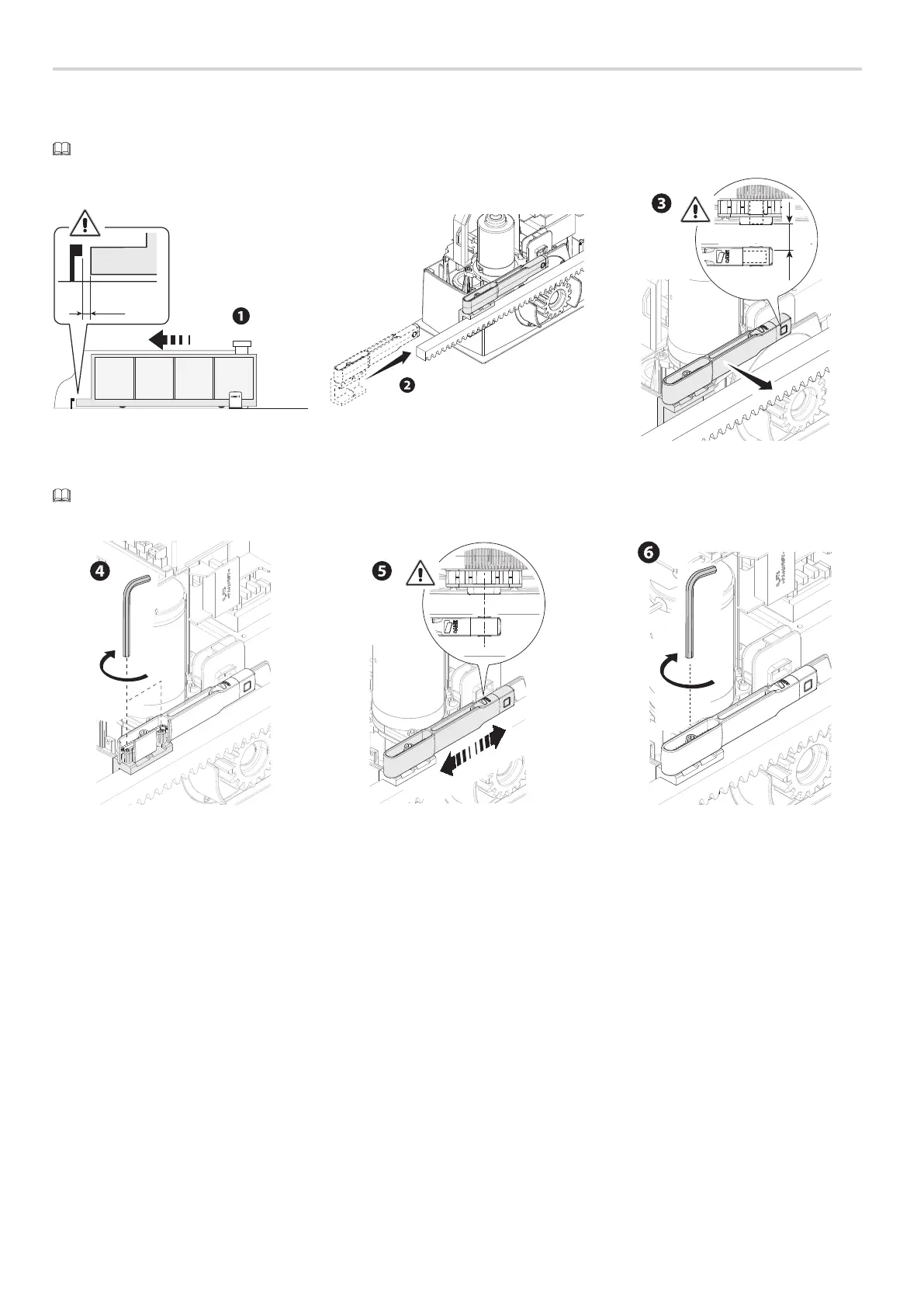

Establishing the limit-switch points with magnetic limit-switches *
* Only for BXV06AGM BXV10AGM
Open the gate.
Insert the magnetic opening limit switch fin on the rack.
The fin magnet must be at a distance between 10 and 30 mm from the magnetic sensor.
~ 20
10 < 30
Fasten the support to the rack using the headless screws supplied.
The limit switch magnet must be perpendicular to the magnetic sensor.
Fasten the limit switch fin using the screw (supplied).

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
