p. 30 - Manual FA01294-EN - 12/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

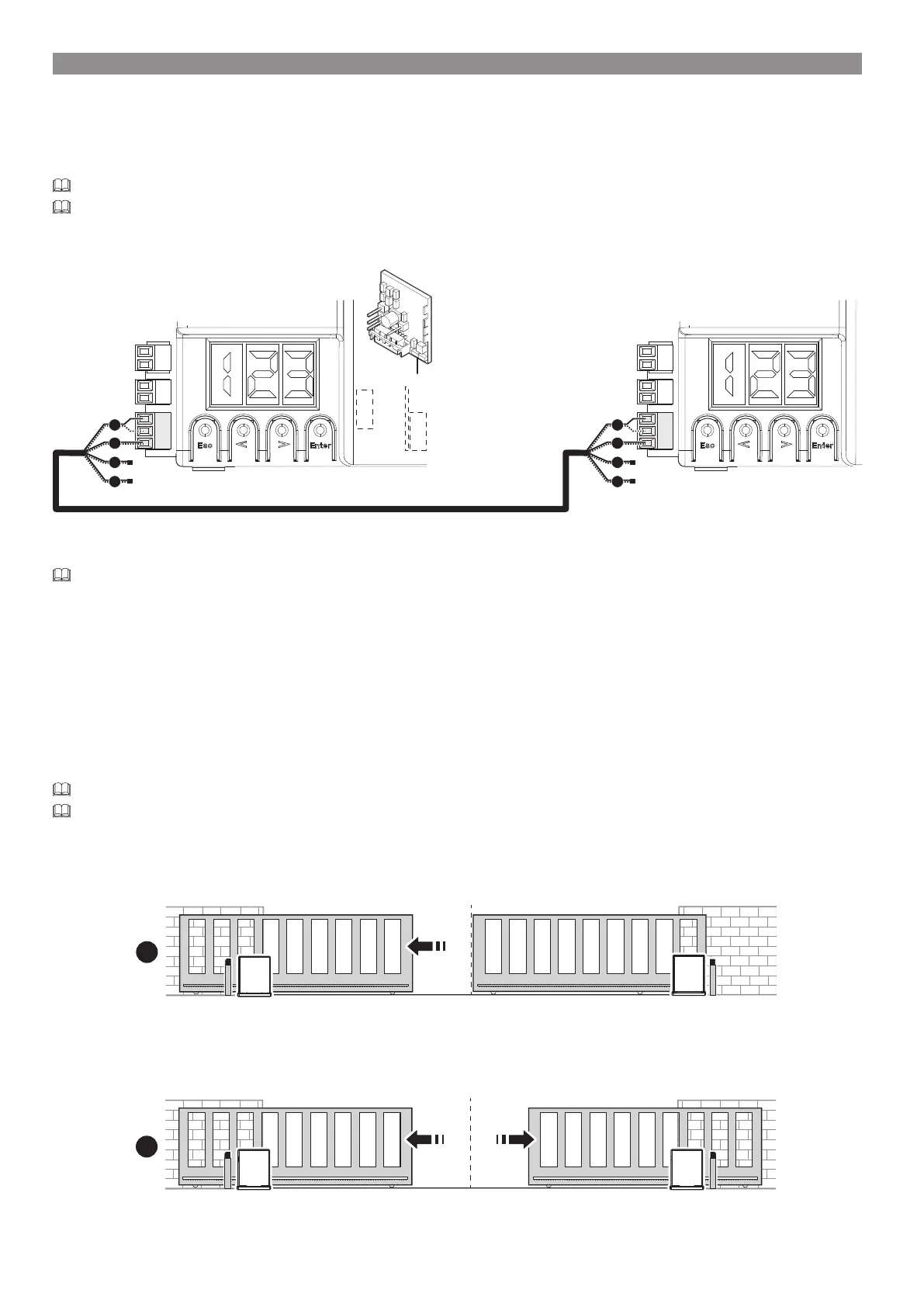

PAIRED OPERATION
Single command of two connected operators.
Electrical wiring
Connect the two electronic boards with a CAT 5 cable.
Fit a RSE card into both control boards.
Proceed with the electrical connection of the devices and accessories.
The devices and accessories must be connected to the electronic board which will be set as MASTER.
For electrical connections of the devices and accessories, see the ELECTRICAL CONNECTIONS chapter.
A B GND
RSE
RSE
CAT5
MASTER SLAVE
A B GND
AS1 GND
B
A
S1 GND
B
1
2
3
4
1
2
3
4
Programming
All programming operations described below must be performed only on the control board set as MASTER.
Start programming with the following functions:
F49 RSE
Configures the function to be performed by the board connected to the RSE connector.
F54 Opening direction
It sets the gate opening direction.
F52 Transferring MASTER-SLAVE parameters
It enables to share the parameters programmed on the Master gate with the Slave gate.
Saving users
All user storage operations must be performed only on the control board set as MASTER.
For user storage operations, see the [New User] function.
Operating modes
1 - PARTIAL OPENING command
2 - STEP-STEP command
MASTER SLAVE
MASTER SLAVE
2
1

CAME BXV Series Specifications

General

Encoder	Yes
Power Supply	230V AC, 50Hz
Max Door Weight	800kg
Duty Cycle	30%
Lifting Capacity	800kg
Power Consumption	370W
Remote Control	Yes
Battery Backup	Optional
