Make sure that the operator is installed onto a sturdy surface that is protected from any collisions • Check that the
temperature ranges given and those of the location match. • Before installing the operator, check that the guided part is
in good mechanical condition, is balanced and that it opens and closes correctly. If something is missing, do not continue
until you have complied with all safety provisions. • If necessary, add suitable reinforcements to the anchoring points. If
necessary, add suitable reinforcements to the anchoring points. • Do not install door or gate leaves on tilted surfaces. •
Do not install the operator upside down. • The rails of the upper guide must not cause any friction. • The guide rail must
be well-fastened to the ground, entirely above the surface and free of any impediments to the gate's movement. • Prevent
finger crushing between the rack and pinion. • Make sure that the gate is stable, that it opens and closes correctly and
that the castors function properly and are well lubricated. • Make sure that people cannot be entrapped between the
guided and fixed parts, when the guided part is set in motion.
This can be achieved if the relative distance exceeds 8 mm.
However, the following distances are considered safe to prevent entrapment of the body parts identified:
fingers, more than 25 mm;
feet, more than 50 mm;
head, more than 300 mm;
for the entire body, more than 500 mm.
If these distances can not be guaranteed, a protection is necessary.

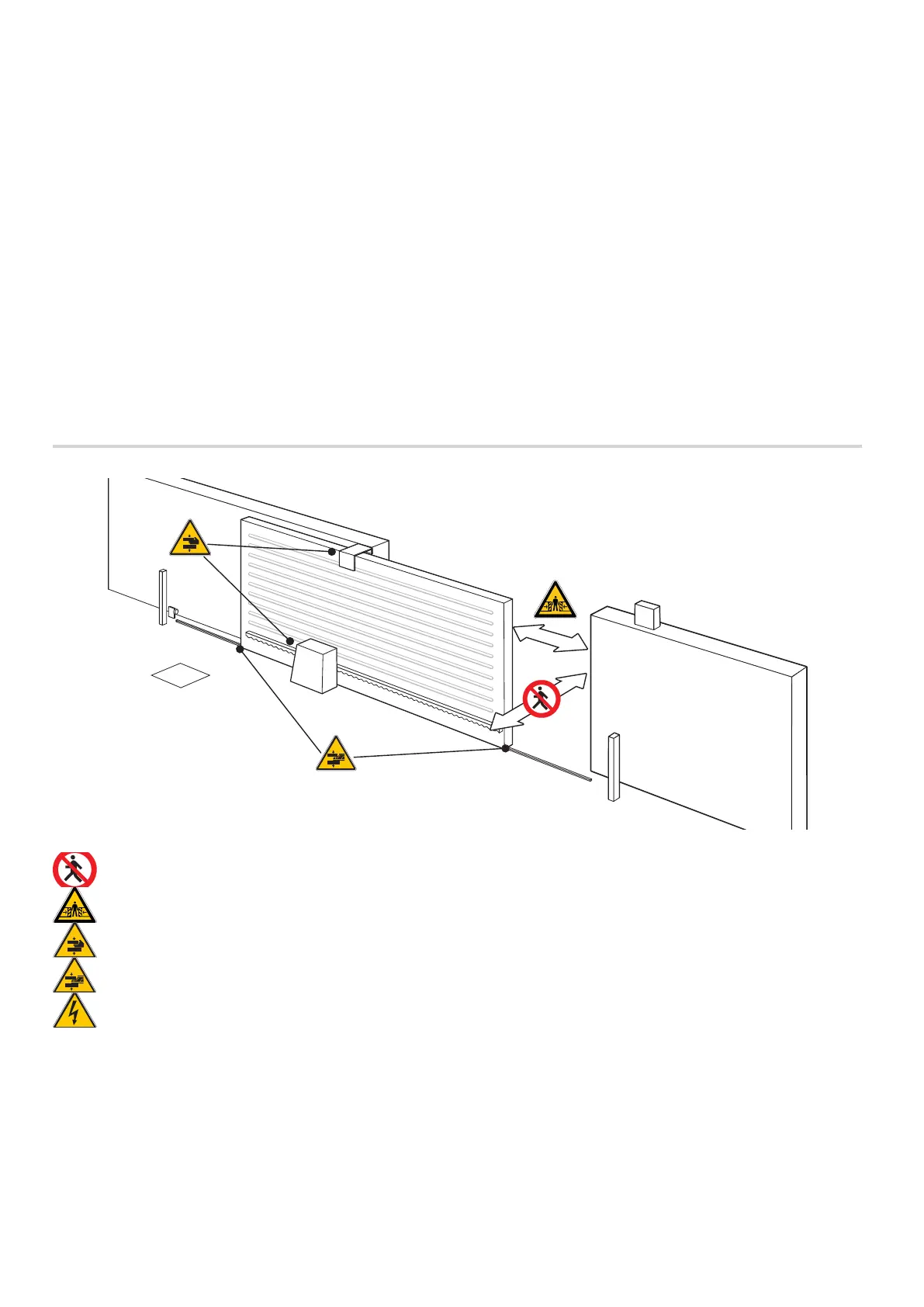

Main points of danger for people
Do not enter.
Danger of entrapment.
Danger of hand entrapment.
Danger of foot entrapment.
