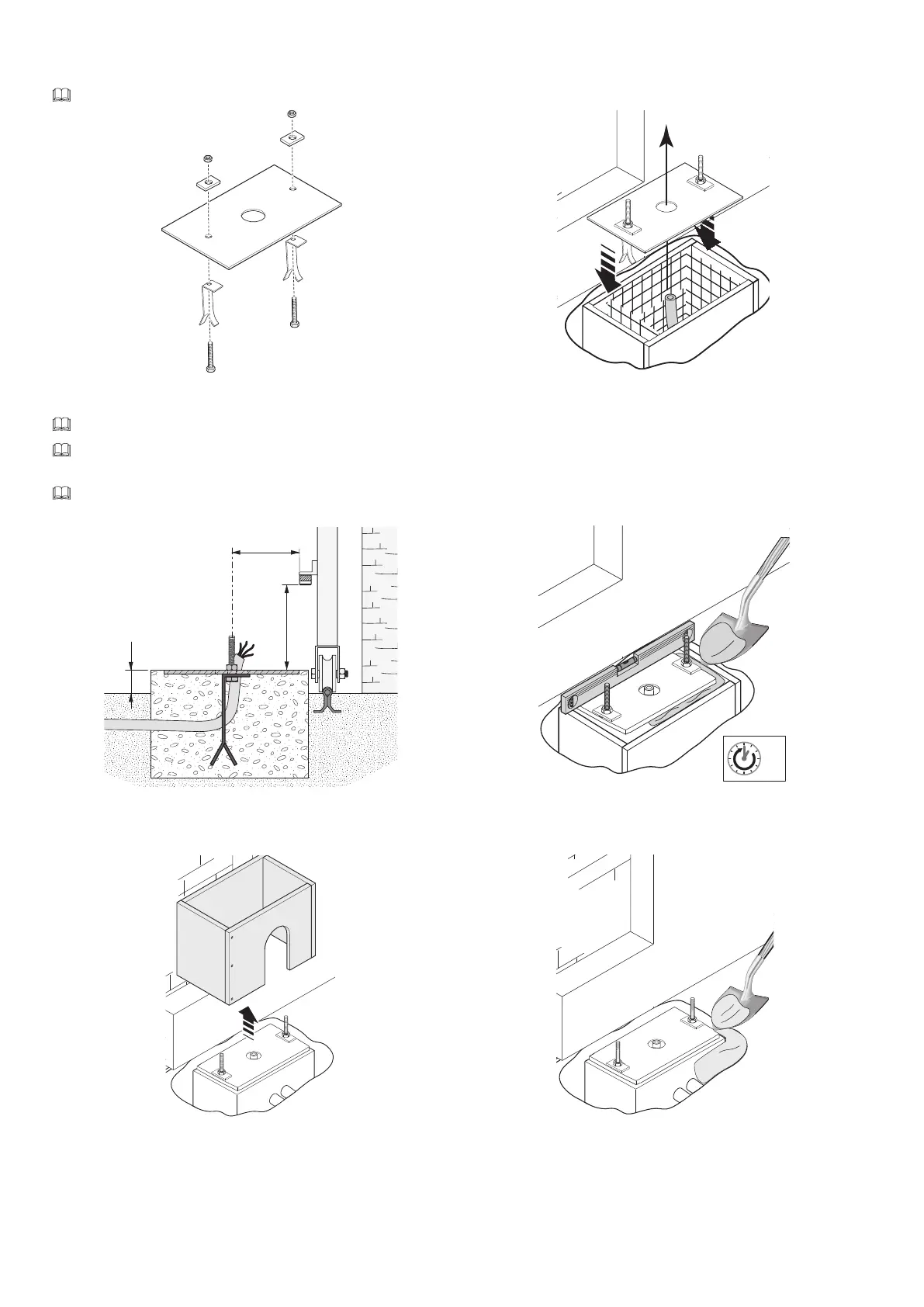

Fasten the anchoring clamps to the plate by using the supplied screws, washers and nuts.
Fit the anchoring plate in the iron cage.
The tubes must pass through the existing holes.
Position the anchoring plate, taking note of the measurements shown in the drawing.
If the gate does not have a rack, proceed with the installation.
See the section “FASTENING THE RACK”.
Cast cement into the foundation frame.
The plate must be perfectly level and the screw threads completely above surface.
Wait at least 24 hours for the cement to dry.
50
142
220
24h
Remove the foundation frame.
Fill the hole with soil around the concrete block.
