Page 11 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

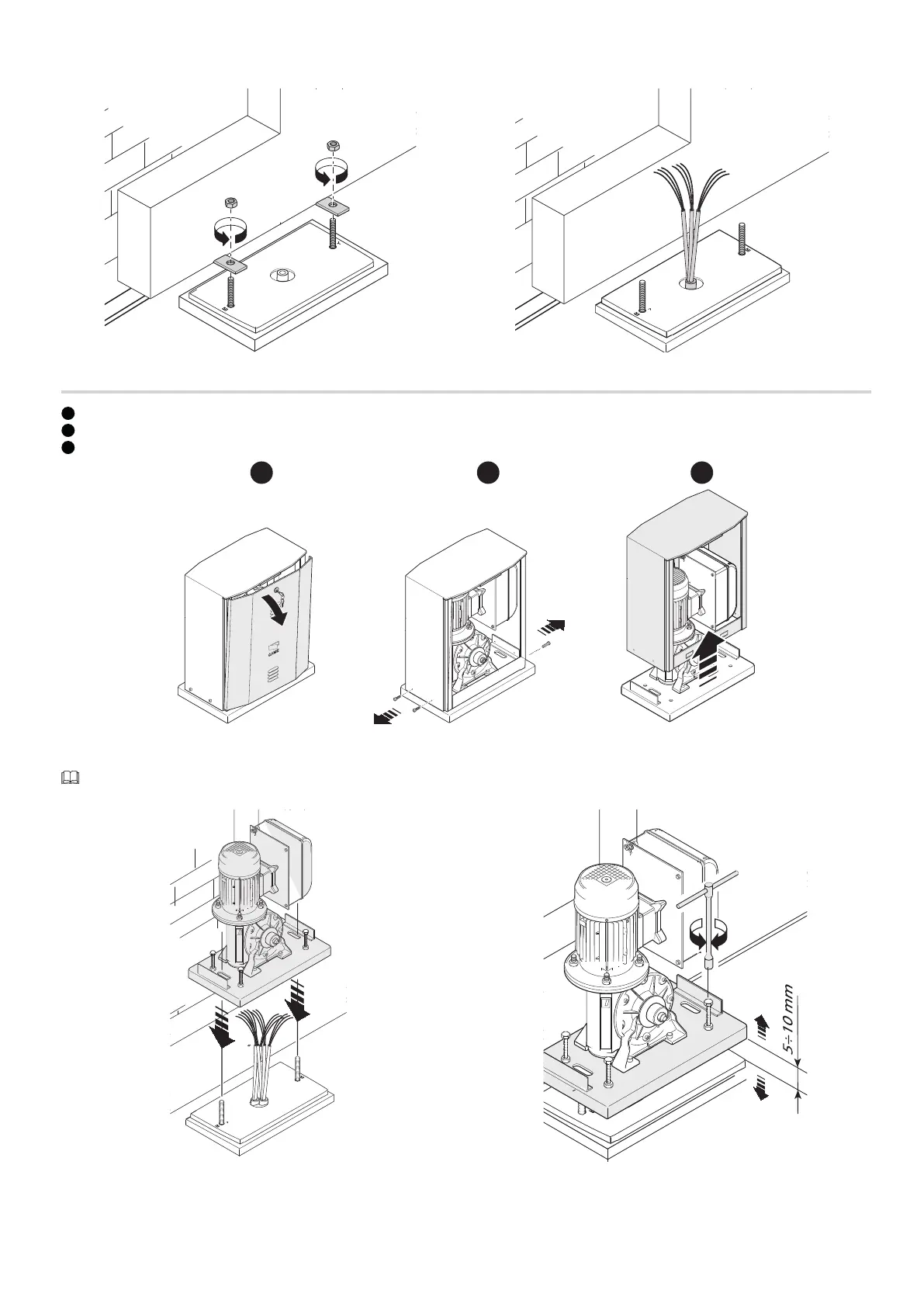

Remove the nuts from the screws.
Insert the electrical cables into the tubes until they protrude by about 600 mm.
Setting up the operator
1
Remove the front cover.
2
Remove the side screws.
3
Remove the cabinet.
BY 3500TBY 3500T
BY 3500T
1
BY 3500T
2
1
3
Place the operator on top of the anchoring plate.
The electrical cables must pass under the operator foundation frame
Lift the operator by 5-10 mm from the plate by adjusting the threaded feet, to allow for any adjustments that may need to be made between the rack and pinion.
BY 3500T
BY 3500T
