CAME BY-3500T User Manual

Page 12 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

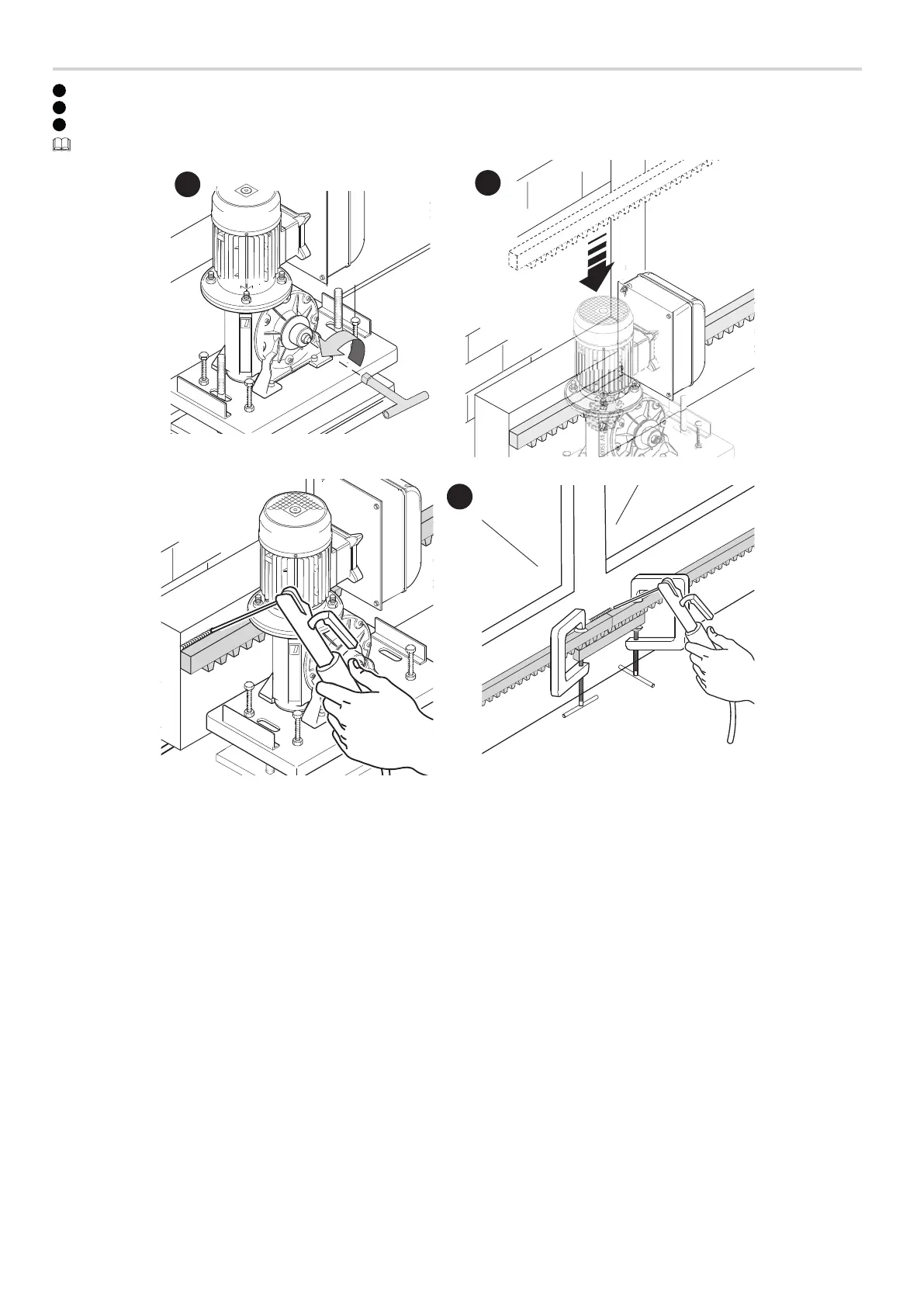

Fastening the rack
1
Release the operator.
2
Rest the rack on the pinion.
3
Weld or fasten the rack to the gate along its entire length.
To assemble the rack modules, use an extra piece and rest it under the joint, then fasten it in place using two clamps.
BY 3500T
2
1
+
-
BY 3500T
3
