Page 13 - Manual FA01731-EN - 01/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

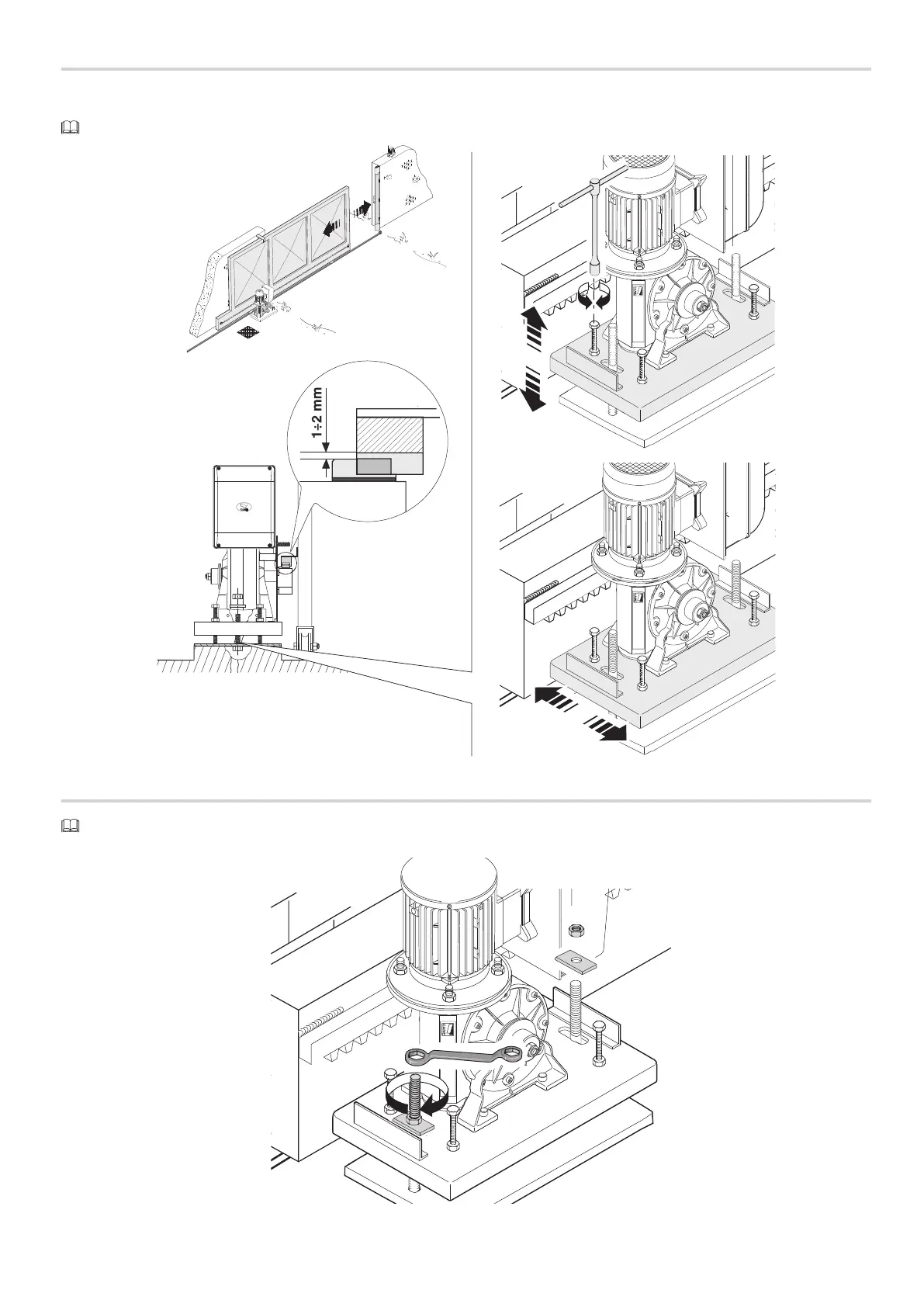

Adjusting the pinion-rack coupling
Open and close the gate manually.
Adjust the pinion-rack coupling distance using the threaded feet (vertical adjustment) and the holes (horizontal adjustment).
The weight of the gate must not bear down upon the operator.
+
-
BY 3500T
+
-
BY 3500T
BY 3500T
Fastening the operator in place
Only fasten the operator after adjusting the pinion-rack coupling.
Fasten the operator to the anchoring plate using stoppers and nuts.
+
-
