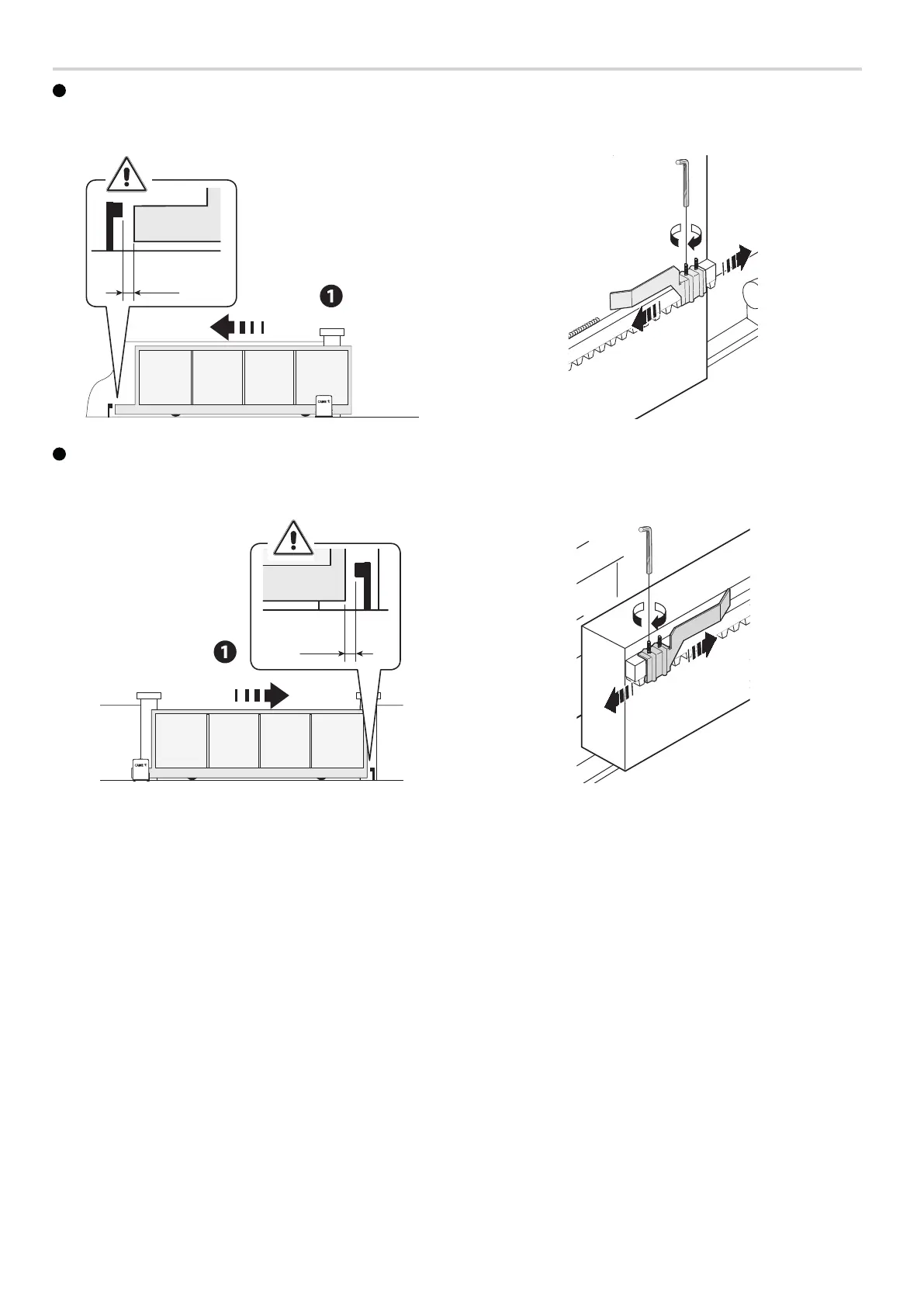

Determining the travel end points with mechanical limit switches
1
Open the gate.
Insert the opening limit-switch tab in the rack.
The spring must trigger the microswitch.
Fasten the opening limit-switch tab using the grub screws supplied.
~ 20
1
Close the gate.
Insert the closing limit-switch tab in the rack.
The spring must trigger the microswitch.
Fasten the closing limit-switch tab using the grub screws supplied.
~ 20
