PAIRED OPERATION
Two connected operators are controlled with one command.

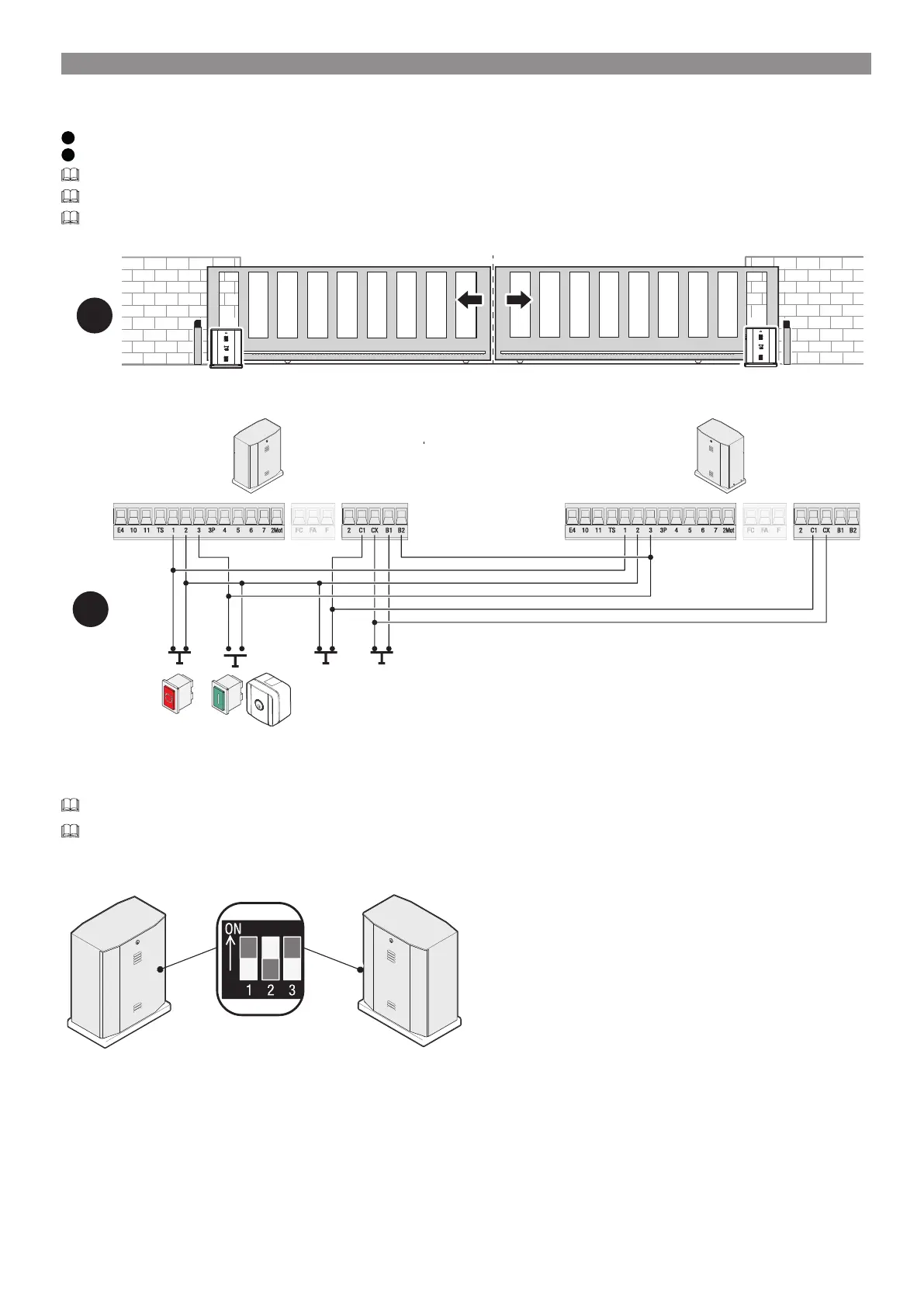

Electrical connections
1
Reverse the SLAVE operator motor and limit switches phases.
2
Connect the two electronic boards.
The devices and accessories must be connected to the control board which will be set as the MASTER.
For information on connecting the electrics for the devices and accessories, please see the “ELECTRICAL CONNECTIONS” section.
For simultaneous radio control on both operators, store the user on the second master channel.
1
MASTER
SLAVE
2
MASTER
SLAVE
BY 3500T
BY 3500T
Programming
Select the functions and settings on both electronic boards.
DIP-switches 1 and 3 must be ON.
The gate only closes automatically.
SLAVE
BY 3500T
MASTER
BY 3500T
