Secure the stop using the screw (j).
Mechanical end stop
Centre of the arm
⚠C
aution:iftherearenoendstops,endrunsmustbefitted.

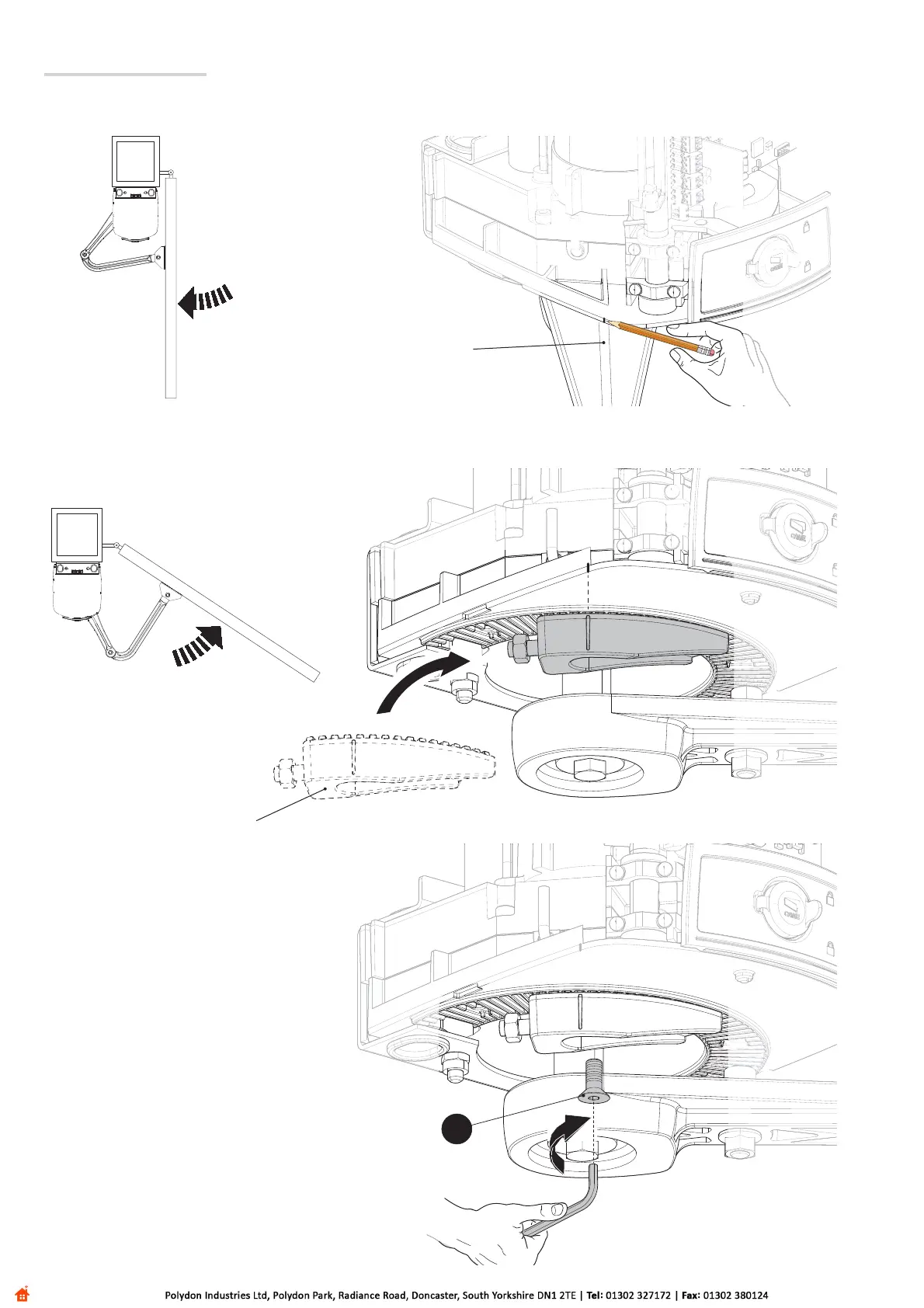

Securing mechanical stops
Unlock the gearmotor.
During opening.
Open the leaf completely. Mark the casing by the centre of the arm.
Close the leaf manually Insert the mechanical stop as shown. The mark on the casing must match the groove on the end run.
