24V 12V 0
U V W X Y E
L1T L2T CT
L N
10 11 ES
L2T L1T
1 2 3 4
0 12 24
24V 12V 0
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
U V W X Y E
Page 15 - Manual code:
119DW02EN
vers. 3 03/2014 © CAME Cancelli Automatici S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME Cancelli Automatici S.p.A.

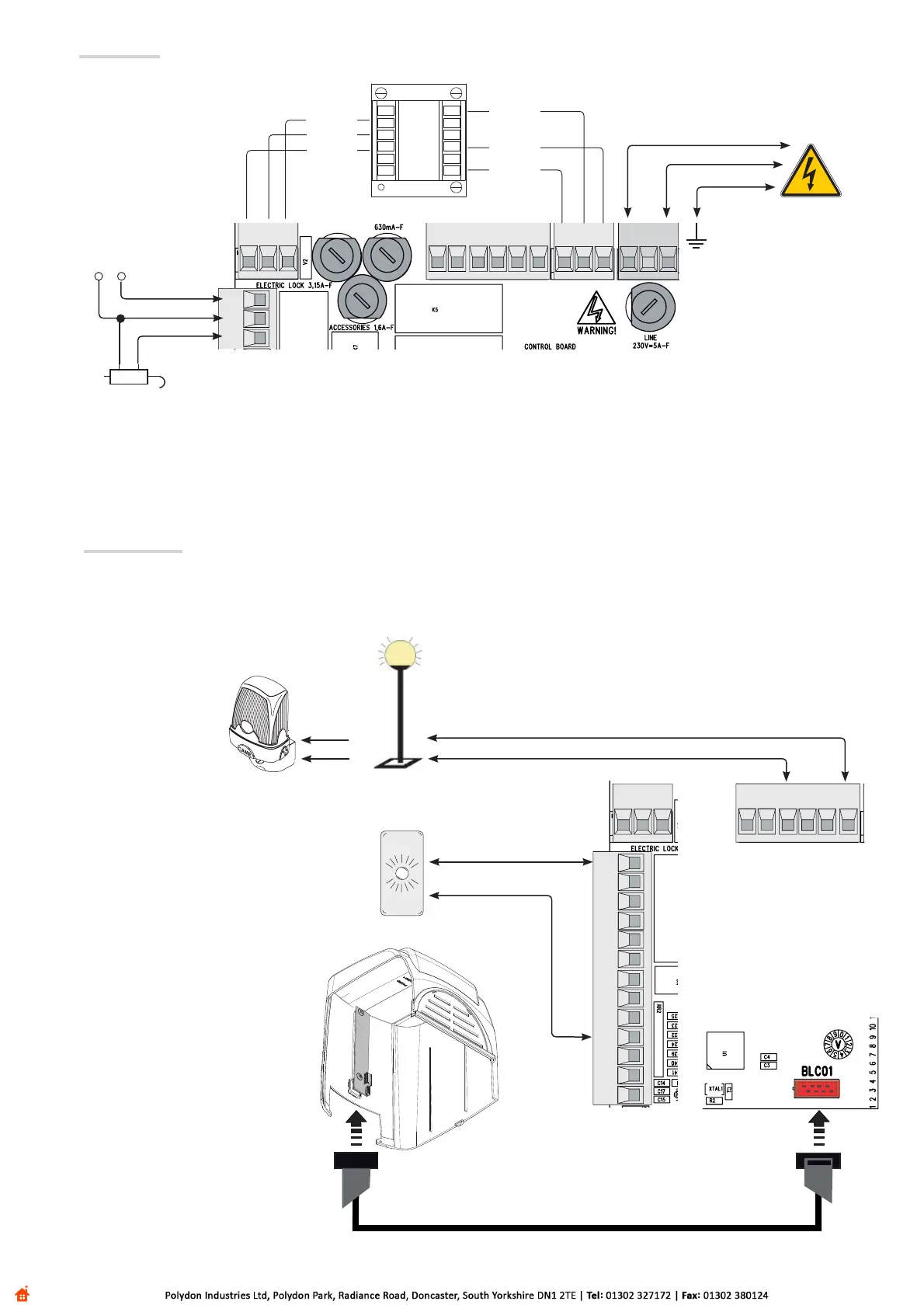

Power supply
Warning devices
Power supply 230 VAC
frequency 50/60 Hz
Electric lock 12 V - 15 W max
FA001 - LED control board. Indicates the stages
of movement of the gate and anomalies.
Gate open indicator light (contact capacity: 24 V - 3 W max.).
Indicates the status of the gate, see F 10 function.
Terminals for powering the
accessories at 24 V AC.
Flashing light (contact
capacity: 230 V - 25 W max.).
Flashes during gate opening
and closing.
Transformer
Black
Red
White
Orange
Purple
Blue
Cycle or courtesy lamp (contact rated for: 230 V - 25 W Max).
Auxiliary connection to freely position outdoor lamp, to enhance lighting when parking or
driving off.
Cycle: it stays lit from the moment the lead starts opening until it is completely closed
(including the automatic closing time).
Courtesy: stays lit for a set time of 180 seconds.
