2 3 3P 4 5 7 CX CY
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
DF
RX TX
./ # .#
RX TX
Page 18 - Manual code: 119DW02EN vers. 3 03/2014 © CAME Cancelli Automatici S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME Cancelli Automatici S.p.A.

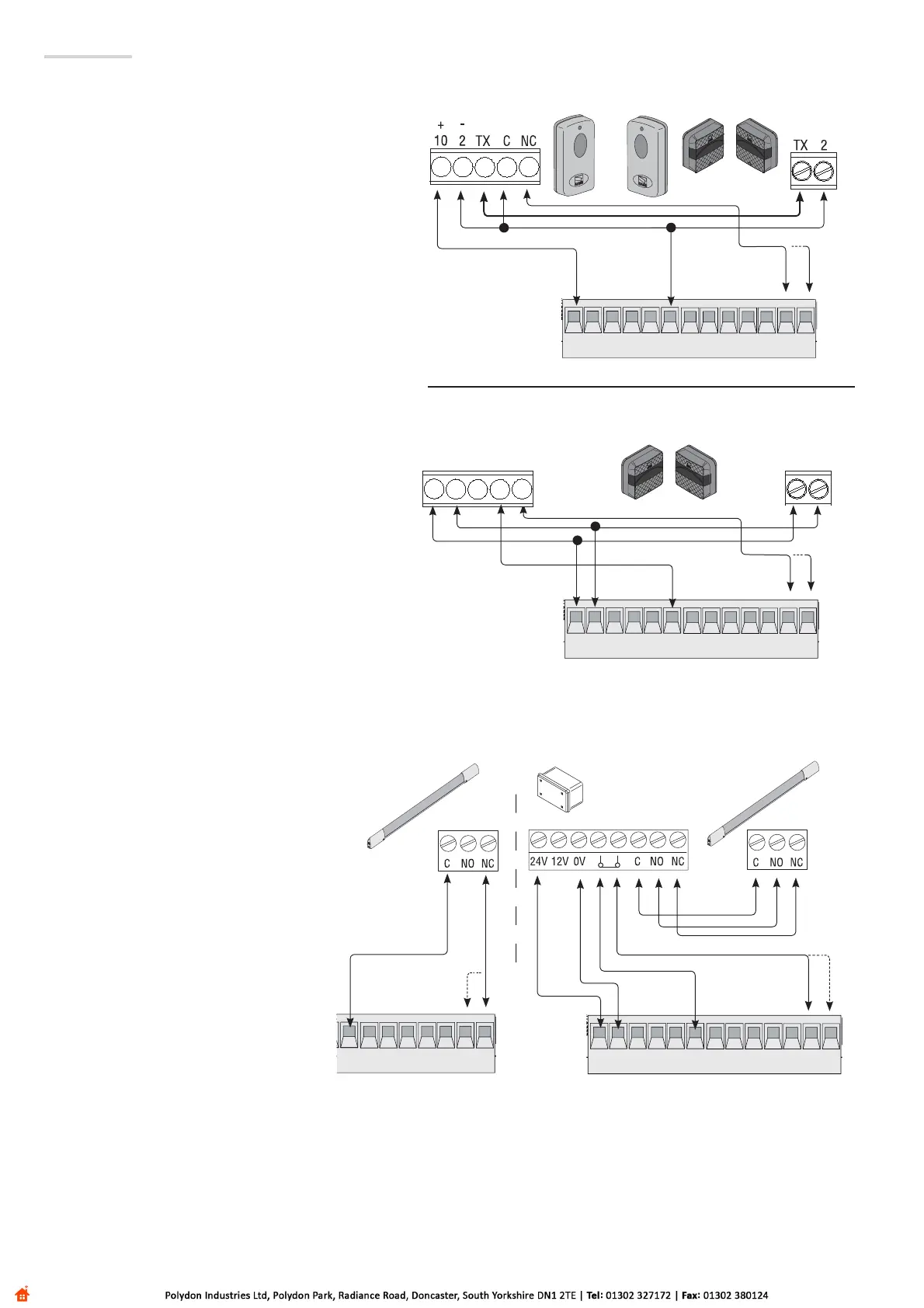

Photocells
Configure the CX or CY (NC) contact, input for safety
devices such as photocells, compliant with the EN 12978
standard.
See CX (F2 function) or CY (F3 function) input functions in:
- C1 reopening during closing. While the leaves are closing, the
opening of the contact causes the reversal of the direction of
movement until completely open;
- C2 reclosing during opening. While the leaves are opening,
the opening of the contact causes the reversal of the direction of
movement until completely closed;
- C3 partial stop. The leaves stop, if moving, with consequent
preparation for automatic closing (if the automatic closing function
has been enabled);
- C4 waiting for obstacle. The leaves stop, if in movement, with
consequent resumption of movement after the obstacle has been
removed.
N.B. if the CX and CY contacts are not used, they must be
disabled in programming.
DF with DFI connection
control panel.
Photocells
DIR
Photocells
DEL
T
A-S
Photocells
DELTA
Safety devices
Sensitive edges
Configure the CX or CY (NC) contact, input for safety
devices such as sensitive edges, compliant with the
EN 12978 standard. See CX (F2 function) or CY (F3
function) input functions in:
- C7 reopening during closing. While the gate is
closing, the opening of the contact causes the
reversal of the direction of movement until completely
open;
- C8 reclosing during opening. While the gate is
opening, the opening of the contact causes the
reversal of the direction of movement until completely
closed.
N.B. if the CX and CY contacts are not used, they
must be disabled in programming.
