+ENC2-
S1 GND
A B
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
10 11 ES TS 1 2 3 3P 4 5 7 CX CY
./
.#
#
&53)"),%M!
48
48
48
#
.#
DELTA
DIR / DELTA S
CANCELLI AUTOMATICI
R700
ACCESS CONTROL
CANCELLI AUTOMATICI
R800
S7000
S6000
AF
TSP00LT001
24V 12V 0
U V W X Y E
L1T L2T CT
L N
L2T L1T
1 2 3 4
0 12 24
Page 19 - Manual code:
119DW02EN
vers. 3 03/2014 © CAME Cancelli Automatici S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME Cancelli Automatici S.p.A.
Memory roll
R700 card
R800 card
AF card

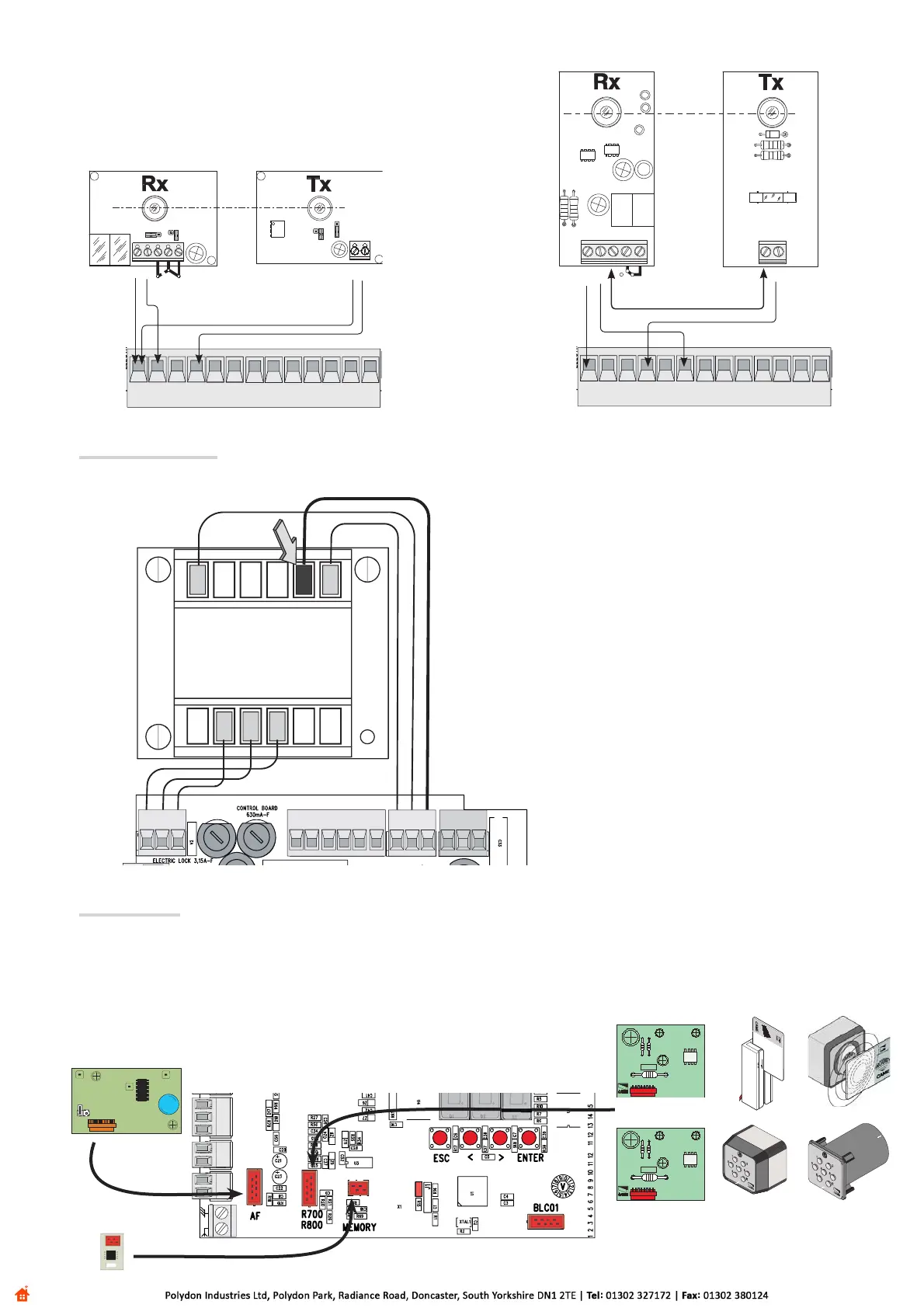

Photocell safety connection
With each opening or closing command, the panel checks that the photocells work. Any
anomaly inhibits any command.
Use the F 5 function to select on which inputs to activate the link.
Memorising data
To enter, modify, and remove users or control the operator via radio, insert the AF card.
If using the transponder or the card reader, insert the R700 card. If using the keypad, on the other hand, insert the R800 card.
The memory roll is used to memorise user data and system configuration, which can then be used in another control board.
Adjusting motor torque
To vary the motor torque, move the indicated faston to one of the 4 positions: 1 min to 4 max.
