ERROR MESSAGES AND WARNINGS
• Er1: motor calibration interrupted; check correct motor connection and operation of the M1 gearmotor.
• Er2: motor calibration interrupted; check correct motor connection and operation of the M2 gearmotor.
• Er3: encoder broken; contact service.
• Er4: service test error; check the correct connection and operation of the safety devices.
• Er5: insufficient work time; check the set time. This may be insufficient to complete the working cycle.
• Er6: maximum number of obstacles detected.
• C0: contact 1-2 (stop) check connection of the connected device or associated function.
• C1, C2, C3, C4, C7 e C8: contacts CX and/or CY check connection of the connected device or associated function.
• LED flashing red programming indicator: control board not yet calibrated for the run.
• When LEDs 1 and 2 on the control board (FA001) flash red, this indicates encoder malfunctioning. Contact service.
• When LEDs 1, 2, 3 and 4 on the control board (FA001) flash red, this indicates that the normally closed (NC) contacts (e.g. photocells, stop button) are open.

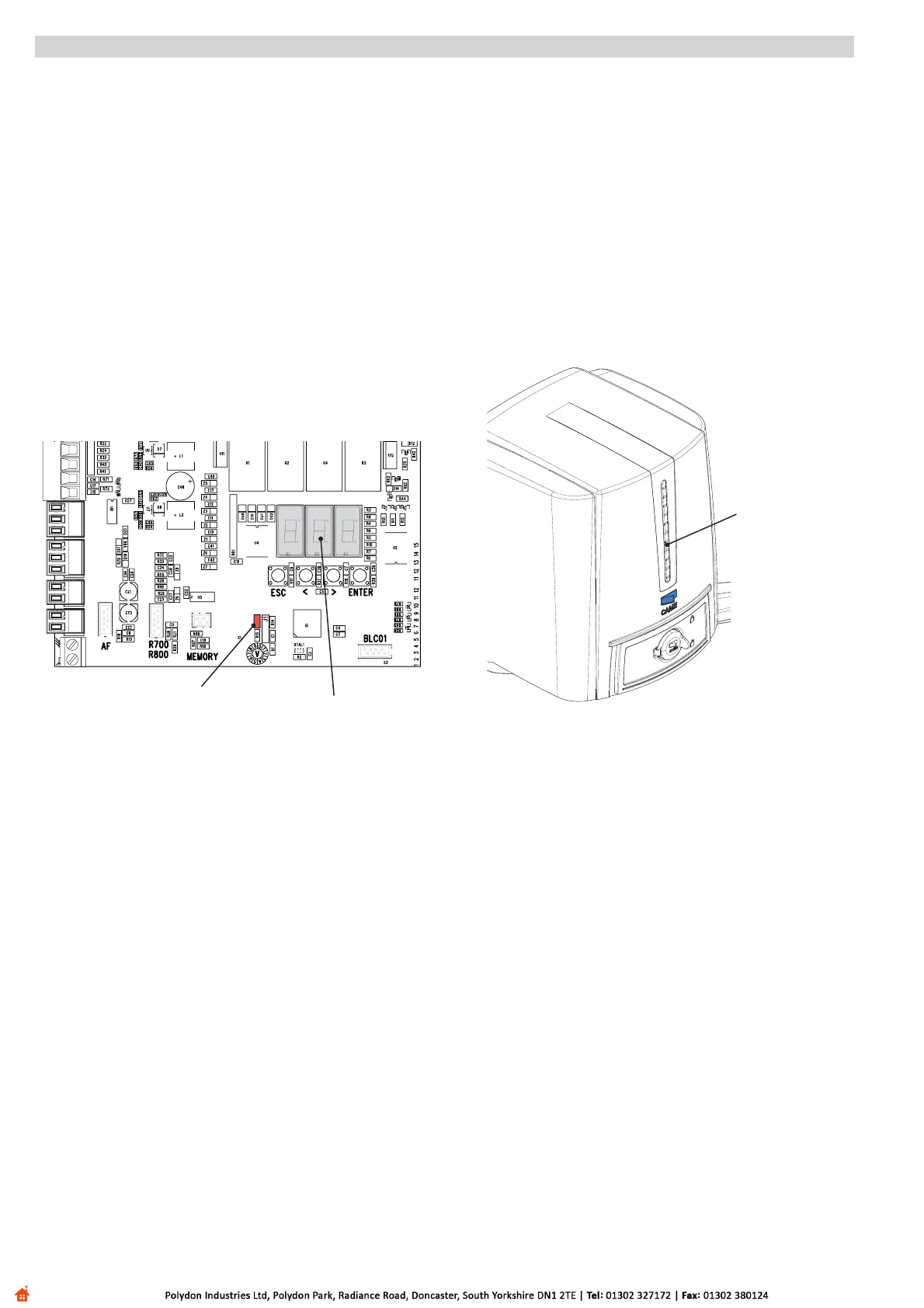

Display
Pr
ogramming indicator
LED
LED control board
(FA001)
