8
4
1
2
6
7
14
15
1617
13
12 11 10 9
18
5
3
19
Page 3 - Manual code:
119DW02EN
vers. 3 03/2014 © CAME Cancelli Automatici S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME Cancelli Automatici S.p.A.
KEY
This symbol indicates parts to read carefully.
⚠
This symbol indicates parts about safety.
☞
This symbol tells you what to say to the end users.
DESCRIPTION
The operator consists of die cast aluminium casing with an irreversible worm screw inside and a plastic ABS cover which houses the control board. With arms,
brackets and mechanical end stops.
Intended use
The operator has been designed and built by CAME Cancelli Automatici S.p.A. in compliance with current safety standards to motorise swing gates for residential or
condominium use.
Any installation and operation that differs from what is set out in this manual is prohibited.
Limits of use
Type FA40230CB
Max. leaf length (m) 2,3 2 1,5 1
Max. leaf weight (kg) 200 215 250 300
REGULATORY REFERENCES
Came Cancelli Automatici is a company with an ISO 9001-certified company quality management system and an ISO 14001-certified environmental management
system.
The product in question complies with the regulations referred to in the declaration of conformity.

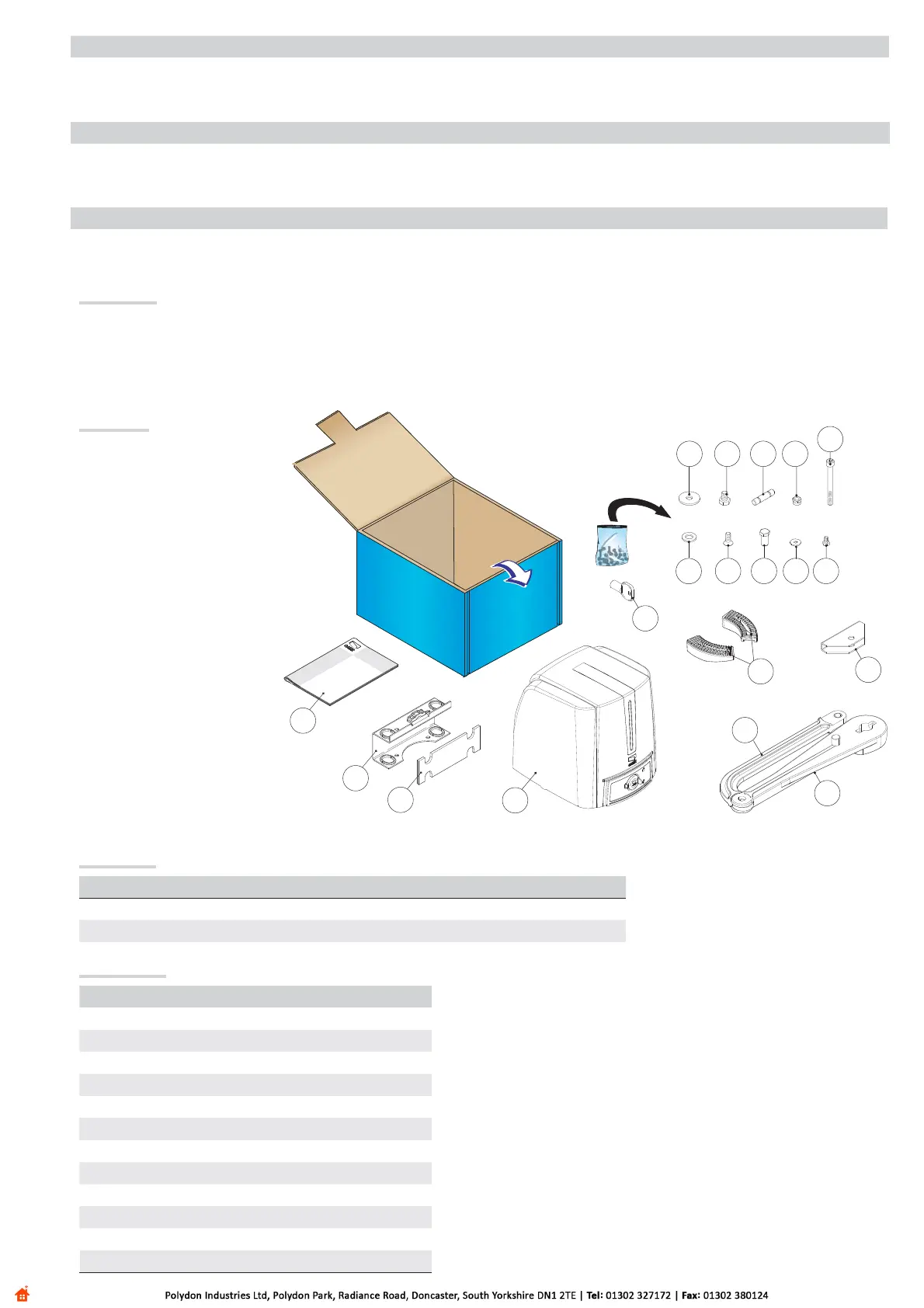

Packing list
1. 1 x operator
2. 1 x pillar bracket
3. 1 x rubber shim
4. 1 x transmission arm
5. 1 x driven arm
6. 1 x gate bracket
7. 2 x mechanical end runs
8. 1 x installation manual
9. 1 x washer for slow shaft
10. 1 x UNI5739 M10x14 screw
11. 1 x Ø10 plug
12. 2 x UNI7474 M8 nuts
13. 2 x UNI5739 M6x10 screws
14. 2 x UNI6957 2.9x19 screws
15. 2 x UNI6593 Ø6 washers
16. 2 x pins for arms
17. 2 x UNI5933 M8x20 screws
18. 1 x UNI6592 Ø12 washer
19. 2 x release keys
Technical data
Type FA40230CB
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 A
C
Motor power supply (V - 50/60 Hz) 230 AC
Assorbimento (A) 1.4
Power draw (A) 160
Torque (Nm) 180 max.
Opening time to 90° (sec) 18
Duty cycle 30 %
Operating temperature (°C) -20 ÷ +55
Motor thermal protection (°C) 150
Insulation class I
Weight (kg) 12,7
