CAME GARD 8 SERIES Installation And Operation Manual

3
2
4
5
6
1
9
10
11
12
8
13
15
14
7
16
7
16
7
SEL
SET
p.
4
- Manual code:
FA01036-EN
FA01036-EN v.
1
- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

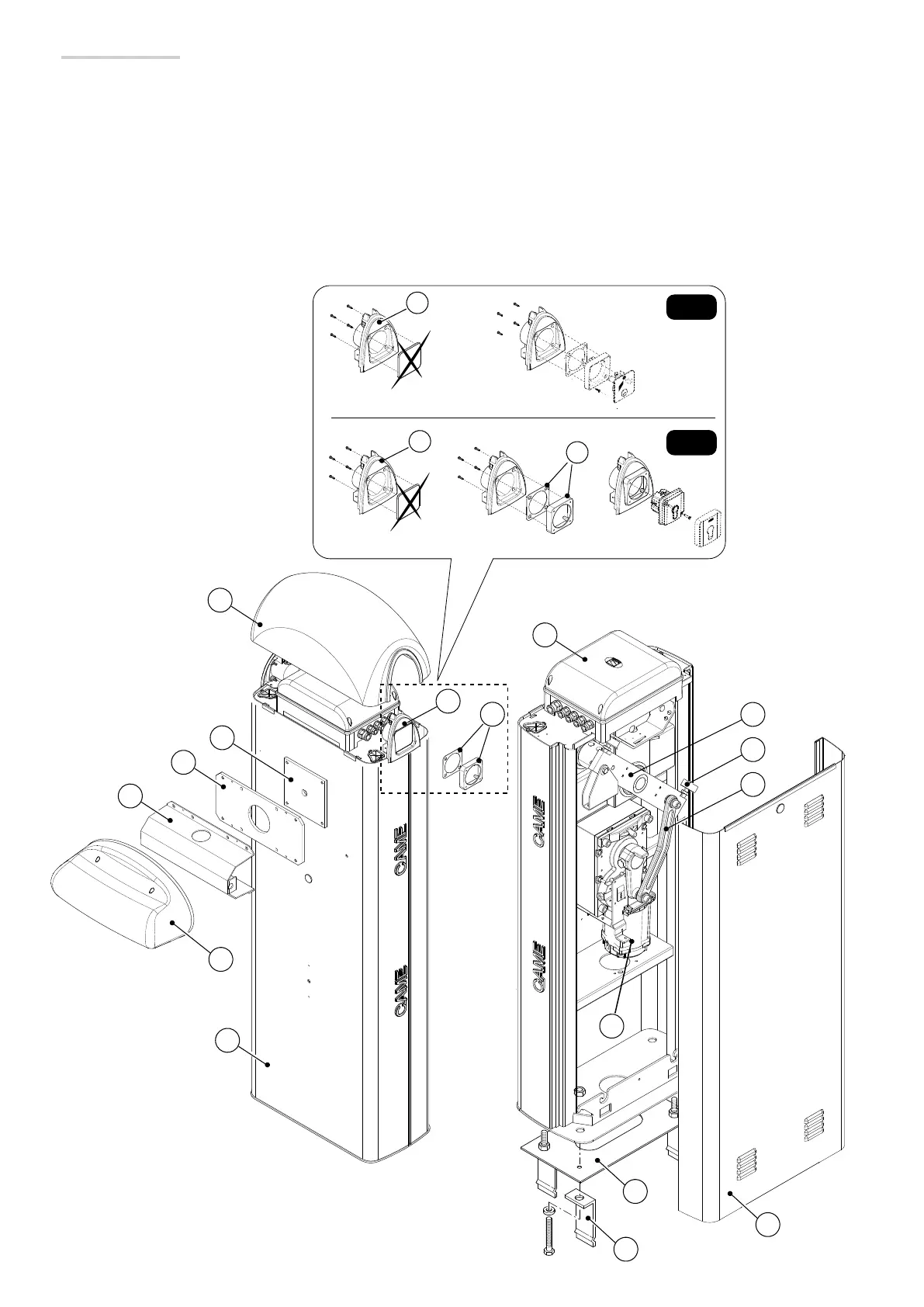

Description of parts
1. Dome
2. Motor-shaft plate
3. Mid plate
4. Boom-attachment cover
5. Protective casing shear proof
6. Cabinet
7. Casing for key-switch and digital selectors
8. Control panel
9. Lever arm
10. Boom adjustment buffer
11. Transmission rod
12. Gearmotor with encoder
13. Inspection hatch
14. Anchoring plate
15. Anchoring bracket
16. Adapter with gasket for SEL-series selectors

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
