CAME GARD 8 SERIES Installation And Operation Manual

ZL38

 
.
,


,4




#
#
C
O
M
Max.Max. Med. Min. Min.
DIS. 27370
AB
Regolazione della velocità
{
p.
18
18 - Manual code:
FA01036-EN
FA01036-EN v.
1
- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

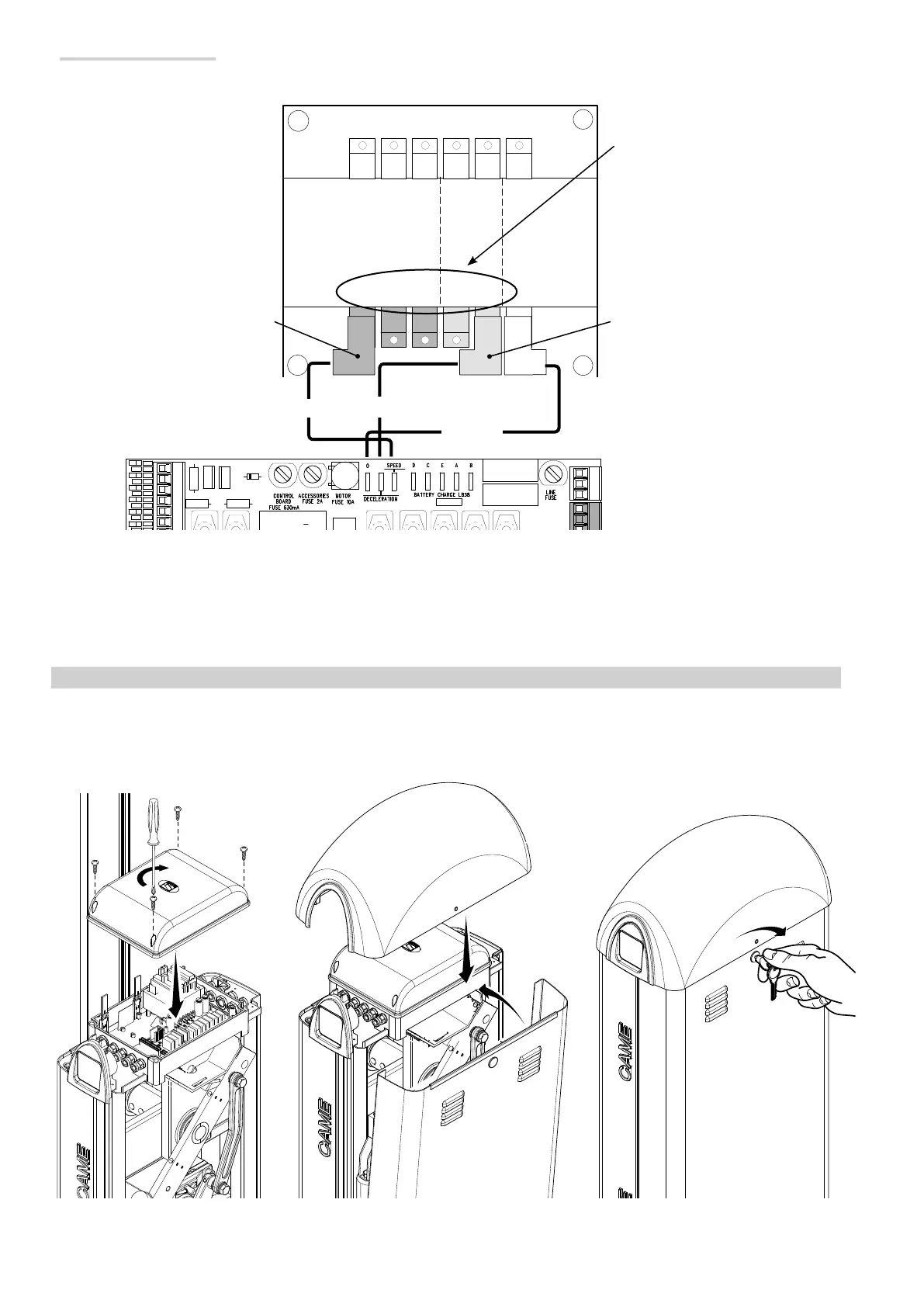

FINAL OPERATIONS
When you done with the electrical connections and setting up, fit the control panel cover and fasten it with the screws .
Replace the inspection hatch and upper dome . Lock the hatch with the key .
Min. = minimum
Med. = medium
Max. = maximum
COM = common
Black
White
Red
To regulate the travel speed, move faston
A on Min., Med. or Max.
To adjust the slow-down speed, move
faston B to Min. or Max.

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
