CAME GARD 8 SERIES - Barrier Installation; Mounting Cabinet and Boom Arm

ON
2
1 345678910
N
M
PT F FC
FA
N
L
L27
L1T
E
+10
-11
1
2
3
5
7
C1
C5
GNDTXRX
ON
OFF
 
/.
ON
2
1 345678910
N
M
PT F FC
FA
N
L
L27
L1T
E
+10
-11
1
2
3
5
7
C1
C5
GNDTXRX
3%.3
!#4
p.
17
17 - Manual code:
FA01036-EN
FA01036-EN v.
1
- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

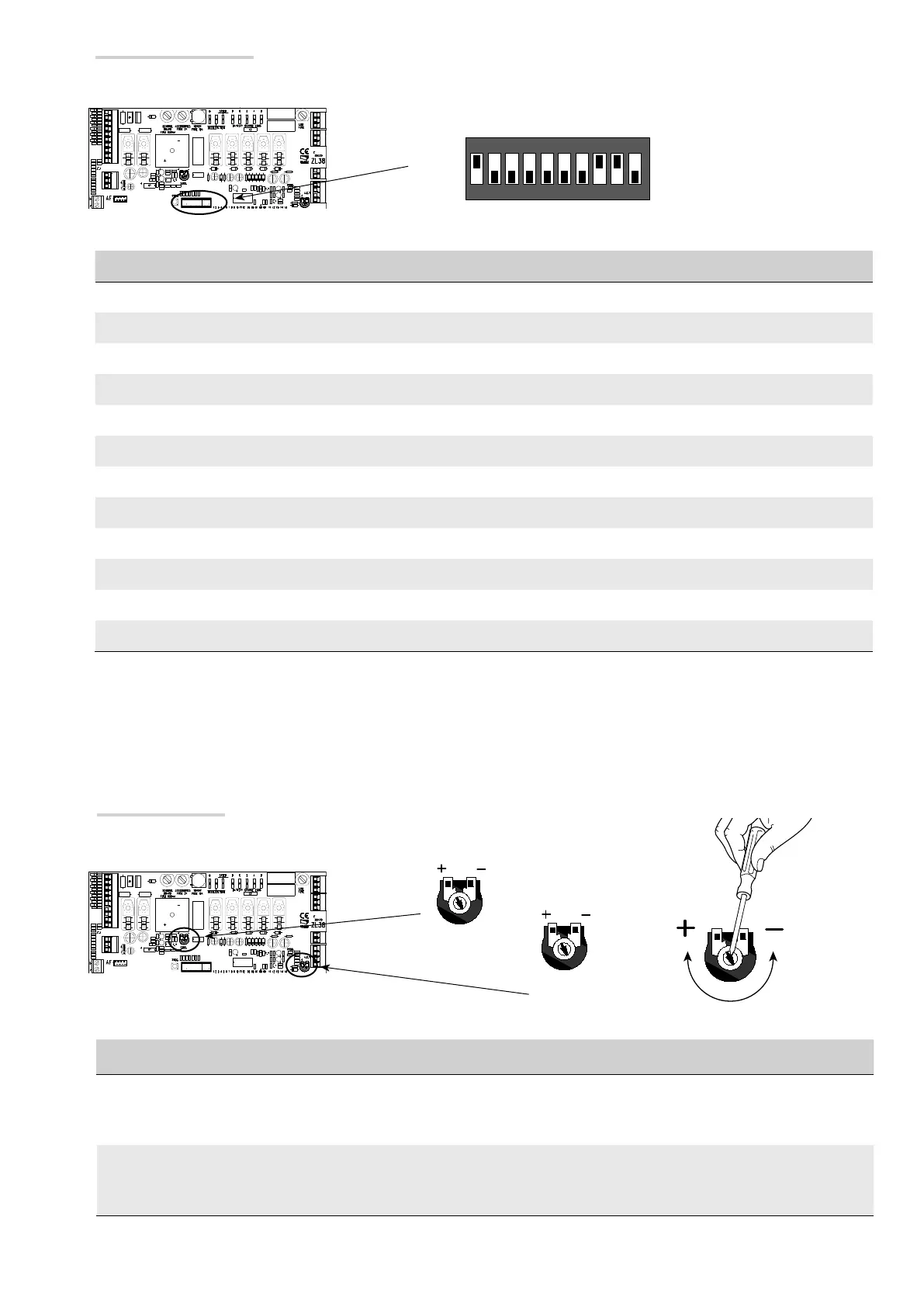

Default settings
Programming the features
DIP-SWITCH Description of functions
1 ON AUTOMATIC CLOSING (1 OFF - deactivated)
2 ON ONLY OPEN from button 2-7 and/or from transmitter (with AF card fitted)
2 OFF OPEN-CLOSE-INVERT from the button on 2-7 and/or from a transmitter (with AF card fitted)
3 ON 24 V output on 10-E during the boom's movement phases and when it is in closed position
3 OFF 24 V output on 10-E during the boom's movement phases
4 ON MAINTAINED ACTION (4 OFF - deactivated)
5 ON PRE-FLASHING when opening and closing (pre-flashing duration: 5 seconds) (5 OFF - deactivated)
6 ON OBSTRUCTION DETECTION with motor stopped (6 OFF - deactivated)
7 ON SLAVE piloted motor (7 OFF - deactivated)
8 OFF IMMEDIATE CLOSURE of the boom (8 ON - deactivated)
9 OFF TOTAL STOP (9 ON - deactivated)
10 ON BRAKING ACTION of the boom when closing (10 OFF - deactivated)
Trimmer Description of functions
SENS
Sensitivity
It adjusts the obstruction detection sensitivity during gate movement.
Minimum sensitivity (-) or maximum sensitivity (+).
A.C.T.
Automatic Closing Time
It regulates the open barrier's waiting time. Once this time elapses, a closing maneuver automatically takes place.
The waiting time may be adjusted to between 1 and 120 seconds
Trimmer adjustments
