Activating the radio control

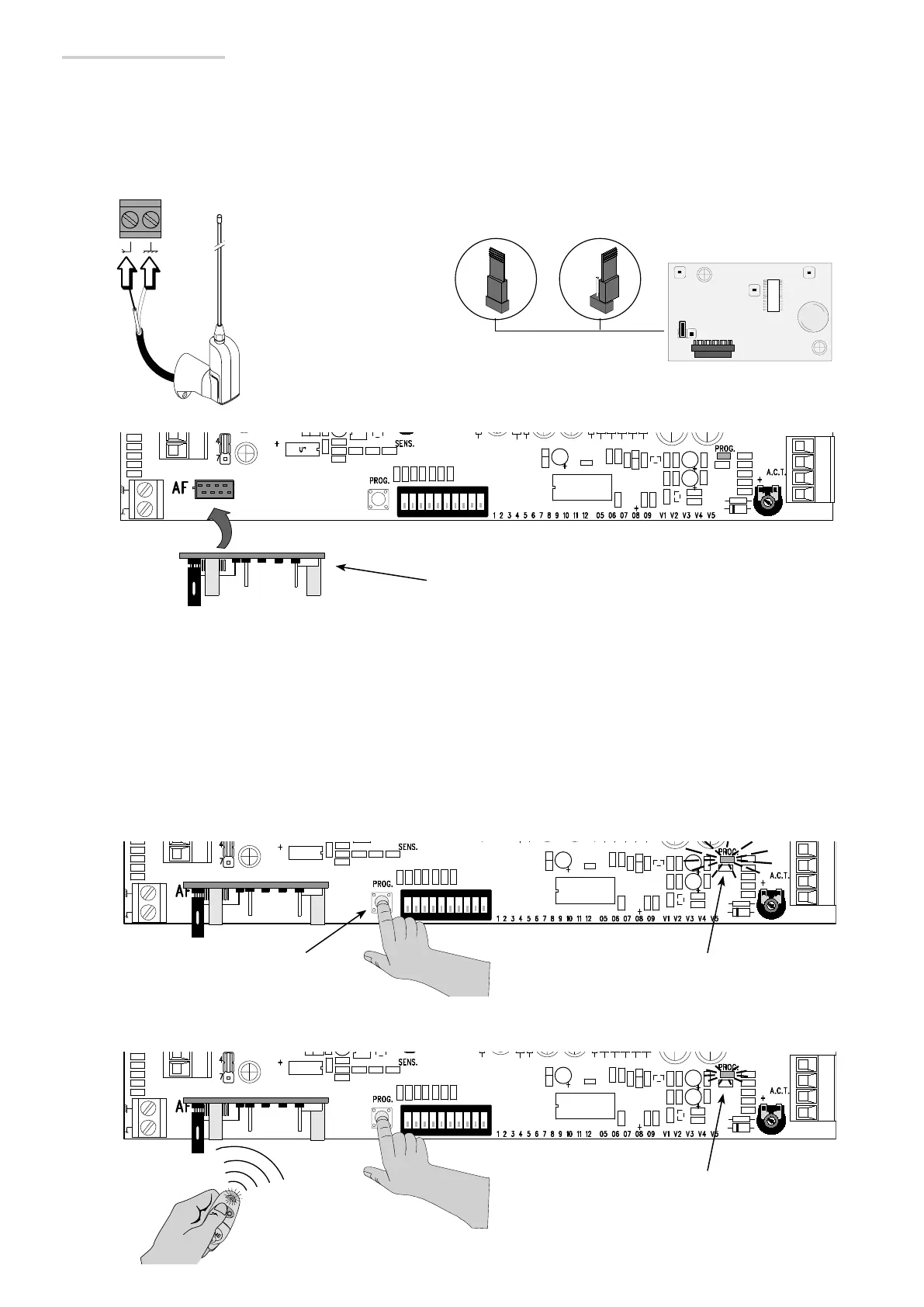

Connect the RG58 cable antenna cable to the corresponding terminals .
 For TOP, TAM and TWIN series transmitters with 433.92 MHz frequency, set the AF card jumper as shown in the figure .
Fit the AF card into the control board connector .
⚠
Before fitting the AF card, you MUST CUT OFF THE MAIN POWER SUPPLY and, remove any emergency batteries.
Keep the PROG programming button pressed on the control board. The programming LED will fl ash .
Press a button on the transmitter you wish to memorize. The LED stays lit to confi rm that the transmitter is now memorized. .
PROG key
Programming LED
AF card
Programming LED

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
