CAME GARD 8 SERIES Installation And Operation Manual



3
4
C
A
M
E
R
p.
19
19 - Manual code:
FA01036-EN
FA01036-EN v.
1
- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

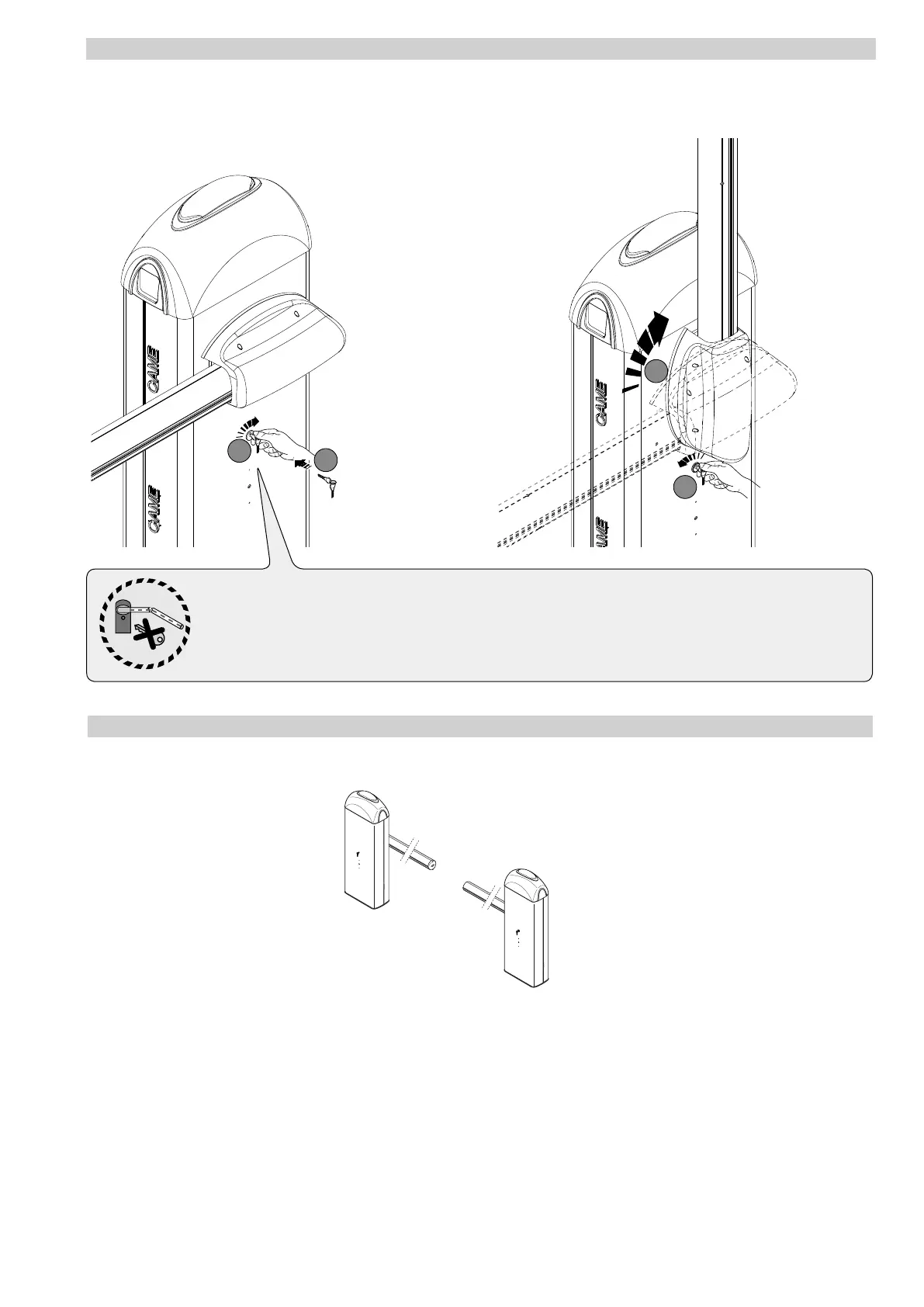

RELEASING THE BOOM
⚠
This procedure must be done with the main power cut o .
Fit the key into the lock and turn it clockwise. Manually lift the boom and lock it again by turning the key counter clockwise.
⚠
WARNING! This operation is potentially hazardous for user, when for whatever reason, such as the boom being
badly fastened, ripped out or broken during an accident, and so on, the loosened springs no longer provide the
proper balancing action. This could lead to a sudden rotation of the boom attachment and/or of the boom itself.
Establish which will be the Master barrier and which the Slave barrier.
PAIRED CONNECTION WITH A SINGLE COMMAND
MASTER
SLAVE

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
