p.
10
10 - Manual code:
119PM75
119PM75 v.
4
4 10/2014 © CAME S.p.A. - The data and information in this manual may be changed at any time and without notice.
ENGLISH

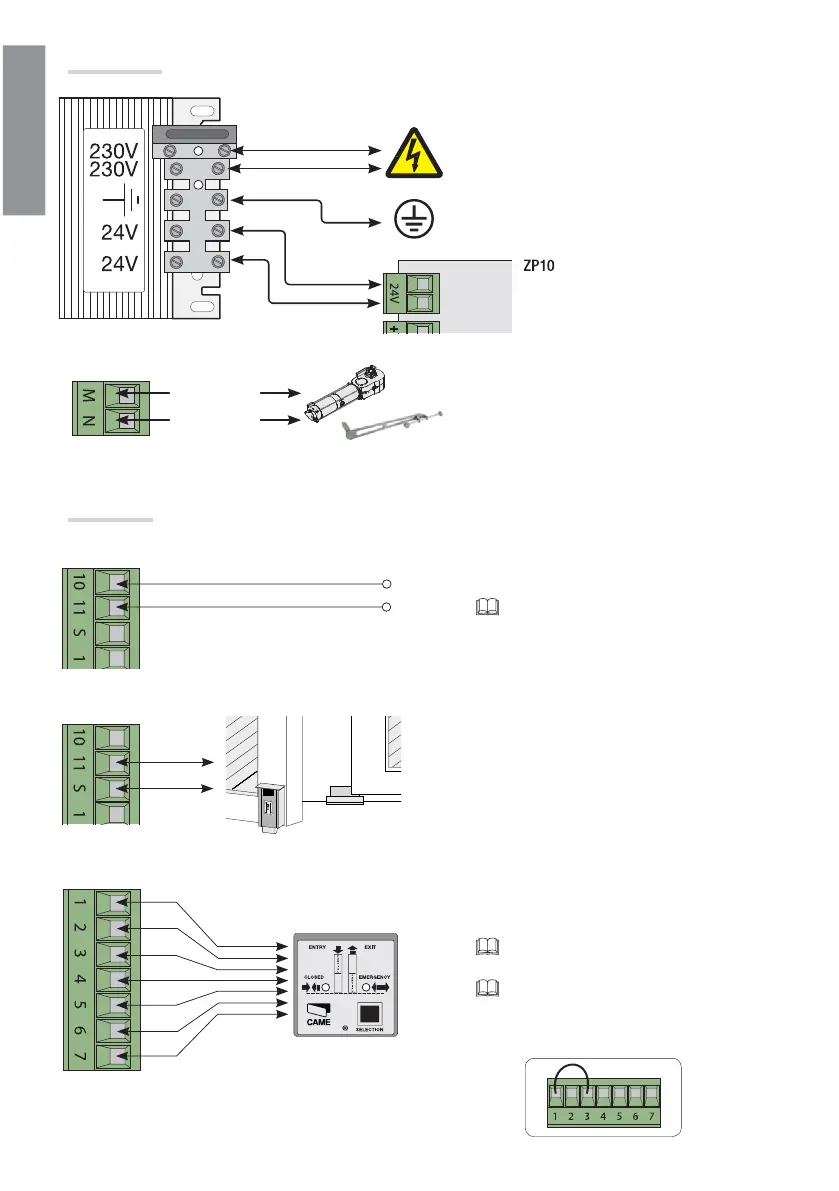

Power supply 230 V AC 50/60 Hz
Power supply
Accessories
Functions selector connection.
The partial opening function cannot be
activated from the selector.
To get the antipanic function without the
selector, bridge contacts 1-3.
10 - 11 Accessories power-supply output 24 V AC.
The connected accessories must not
exceed 15 W overall.
M - N Default gearmotor connection for the PB1001
arm.
With the PB1002 invert cables M-N.
11 - S Electrolock connection 12 V DC - 15 W max.
brown
blue
