QUADRO COMANDO
ZP10
+ VEL. -
CHIUSURA
FUSIBILE
ACCESSORI
2 A
FUSIBILE
CENTRALINA
630 mA
FUSIBILE
MOTORE
5 A
APERTURA
+ RALL. -
- FORZA +
+ T.C.A. -
QUADRO COMANDO
ZP10
+ VEL. -
CHIUSURA
FUSIBILE
ACCESSORI
2 A
FUSIBILE
CENTRALINA
630 mA
FUSIBILE
MOTORE
5 A
APERTURA
+ RALL. -
- FORZA +
+ T.C.A. -
+ VEL. - + RALL. -
+ T.C.A. -
- FORZA +
p.
12
12 - Manual code:
119PM75
119PM75 v.
4
4 10/2014 © CAME S.p.A. - The data and information in this manual may be changed at any time and without notice.
ENGLISH

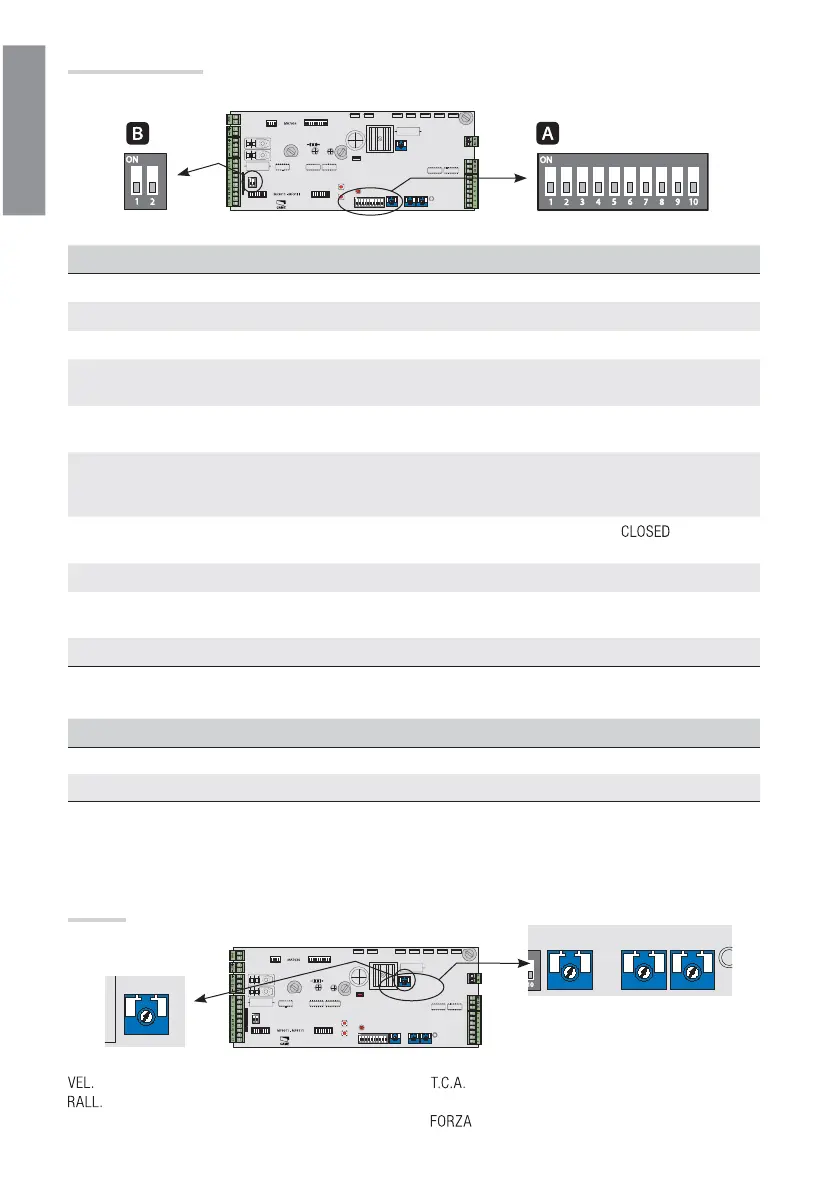

Selecting functions
Selector 󱵢
DIP-SWITCH Alarm
1 See the PAIRED CONNECTION chapter.
2 See the PAIRED CONNECTION chapter.
3 Unused, keep the DIP switch on OFF
4 ON
Obstruction detection when gate leaves are at the end of their travel (it inhibits contacts 2-M, 2-R1
and 2-R2).
5 ON
It activates the step-by-step function on 2-M (it excludes automatic closing and contacts 2-R1 and
2-R2).
6 ON
Wind stop/Jolt Stop: this function prevents opening of the door leaves in strong winds (Wind Stop).
It is automatically excluded when the battery powered anti-panic is activated. If the electrolock is
connected, it facilitates its release (Jolt Stop).
7 ON
Push & Go: push to open the leaves function. It can be excluded by selecting
doors on the
selector.
8 OFF Reopening during closing with safety device on 2-C1.
9 ON
Obstruction wait: the door leaf stops during opening, if input R2 detects and obstruction. Once the
obstruction is removed, the door leaf starts moving again.
10 ON Enables memorization of the door travel.
Selector 󱵣
DIP-SWITCH Alarm
1 ON Excluding the microphotocells.
2 Unused, keep the DIP switch on OFF.
Settings
Setting the opening speed.
Setting the slow-down speed.
Setting the automatic closing time from 1 to 16
seconds.
Setting the motor force.
