QUADRO COMANDO
ZP10
+ VEL. -
CHIUSURA
FUSIBILE
ACCESSORI
2 A
FUSIBILE
CENTRALINA
630 mA
FUSIBILE
MOTORE
5 A
APERTURA
+ RALL. -
- FORZA +
+ T.C.A. -
p.
9
9 - Manual code:
119PM75
119PM75 v.
4
4 10/2014 © CAME S.p.A. - The data and information in this manual may be changed at any time and without notice.
ENGLISH
Warning! Before working on the control panel, cut off the main current supply and, if present, remove any
batteries.
Control board power supply, control devices and accessories: 24 V.
The features are set using the DIP switches, the adjustments using the trimmer.
All connections are quick-fuse protected.
Fuse table
Line 5 A-F
Control board (
) 630 mA-F
Accessories (
) 2 A-F
Motor (
) 5 A-F
The control board constantly controls the motor thrust value. If the door runs into an obstacle:
- it reopens if it is closing
- it recloses if it is opening
Warning: after three consecutive obstruction detections, the door will block. For it to resume movement, remove
the obstruction and press the control button or transmitter button.

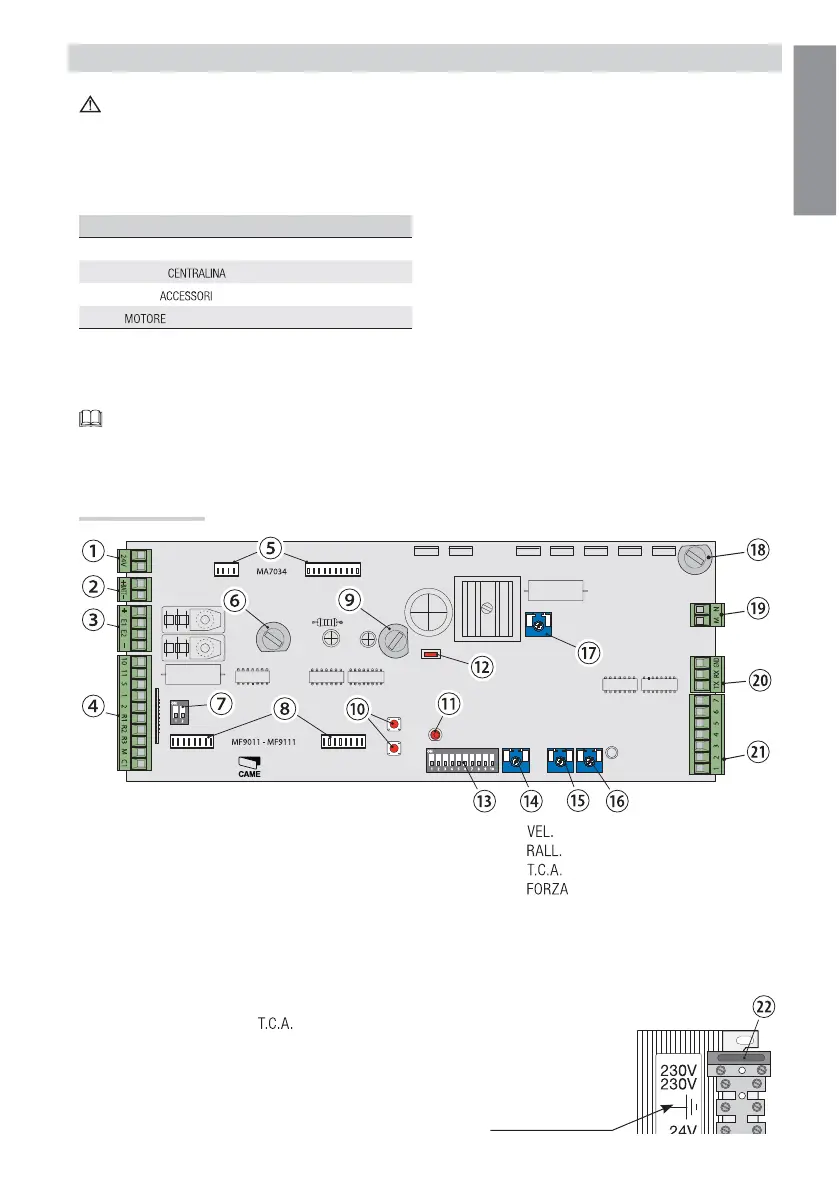

Main components
1. Transformer terminals
2. Batteries terminals
3. Encoder terminals
4. Accessories terminals
5. MA7034 card connector
6. Accessories fuse
7. Functions selector 2 DIP switches
8. MF9011/9111 card connector
9. Control board fuse
10. Programming buttons
11. Coding/Counting LED
12. RESET button
13. Functions selector 10 DIP switches
14. Trimmer
: travel speed setting
15. Trimmer : slow-down speed setting
16. Trimmer : automatic closing setting
17. Trimmer : motor force setting
18. Motor fuse
19. Gearmotor terminals
20. Terminals for connecting 2 paired motors
21. MA7041 functions selector terminals
22. Line fuse
ELECTRICAL CONNECTIONS AND PROGRAMMING
Transformer
