04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

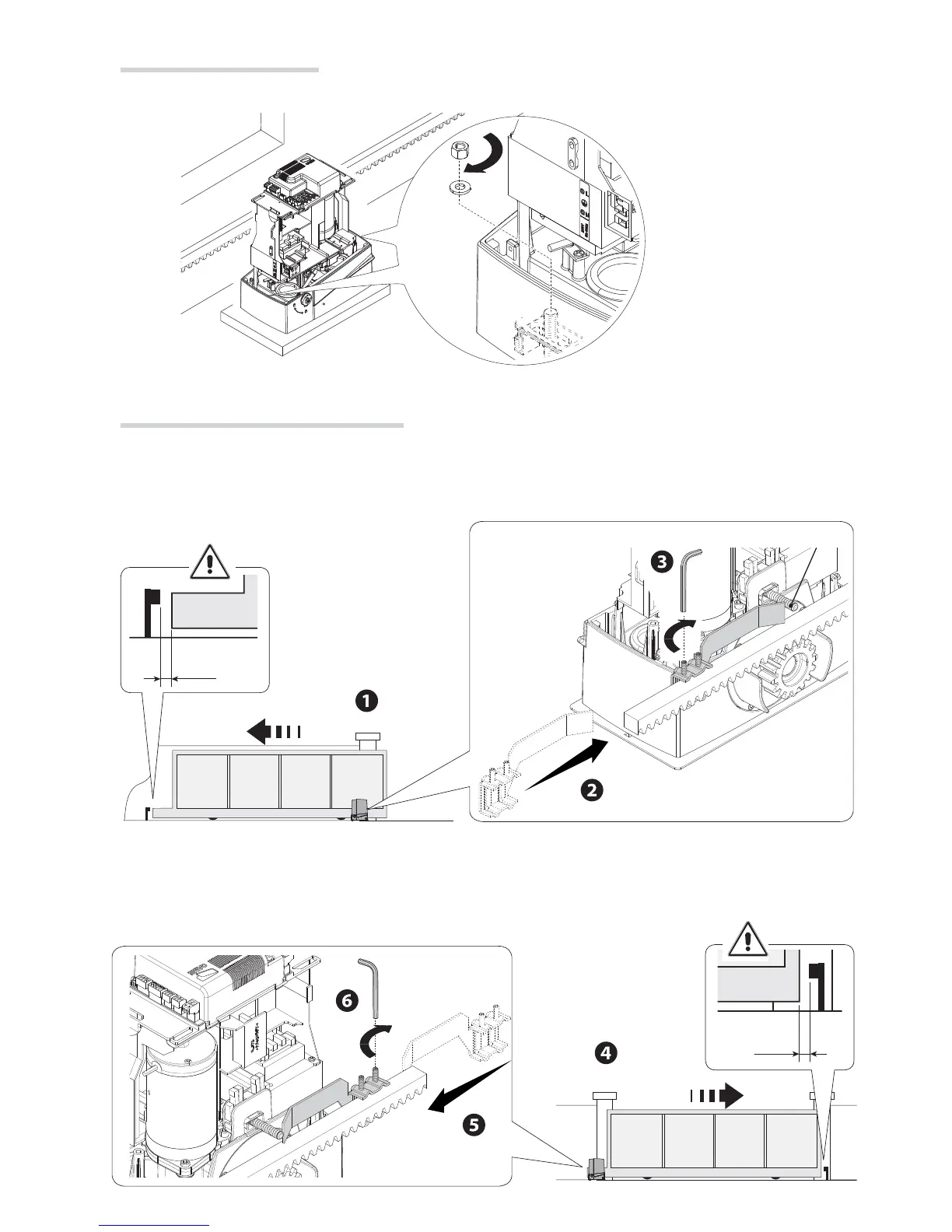

Fastening the gearmotor
Complete the adjusting, fasten the gearmotor to the plate using the washers and nuts.
Establishing the limit-switch points
For opening:
- open the gate ;
- fi t the opening limit-switch fi n onto the rack until the micro switch activates (spring) and fasten it using the grub
screws .
For closing:
- close the gate ;
- fi t the closing limit-switch fi n into the rack until the micro-switch is activated (spring) and fasten it using the grub
screws .
Spring
