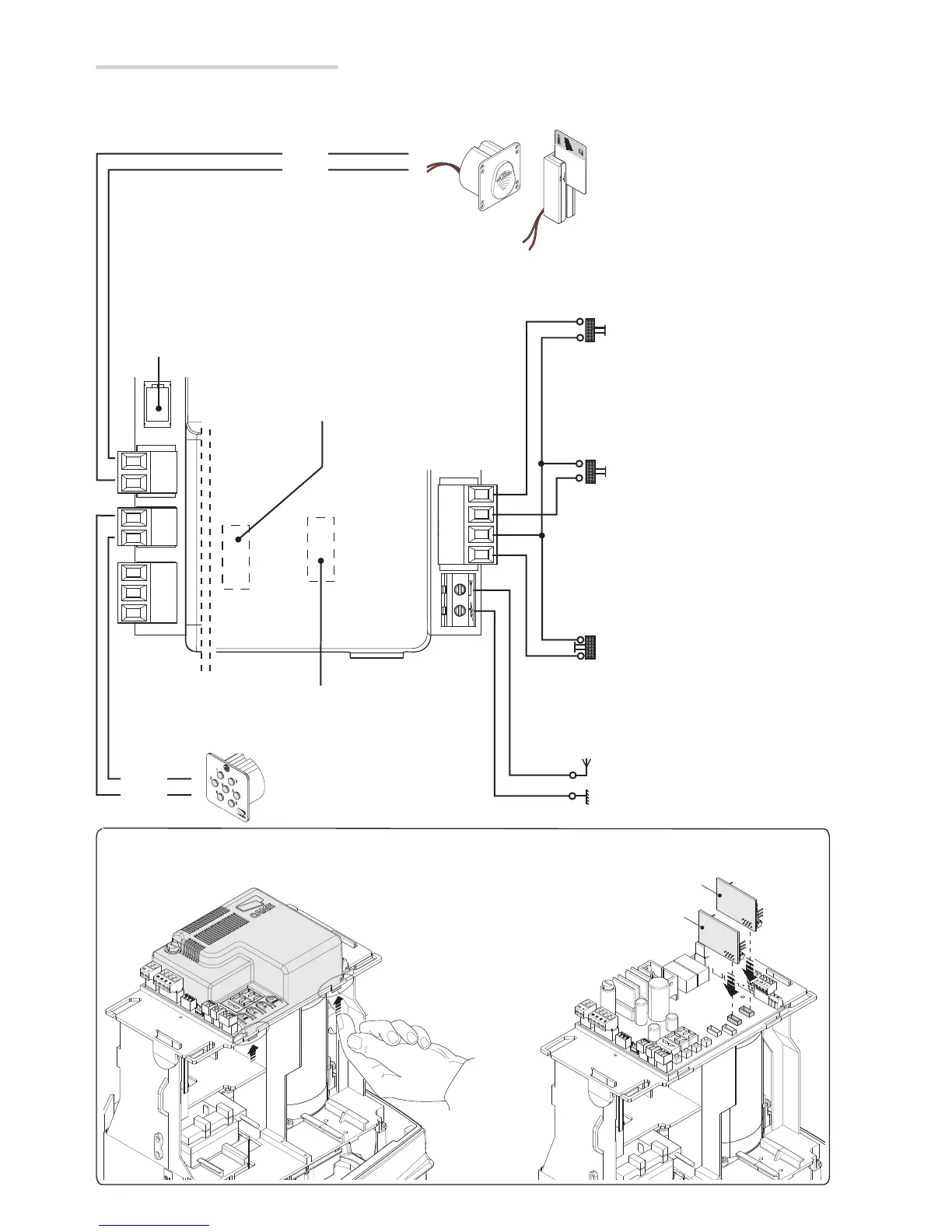

Command and control devices
OPEN or PARTIAL OPENING
function from control device (NO
contact). See function F8.
STOP button (NC contact). For
stopping the gate while excluding
automatic closing. To resume
movement press the control
button or use another control
device. See function F1.
OPEN-CLOSE-INVERT function
(step-step) from control device
(NO contact). Alternatively, from
the functions programming you
can activate the single command
OPEN-STOP-CLOSE-STOP
(sequential). See function F7.
To be able to snap in the cards into the dedicated connectors, remove the card cover.
WARNING! For the system to work properly, before fi tting any plug-in card, such as the AF or R800 one, you MUST
CUT OFF THE MAINS POWER SUPPLY and, if present, disconnect any batteries.
Connector for AF card (AF868 or
AF43S) for remote control.
Keypad selector.
Connector for the R700 card
(for using the transponder
or the card reader) or for
the R800 card (for using the
keypad selector).
Transponder or card reader.
Antenna with cable RG58 for
remote control.
Blue
White
Black
Red
GSM module connector
(for controlling from a
mobile device).
 The GSM does
not work if the RGP1
module is connected.
