CAME SDN8 User Manual

240
400
300
4
0
󱵢
p.
7
7 - Manual code
FA 00 014- EN
FA00014-EN v.
3
3
04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

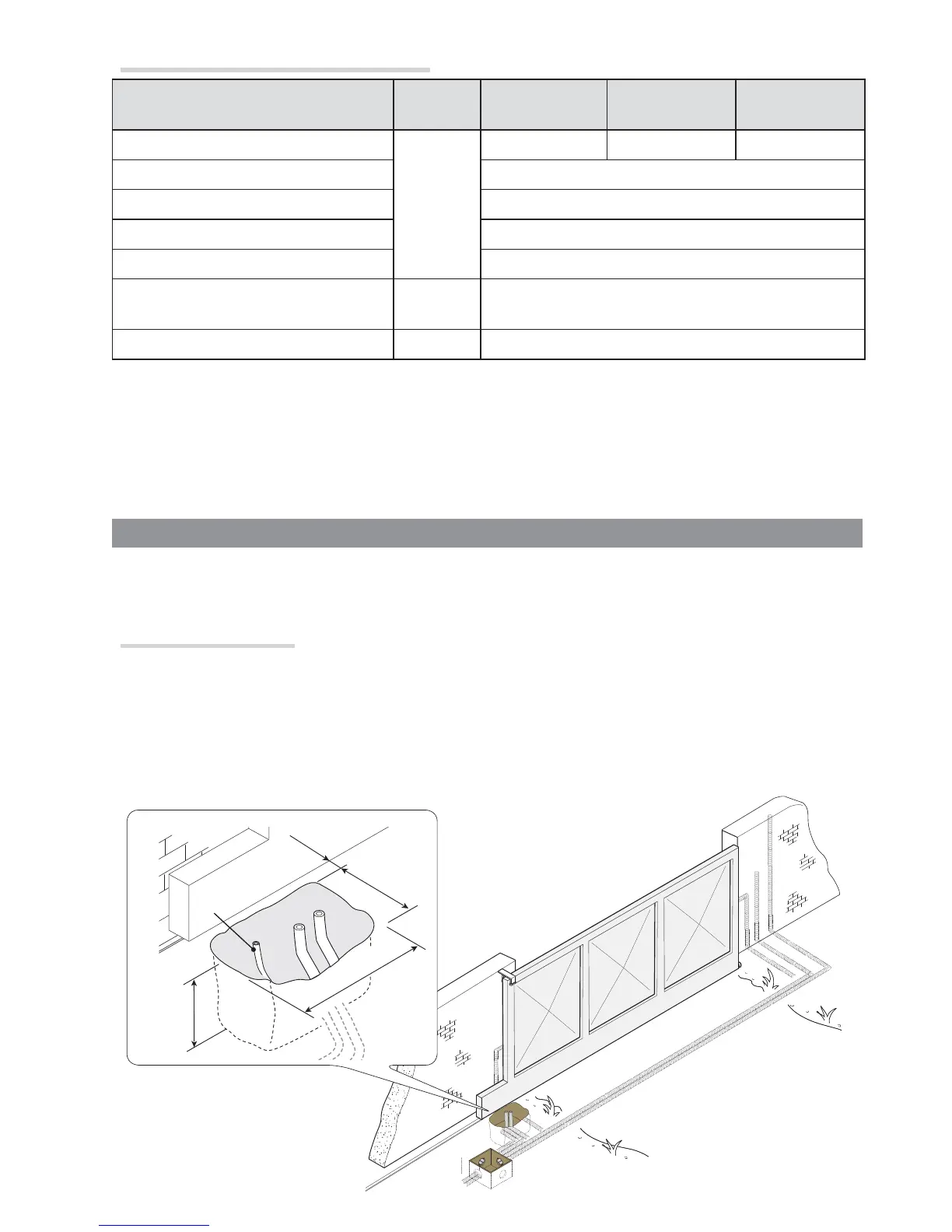

Cable types and minimum thicknesses
Connection Cable type
Cable length
1 < 10 m
Cable length
10 < 20 m
Cable length
20 < 30 m
Control panel power supply 230 V AC
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1.5 mm
2
3G x 2.5 mm
2
3G x 4 mm
2
Flashing light 2 x 0.5 mm
2
Photocell transmitters 2 x 0.5 mm
2
Photocell receivers 4 x 0.5 mm
2
Command and safety device 2 x 0.5 mm
2
Antenna
the RG58
antenna
max 10 m
Paired connection or CRP UTP CAT5 max 1000 m
 If cable lengths di er from those specifi ed in the table, establish the cable sections depending on the actual
power draw of the connected devices and according to the provisions of regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, the dimensions on the table need to be recalculated according
to the actual power draw and distances. For connecting products that are not contemplated in this manual, see the
literature accompanying said products
INSTALLATION
⚠
The following illustrations are mere examples. Consider that the space available where to fi t the barrier and
accessories will vary depending on the area where it is installed. It is up to the installer to fi nd the most suitable
solution.
Corrugate tube laying
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for making the connections coming out of the junction pit.
For connecting the gearmotor we suggest using a Ø 40 mm corrugated tube, whereas for the accessories we
suggest Ø 25 mm tubes.
Set up a Ø 20 mm tube for running through the external release cable 󱵢.
 The number of tubes depends on the type of system and the accessories you are going to fi t.
(mm)
