04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.
Technical data
Type SDN4 SDN6 SDN8 SDN10
Protection rating (IP) 44 44 44 44
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC 230 AC
Power supply motor (V) 24 DC 24 DC 24 DC 24 DC
Stand-by consumption (W) 5.5 5.5 5.5 5.5
Stand-by consumption with the RGP1 (W) module 0.5 0.5 0.5 0.5
Maximum power (W) 170 270 400 400
Duty cycle
INTENSIVE
USE
INTENSIVE
USE
INTENSIVE
USE
INTENSIVE
USE
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Thrust (N) 350 600 800 1000
Maneuvering speed (m/min) 12 12 11 11
Weight (Kg) 10 10.5 11.5 11.7

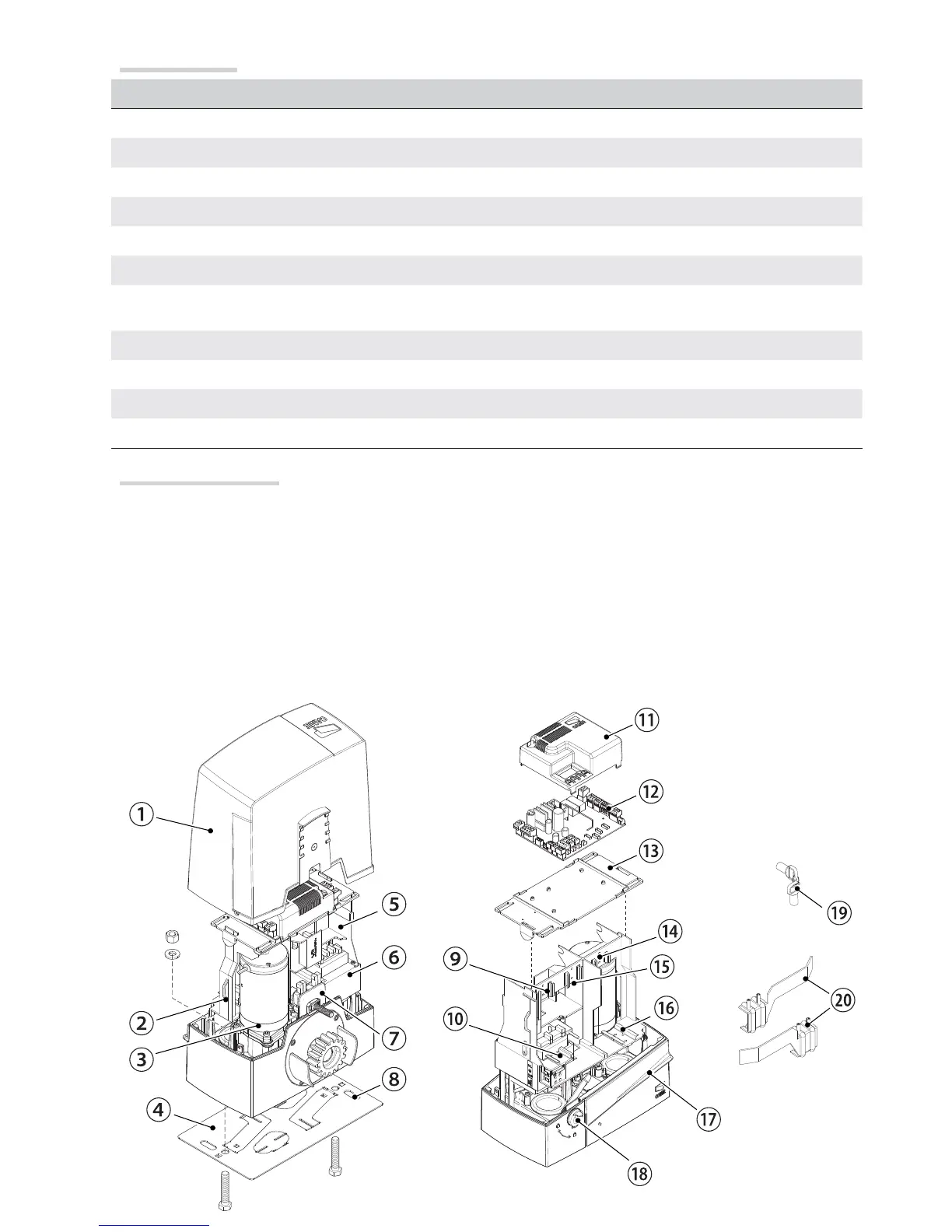

Description of parts
1. Cover
2. Board-fi tting support
3. Gearmotor
4. Anchoring plate
5. Housing for two emergency batteries
6. Transformer
7. Mechanical limit switch
8. Release cable threading hole
9. Housing for the RGP1 module
10. Housing for thermostat with heating rod
11. Protection card lid
12. Control board
13. Control-board holder
14. Housing for the RLB39 battery charger
15. Housing for the GSM module
16. Housing for the SMA sensors
17. Release lever
18. Lock
19. Release key
20. Limit-switch fi ns
