3 04/2016 - © Came S.p.A. The contents of this manual may be changed at any time without prior notice.

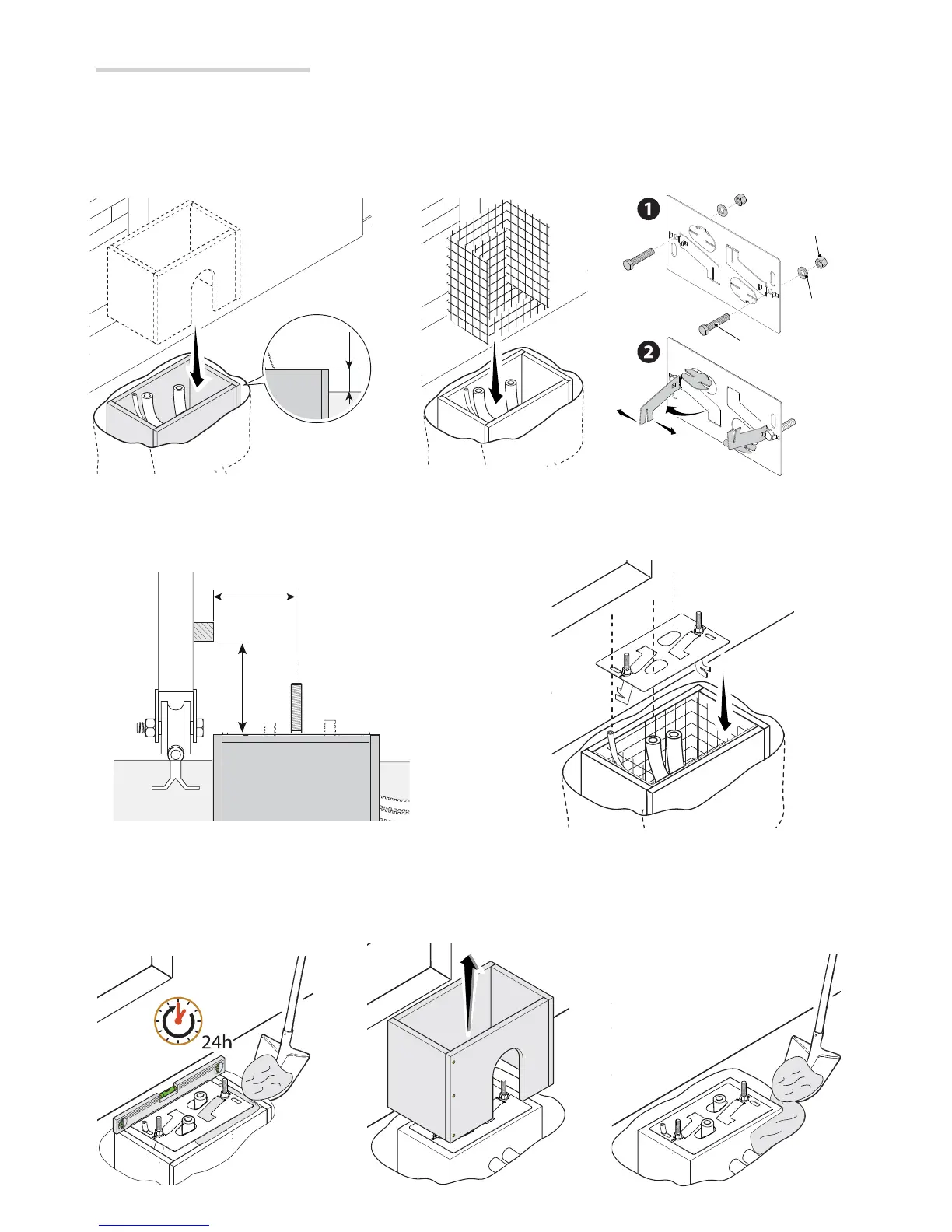

Laying the anchoring plate
Set up a foundation frame that is larger than the anchoring plate and sink it into the dug hole. The foundation frame
must jut out by 50 mm above ground level.
Fit an iron cage into the foundation frame to reinforce the concrete.
Fit the bolts into the anchoring plate and lock them using the washers and nuts. Remove the pre-shaped clamps
using a screw driver or pliers.
If the rack is already there, place the anchoring plate, being careful to respect the measurements shown in the
drawing.
Careful! The tubes must pass through their corresponding holes.
Fill the foundation frame with concrete. The plate must be perfectly level with the bolts which are entirely above
surface.
Wait at least 24 hrs for the concrete to solidify.
Remove the foundation frame and fi ll the hole with earth around the concrete block.
