CAME STYLO Series User Manual

Ø 3,5 x 9,5
STYLO-BS
STYLO-BD
UNI 6593 Ø 6x18
UNI 5739 Ø 6x10
Pag.
11
11 -
Manual code
:
119DV11
119DV11 ver.
1.0
1.0 03/2010
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

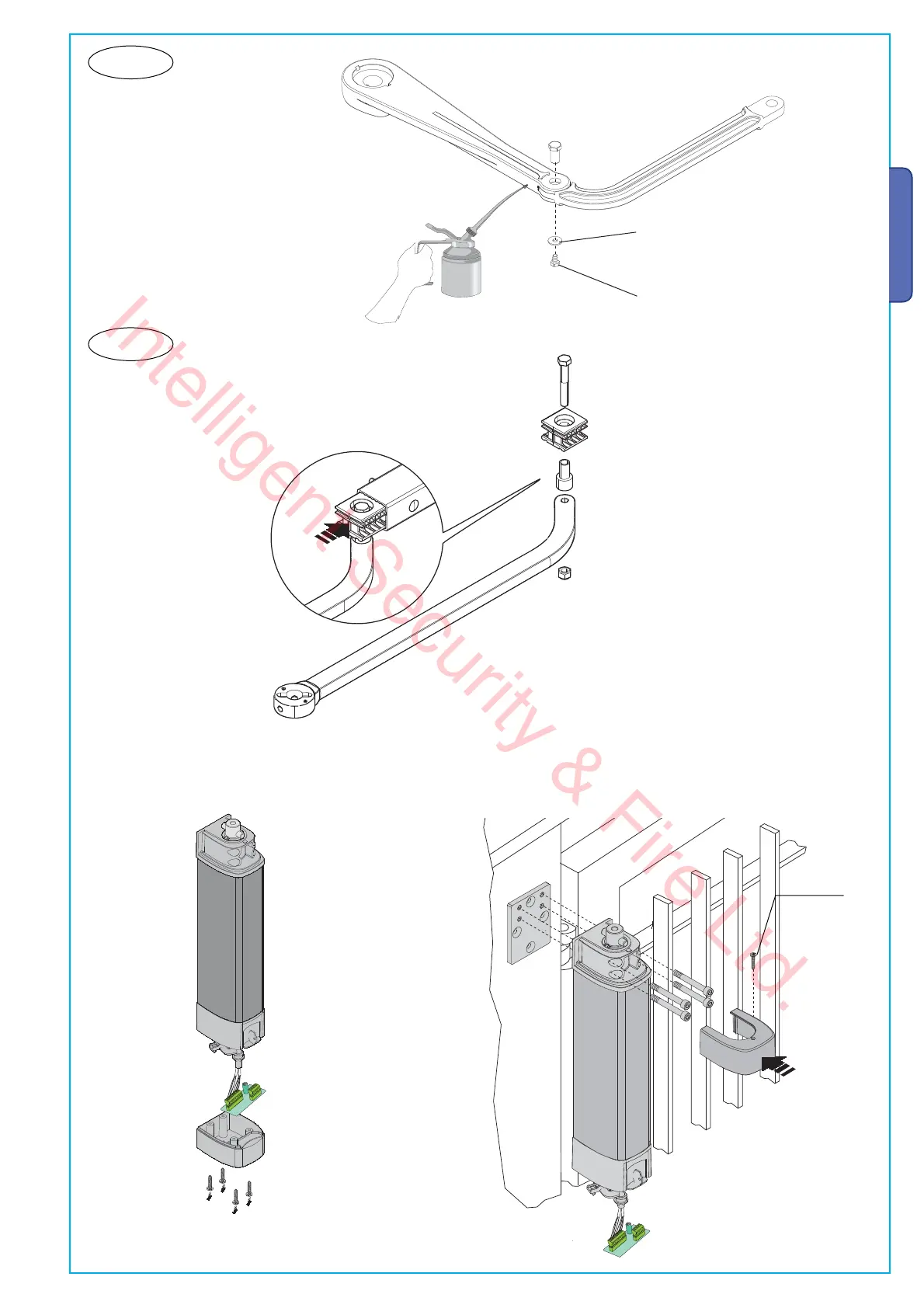

3) Remove the lower cap from the gearmotor. 4) Secure the gearmotor to the fl ange using the four issued
bolts. Secure the upper cap.
2a) Assemble the hinged-arm by
joining the two half-arms with nuts
and bolts. Lubricate the rotation
pins.
2b) Assemble the slide guide to the
transmission arm as shown in the drawing.
Insert the guide into the rail.
