CAME STYLO Series - STYLO-BS Arm Attachment; Hinged Arm to Shaft Connection; STYLO-BD Arm Attachment; Straight Arm to Shaft Connection

STYLO-BS
STYLO-BD
UNI 6593 Ø 10x30
UNI 5739 Ø 10x14
UNI 6592 Ø 12x24
UNI 6593 Ø 6x18
UNI 5739 M6x10
UNI 6954
Ø 3,9 x 9,5
Ⓐ
Ⓑ
Ⓒ
Ⓐ
Ⓑ
Pag.
12
12 - Manual code:
119DV11
119DV11 ver.
1.0
1.0 03/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

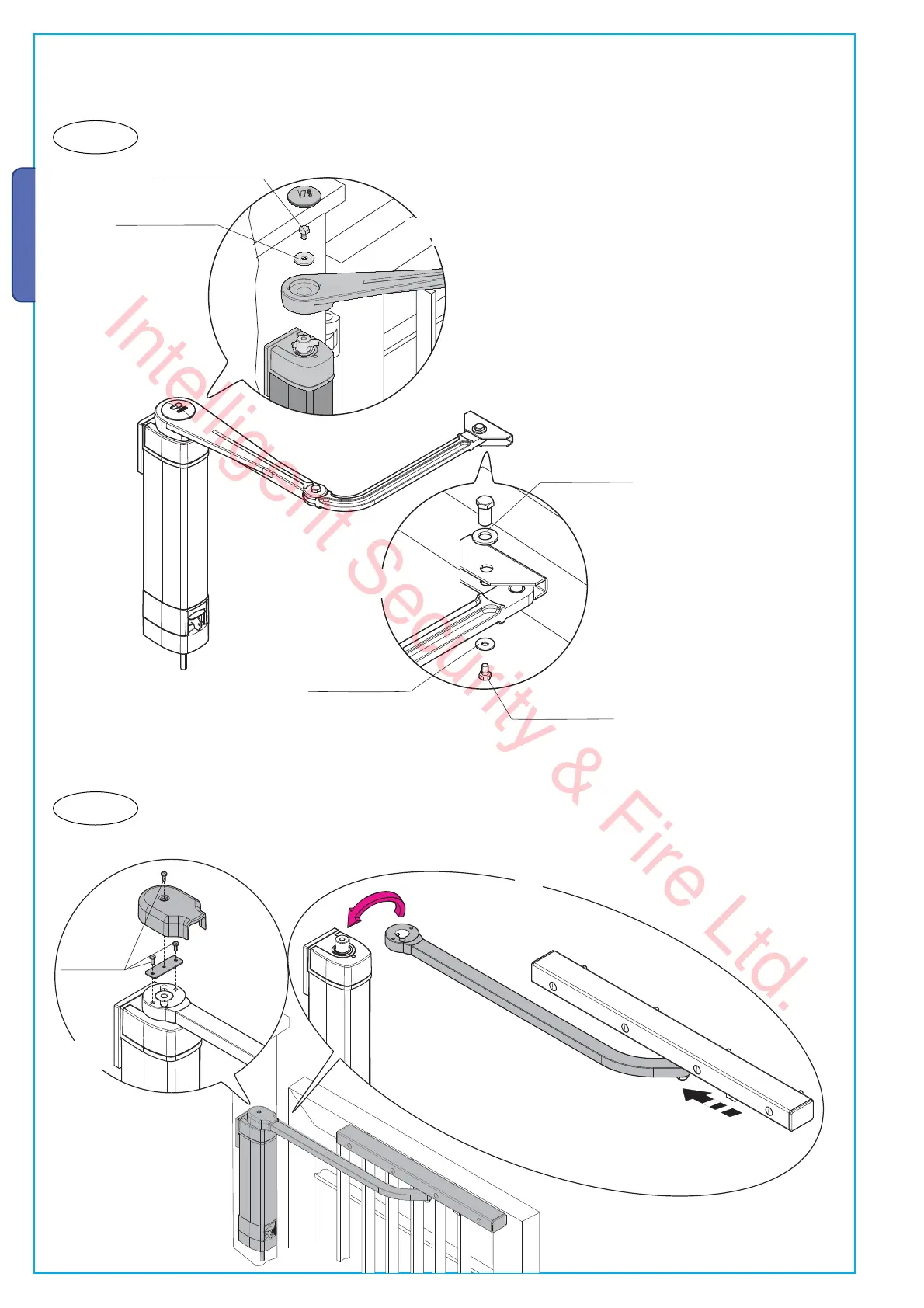

5a) a) insert the hinged-arm onto the gearmotor shaft and secure it using the washer and bolt;
b) release the gearmotor, open the gate leaf and hook the arm using the nuts and bolts;
c) Cover the hole using the cap.
5b) a) Assemble the straight arm onto the gearmotor shaft.
b) Cover the hole with the cap and secure it using the supplied screws.
