3-6

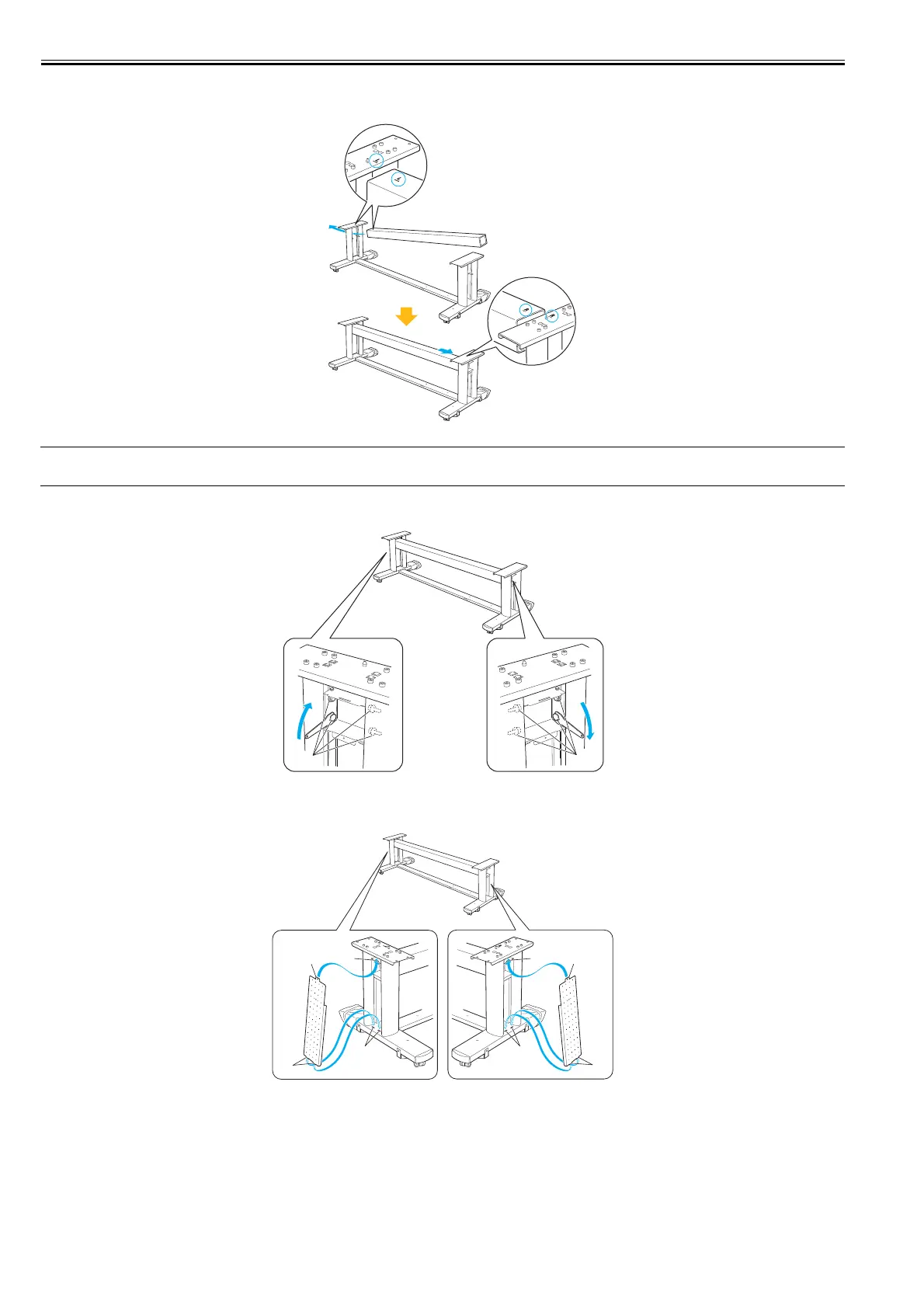

4) Insert the left end of the top stand stay into the side hole [1] on the left stand leg, and insert the right end of the top stand stay into the side hole [2] on the right

stand leg, pushing the stay in completely.

F-3-9

MEMO:

Insert the left end of the top stand stay first. The right end can only be pushed into a restricted position.

5) Secure the top stand stay to the left and right stand legs using the four M8 hex bolts on each side.

F-3-10

6) Attach the leg cover to the left and right stand legs. Insert the protrusion [1] of the leg cover into the groove [2] of the top stand stay. Insert the protrusion [3] of

the leg cover into the groove [4] of the bottom stand stay.

F-3-11
