Canon imagePROGRAF iPF8000S Service Manual

Chapter 4
4-23

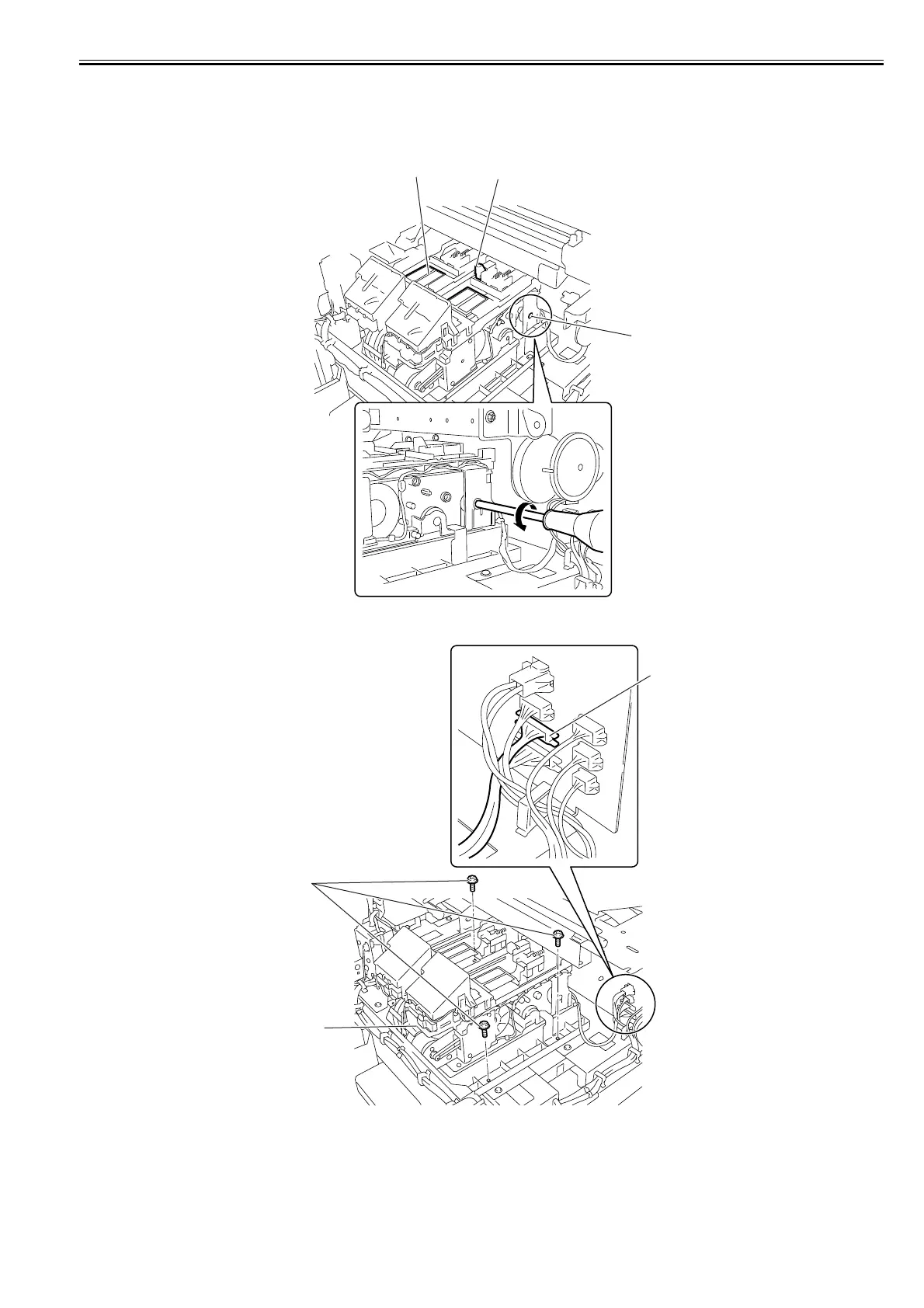

4.3.9 Purge Unit
0014-8978
a) Removing the purge unit
1) Turn off the power and move the carriage to above the platen. If the carriage is locked at its home position, insert a Phillips screwdriver from the right side into
hole [1] in the shaft of the lift unit in the purge unit and turn it counterclockwise. This will lower cap [2] and lock pin [3], allowing the carriage to be moved.
F-4-39
2) Remove connector [1] and three screws [2] and then remove purge unit [3].
F-4-40
[1]
[3]
[2]
[1]
[2]
[3]
