Chapter 1
1-19

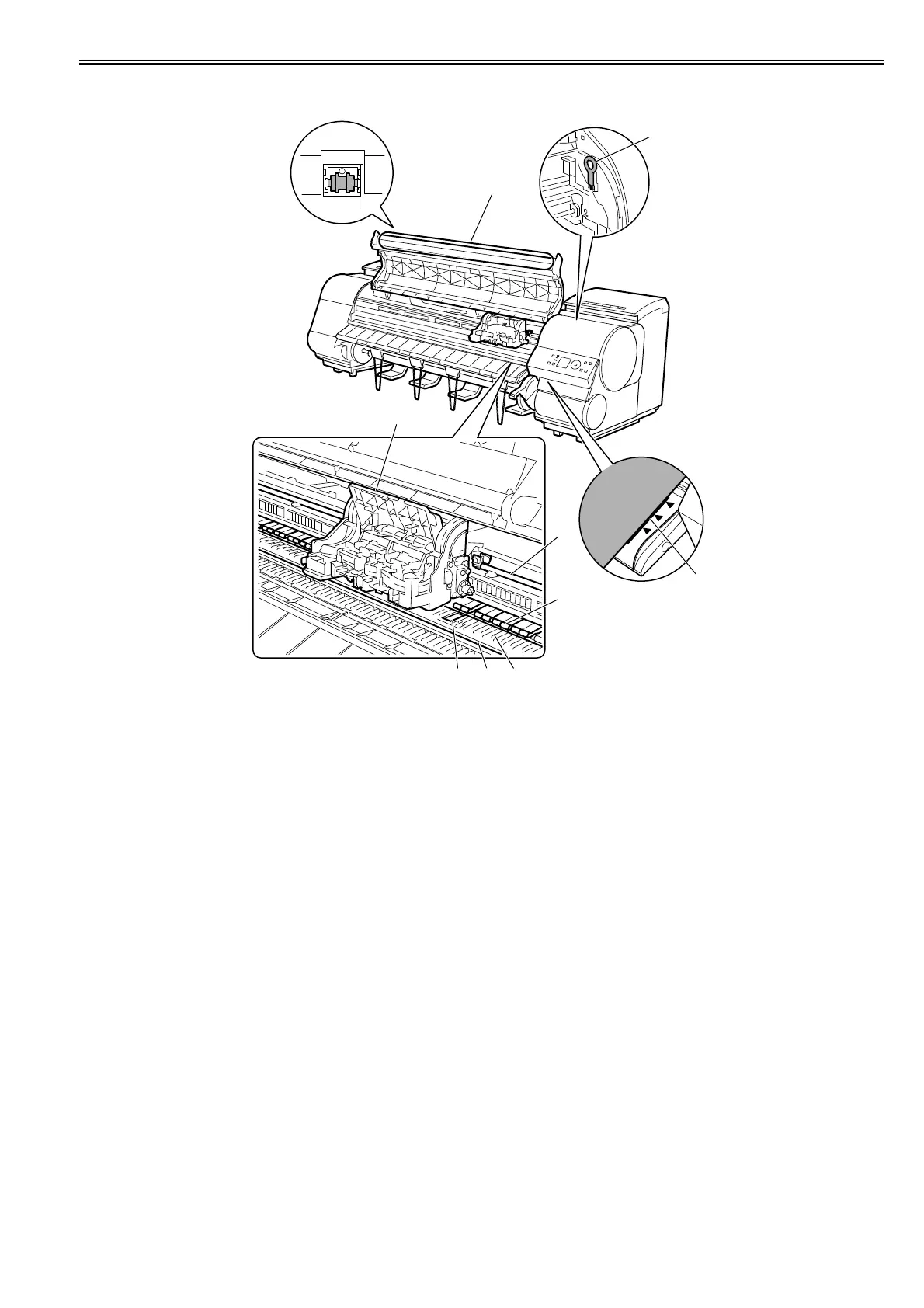

1.5.3 Top Cover (Inside)
0017-8292
F-1-16
[1] Top Cover Roller
Prevents paper from rising when ejected.
[2] Carriage
Moves the Printhead. The carriage serves a key role in printing.
[3] Borderless Printing Ink Grooves
These grooves catch ink outside the edges of paper during borderless printing.
[4] Fixed Blade
The Cutter Unit passes through this blade to cut paper.
[5]Platen
The Printhead moves across the platen to print. The Vacuum holes on the platen hold paper in place.
[6] Pinch Roller
Important in supplying the paper. This retainer holds paper as it is fed.
[7] Carriage Shaft
The Carriage slides along this shaft.
[8] Paper Alignment Line
Align paper with this line when loading it.
[9] Cleaning Brush
When cleaning inside of the Top Cover, use this brush to sweep away paper dust on the Platen.
[1]
[2]
[7]
[8]
[6]
[5][4][3]
[9]
