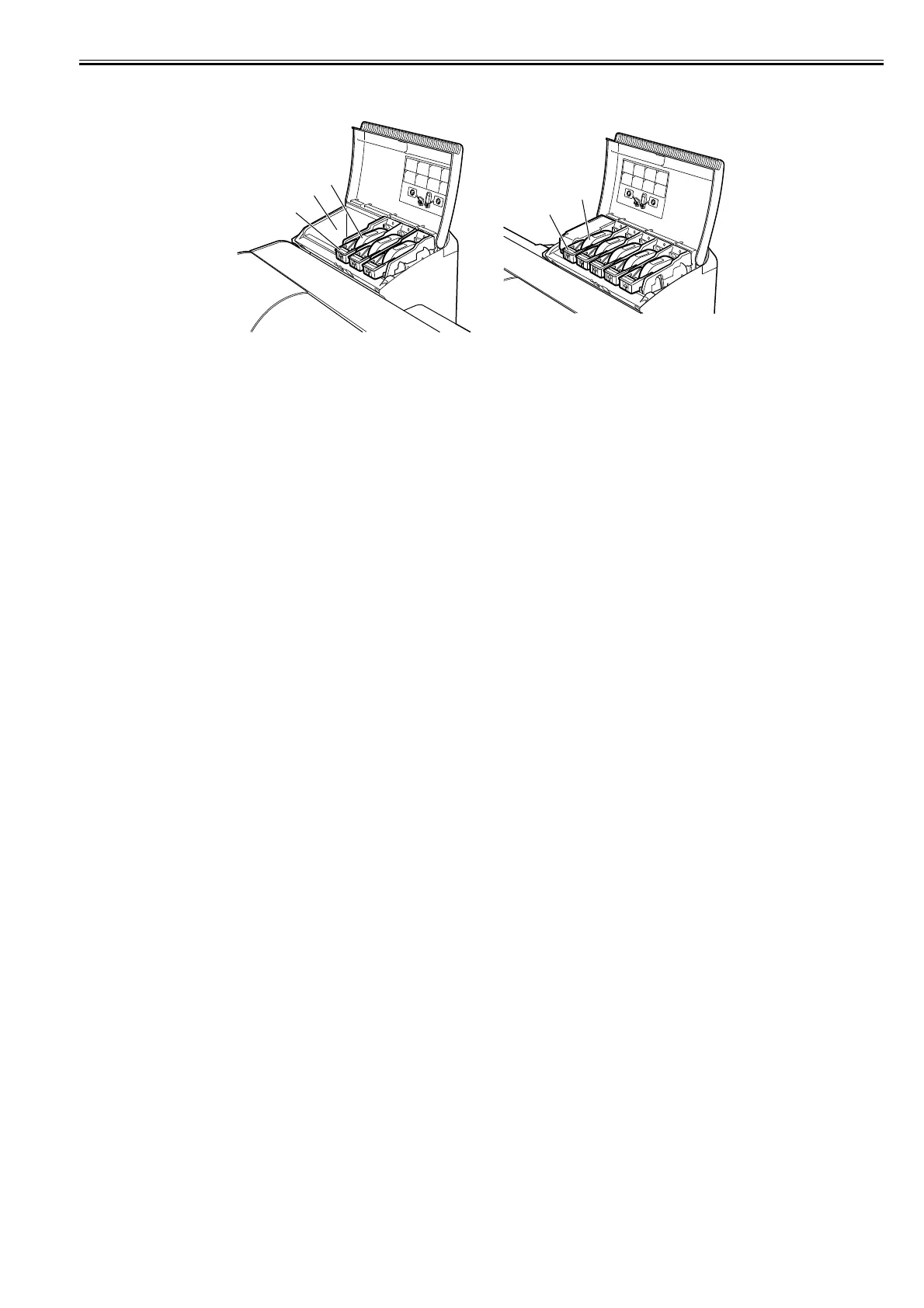

1.5.5 Ink Tank Cover (Inside)
0012-6273
F-1-18
[1] Ink Tank
Cartridges of ink in each color.
[2] Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink Tank. To open it, lift the stopper of the
lever until it stops, and then push it down toward the front. To close it, push it down until it clicks into place.
[3] Accessory Box
Holds CD-ROM included with the printer, reserved printhead, and other items.
<Left> <Right>
[2]
[1]
[2]
[1]
[3]
