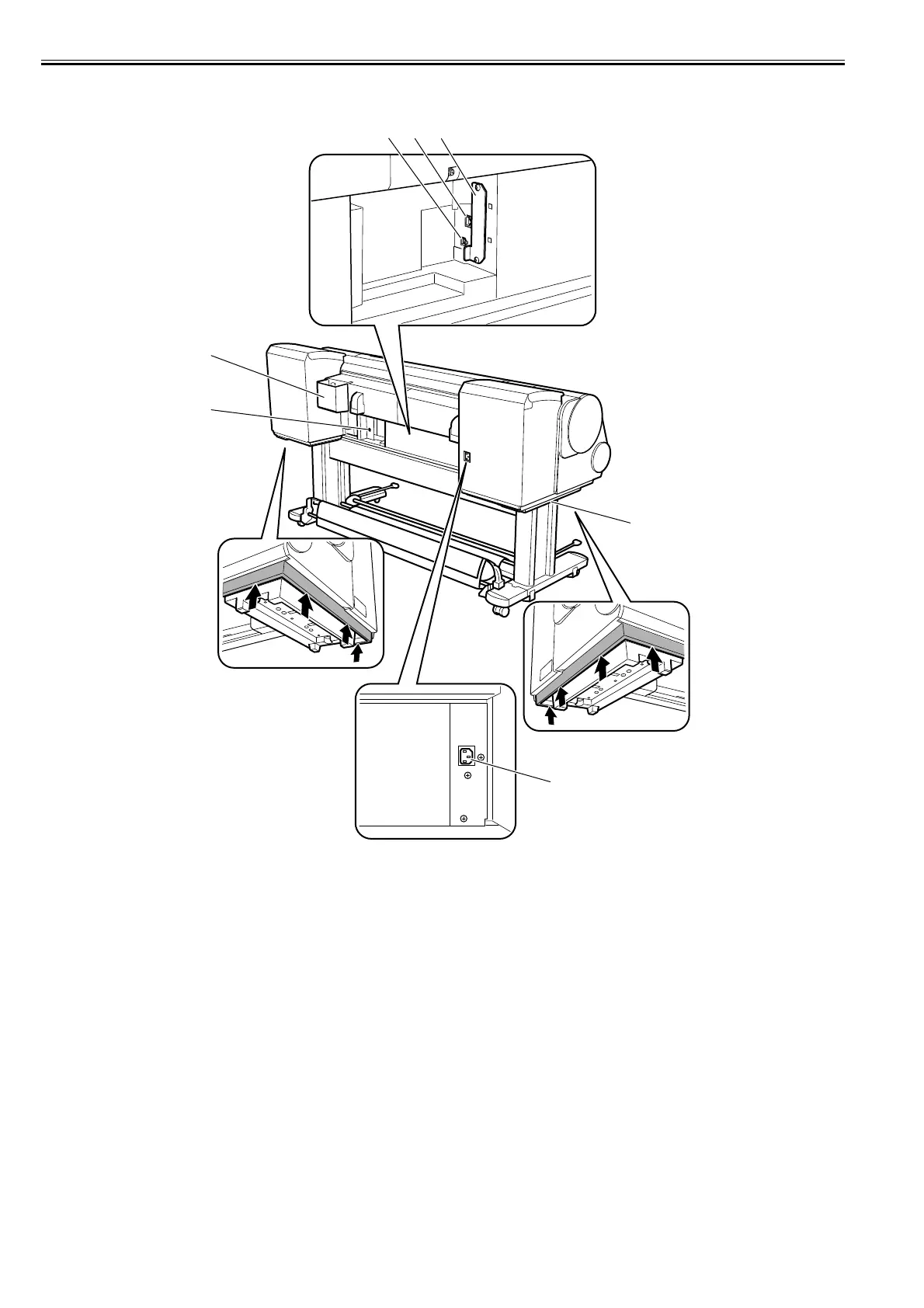

1.5.2 Rear
0014-8838
F-1-15
[1] Expansion Board Slot
Install an IEEE 1394 (FireWire) expansion board, as desired.
[2] Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly and communication is possible between the computer
and printer.
[3] USB Port
Connect a USB cable to this port. This port is compatible with USB 2.0 Hi-Speed mode.
[4] Accessory Pocket
Holds printer manuals, assembly tools, and other items.
[5] Media Take-up Unit Power Inlet
Connect the power cord of the Media Take-up Unit here.
[6] Power Supply Connector
Connect the power cord to this connector.
[7] Carrying handles
When carrying the printer, have six people hold it by these handles under both sides.
