Chapter 4
4-13
m) Release lever
Removing the release lever
1) To remove release lever [1], remove the purge unit and then remove the release lever. To do so, keep pinch roller [2] pressurized to ease the work of phase
alignment during gear installation.
Reinstalling the release lever

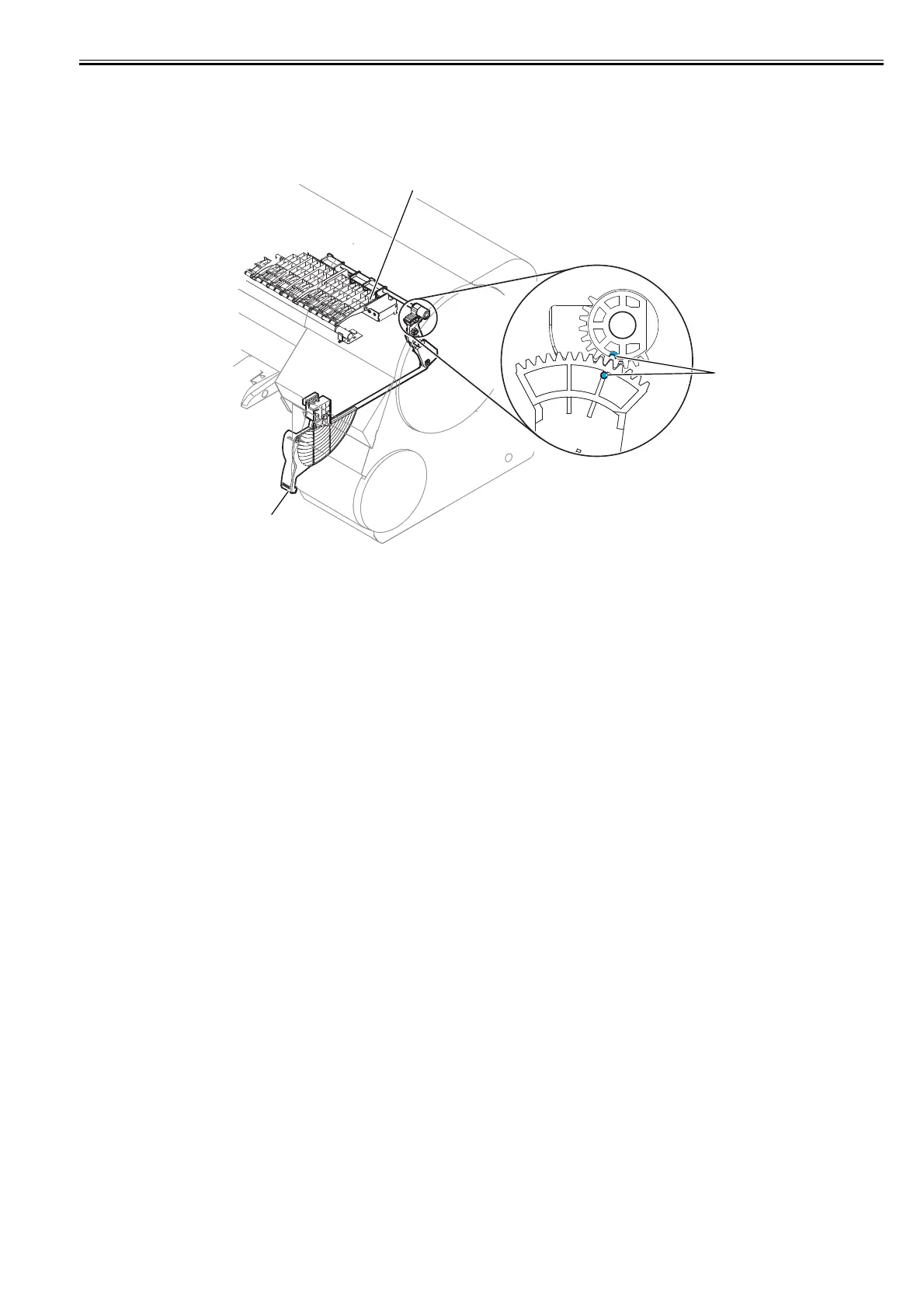

1) To install the release lever, align the gear of the release lever with mark [3] (phase) in the receiving gear.
F-4-23
To Next Page
