Chapter 4
4-34
2. Two feed roller backup [1]/ bushing [2]
3. Feed roller bearing [3]

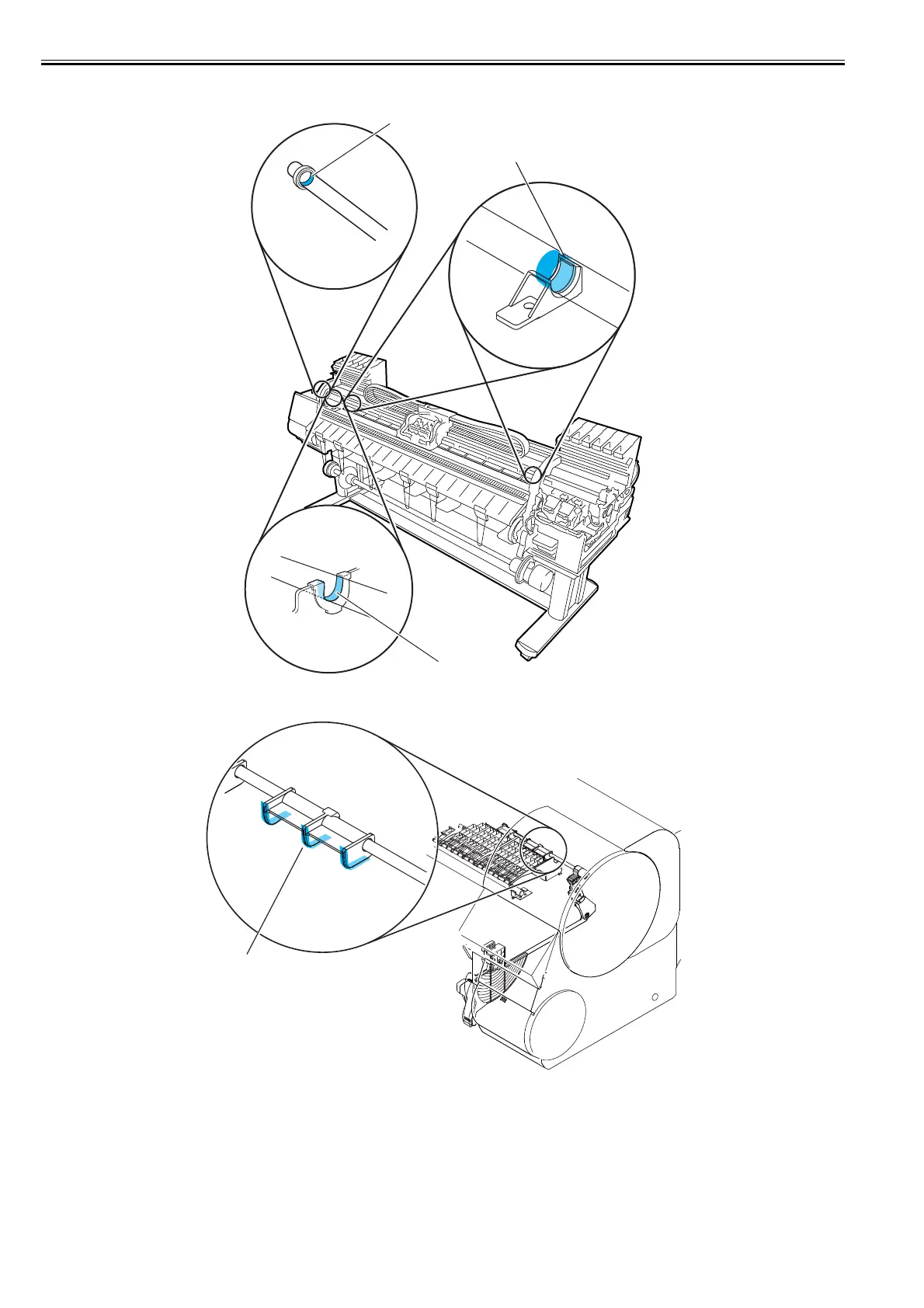

F-4-52
4. Pinch roller release cam [1] three points x 10 parts
F-4-53
[1]
[2]
[3]
[1]
