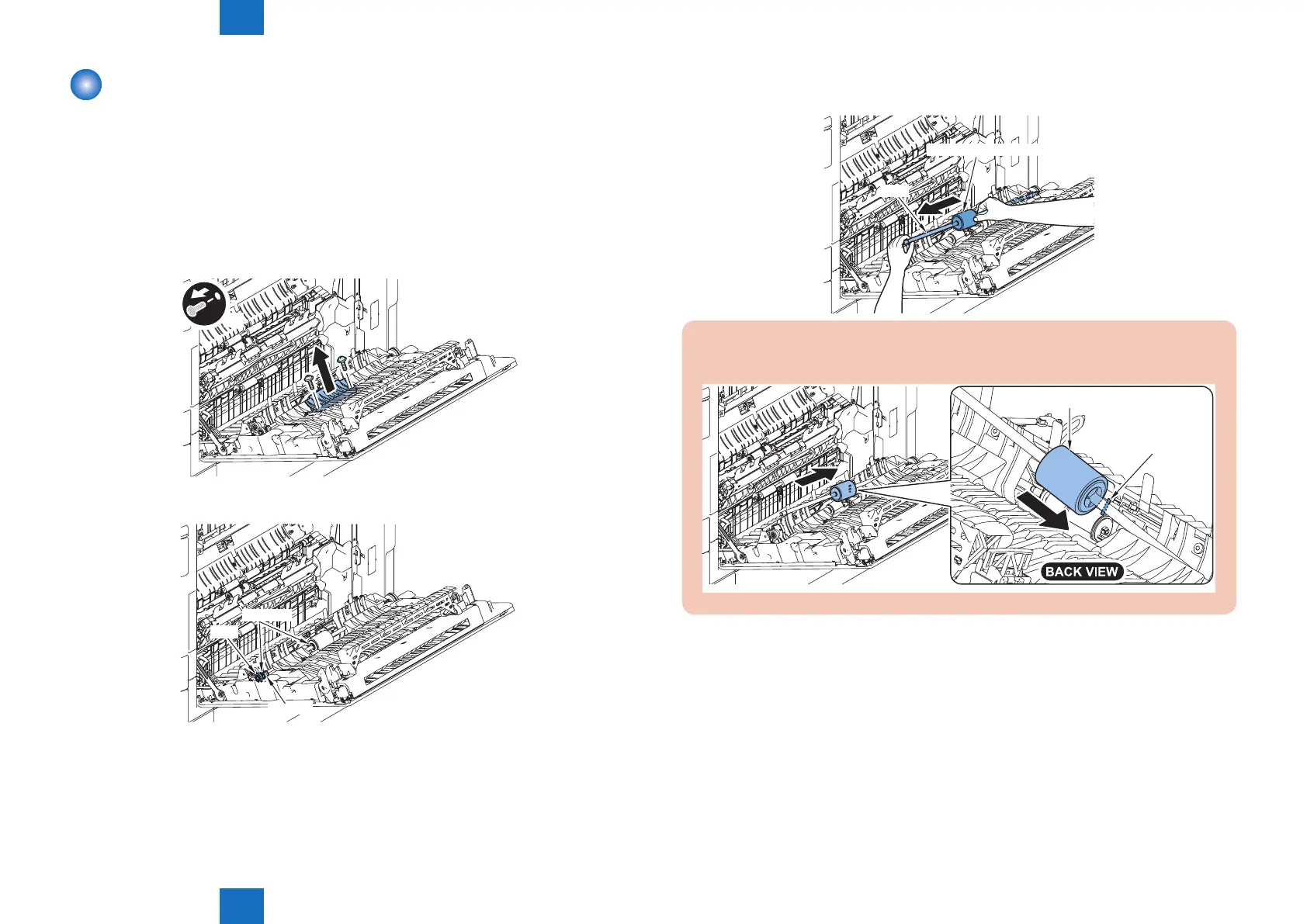

Removing the Multi-purpose Tray Pickup Roller
Before removing the Multi-purpose Tray Pickup Roller
Open the Right Lower Cover and Right Upper Cover
Remove the Duplex Unit
How to remove
1) Remove the Both Angle Guide.
2 screws
x2
2) Remove the gear, 2 stop rings and the bushing.
Gear
Stop rings
Bushing
■
•
•
■
•
F-4-298
F-4-299
3) Tilt the shaft, pull the Multi-purpose Tray Pickup Roller and remove it.
Shaft
Multi-purpose tray pickup roller
Caution:
At installation, be sure to t the Split Pin into the Multi-purpose Tray Pickup Roller.
Split pin
Multi-purpose tray pickup roller
F-4-301
F-4-300

Canon imageRUNNER ADVANCE C5045 Series Specifications

General

Resolution	1200 x 1200 dpi
Paper Capacity (Maximum)	5, 000 sheets
Duplexing	Automatic
Monthly Duty Cycle	Up to 150, 000 pages
Operation Panel	8.4-inch SVGA Full-Color TFT Screen
Scanning Resolution	600 x 600 dpi
Output Paper Capacity (Standard)	250 sheets
Power Consumption (Maximum)	1.5 kW
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	45 ppm (BW/Color)
Connectivity	Ethernet, USB 2.0
Type	Color Laser Multifunction Printer
Functions	Copy, Print, Scan, Send, Store
Hard Disk Drive	160GB
Maximum Copy Reservation	5 jobs
Warm-Up Time	38 seconds
Acceptable Paper Sizes	A3, A4, A5, B4, B5
Acceptable Paper Weights	52-300 gsm
Weight	Approx. 242.5 lbs
Maximum Mailboxes Supported	100 User Inboxes
