Canon iR2016J - Installing the Cassette Heater; 1 Unpacking and Checking the Contents; 2 Preparing the Host Machine

Chapter 1
38
1.7 Installing the Cassette
Heater
1.7.1 Unpacking and
Checking the Contents
0011-3181
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i

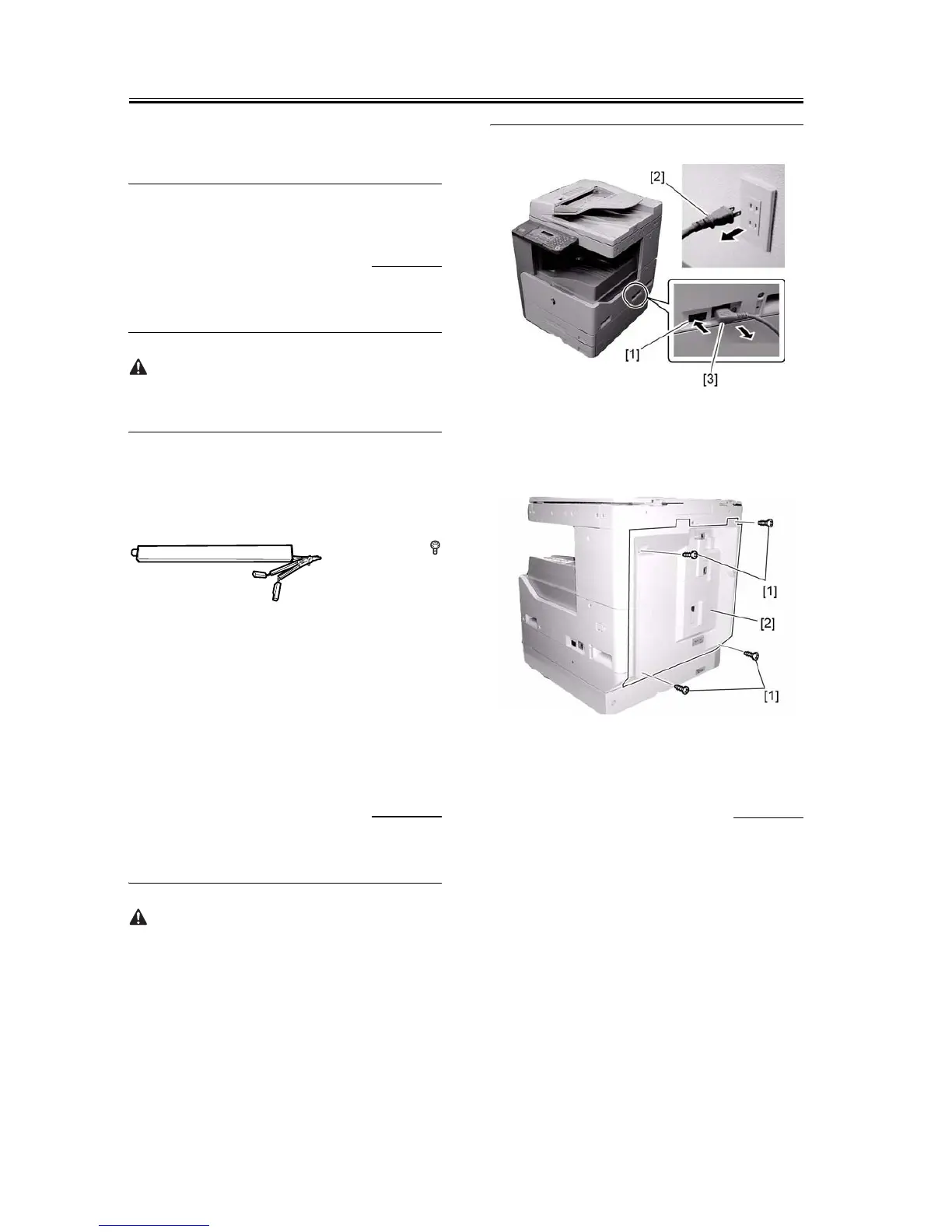

Before installing the cassette heater, make sure the
heater PCB has been installed.
1) Prepare the following parts.
F-1-90
1.7.2 Preparing the Host
Machine
0011-3182
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
Before installing the cassette heater unit 30, make sure
the host machine is turned off. If it is turned on, go
through the following:
1. Turn off the main power switch.
2. Disconnect the power cable (from the power out-
let).
3. Disconnect the power cable.
F-1-91
1) Remove the four screws [1], and then detach the
rear cover [2].
F-1-92
1.7.3 Installing the Cas-
sette Heater
0011-3620
iR2016J / iR2016 / iR2020 / / iR2016i / iR2020i
1) Insert the cassette heater [1] from behind the host
machine.
[1] Cassette heater 1 pc.
[2] P tightening screw (M4x8) 1 pc.
[1] [2]
