(3) Board removal

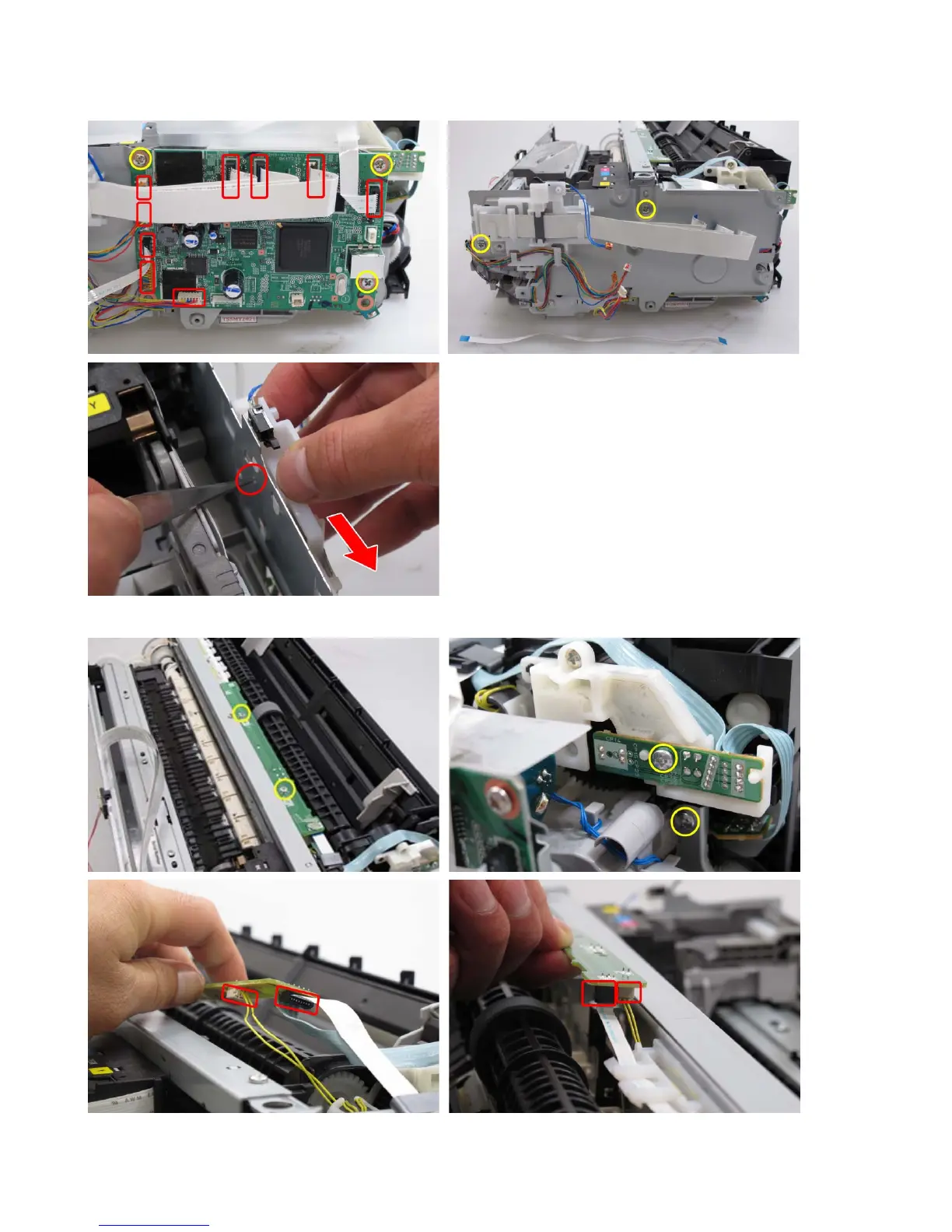

1) Remove the logic board and main PCB chassis (5 screws).
2) Remove the PE sensor board (4 screws).
